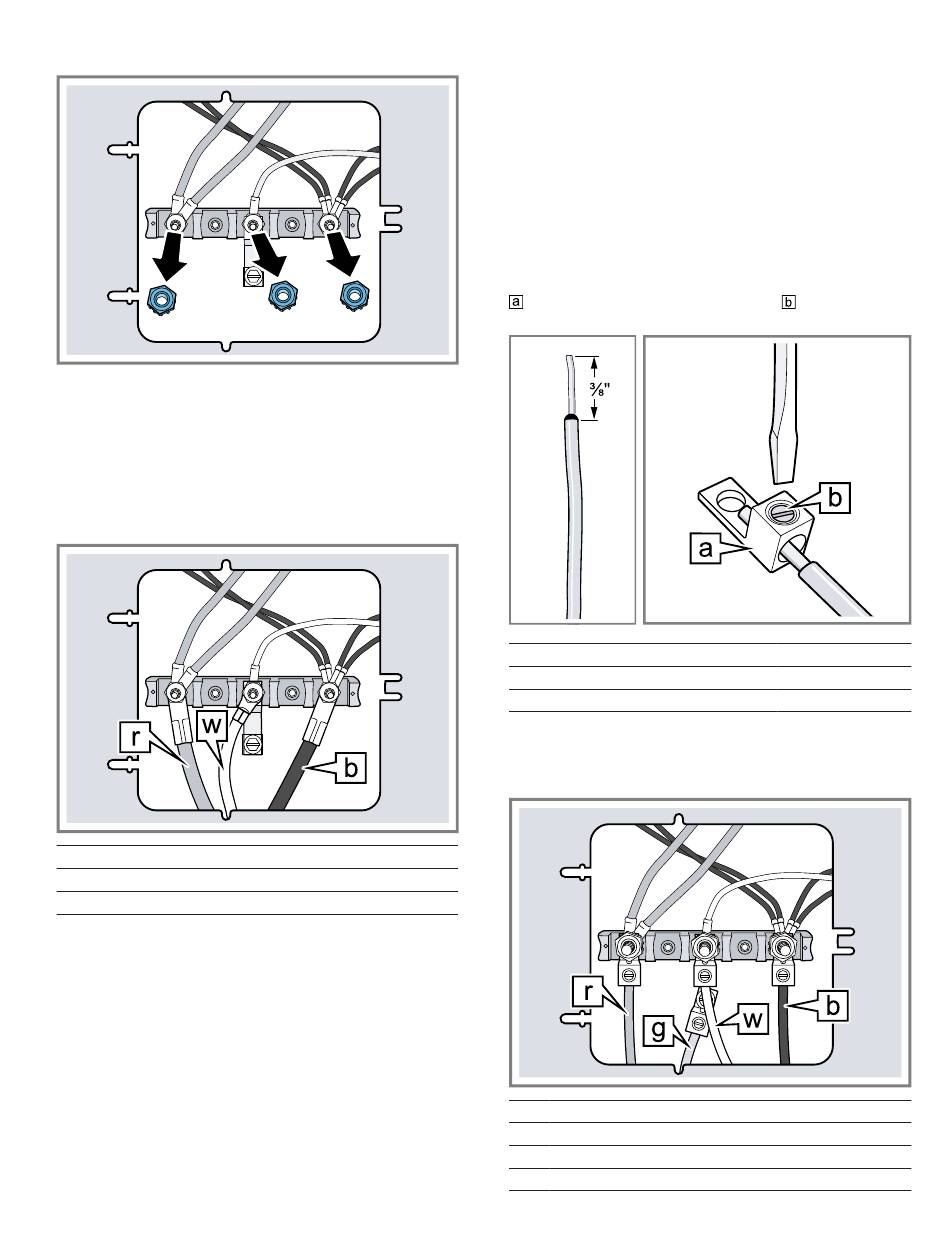

Remove the top nut (has an attached locking washer)
3.
from each terminal post.
Note: DO NOT remove the second nut/washer on each
post. These must stay in place to anchor the internal
wiring attached to the terminal block.
Attach the white wire to the center terminal using one of
4.
the nut/washer parts.
Attach the red wire to the left terminal using one of the
5.
nut/washer parts removed previously.
Attach the black wire to the right terminal using one of
6.
the nut/washer parts.
r Red
w White
b Black
Tighten all connections securely and replace terminal
7.
block cover.
Properly secure strain relief.
8.
→ "Routing the electrical cord", Page 9
Note: DO NOT plug in the range at this time.
6.6 Connecting a flexible conduit connection
The range can also be connected via flexible conduit. If
using this method, always use the lugs supplied. In each
instance where a wire is to be attached to a terminal lug,
perform the following steps.
Note: In Canada, the range is shipped from the factory
with the range cord already installed. Continue to Installing
the range into the cabinets. → Page 12
For installations other than those in Canada, connect the
flexible conduit at the terminal block.
Strip 3/8" (9.5 mm) of insulation from the end of the
1.
wire.
Insert the stripped end of the wire into the terminal lug
2.
. Then tighten each clamping screw
priate torque. See table.
Wire gauge Torque (in/lbs)
6 35
8 25
Installing a four-wire flexible conduit connection
Follow the instructions for installing a four-wire connec-
1.
tion. → Page 10
r Red
w White
g Green
b Black
Electrical connection en-us
with the appro-
Torque (Nm)
3.95
2.82
