Napoleon RP6 Guide Rapide

WARNING
!
• Turn off gas and electrical supply before servicing the appliance.
• Appliance may be hot, do not service until appliance is cool.
• For safe and proper operation of the appliance, follow the venting instructions exactly.
• To avoid danger of suffocation keep the packaging bag away from babies and children. Do not use in cribs, bed,
carriages, or play pens. This bag is not a toy. Knot before throwing away.
Installer: Leave this leaflet with the appliance. Consumer: Retain this leaflet for future reference.
Caution: A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be
You will need:
Drill
Vertical installations may display a very active flame. If this appearance is not desirable, the exhaust outlet may be restricted
with a Wolf Steel approved restrictor kit. This kit is not recommended for short vertical vent runs.
Depending on the model and/or year of your appliance, mounting holes may not exist.
Secure 5" restrictor to mounting plate using 2 screws (supplied).
A.
Remove baffle by removing 1 screw from firebox. Set screw and baffle aside.
B.
Align mounting plate clearance holes (4) over existing screws protruding into firebox. For ease of access,
C.
ensure restrictor and mounting plate are installed with screws installed in Step A facing upwards
(into exhaust collar).
Install 4 self-drilling screws (supplied) (2 per side).
D.
note:
For ease of installation, the mounting plate was designed with 2 fixed holes and 2 slotted holes.
Reinstall baffle using screw removed in step B.
E.
FIREBOX
MOUNTING
TOP
PLATE
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada
All manuals and user guides at all-guides.com

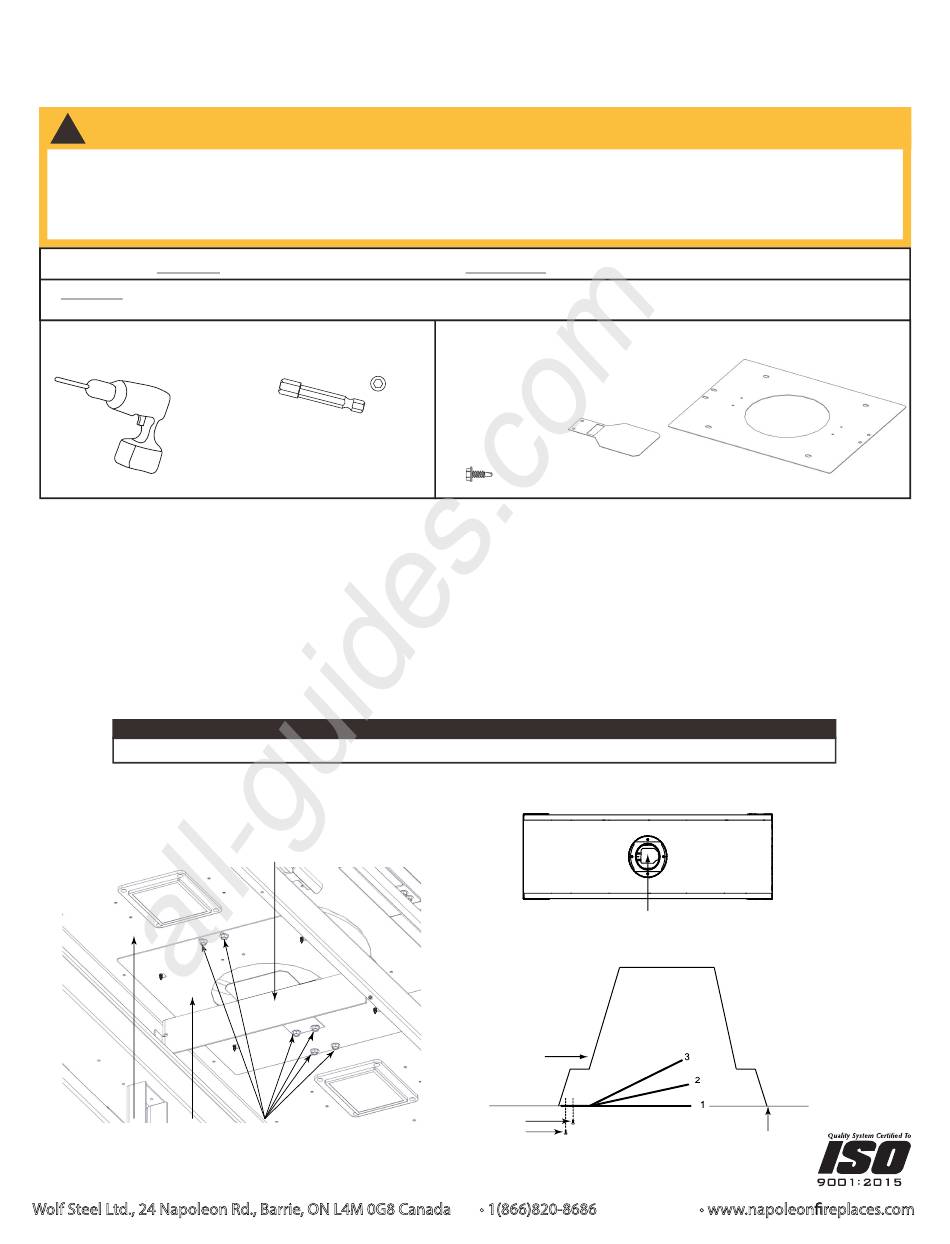

Restrictor Plate Kit
installed. This barrier is not deisgned for prolonged contact.
Hex Bit
BAFFLE
MOUNTING
SCREWS
RP6
Included in this kit:
1 x 5" Restrictor Plate
6 x Mounting
Screws
TOP VIEW
5" RESTRICTOR
TOP VIEW
EXHAUST COLLAR
5" RESTRICTOR
#8 x ½ HEX HEAD
SHEET METAL
SCREWS
1. MOST RESTRICTION
2. MODERATE RESTRICTION
3. LEAST RESTRICTION
• 1(866)820-8686
1 x Mounting Plate
FIREBOX TOP
W415-1792 / 11.24.17
• www.napoleon replaces.com
