Connecting a satellite tuner,
CATV system

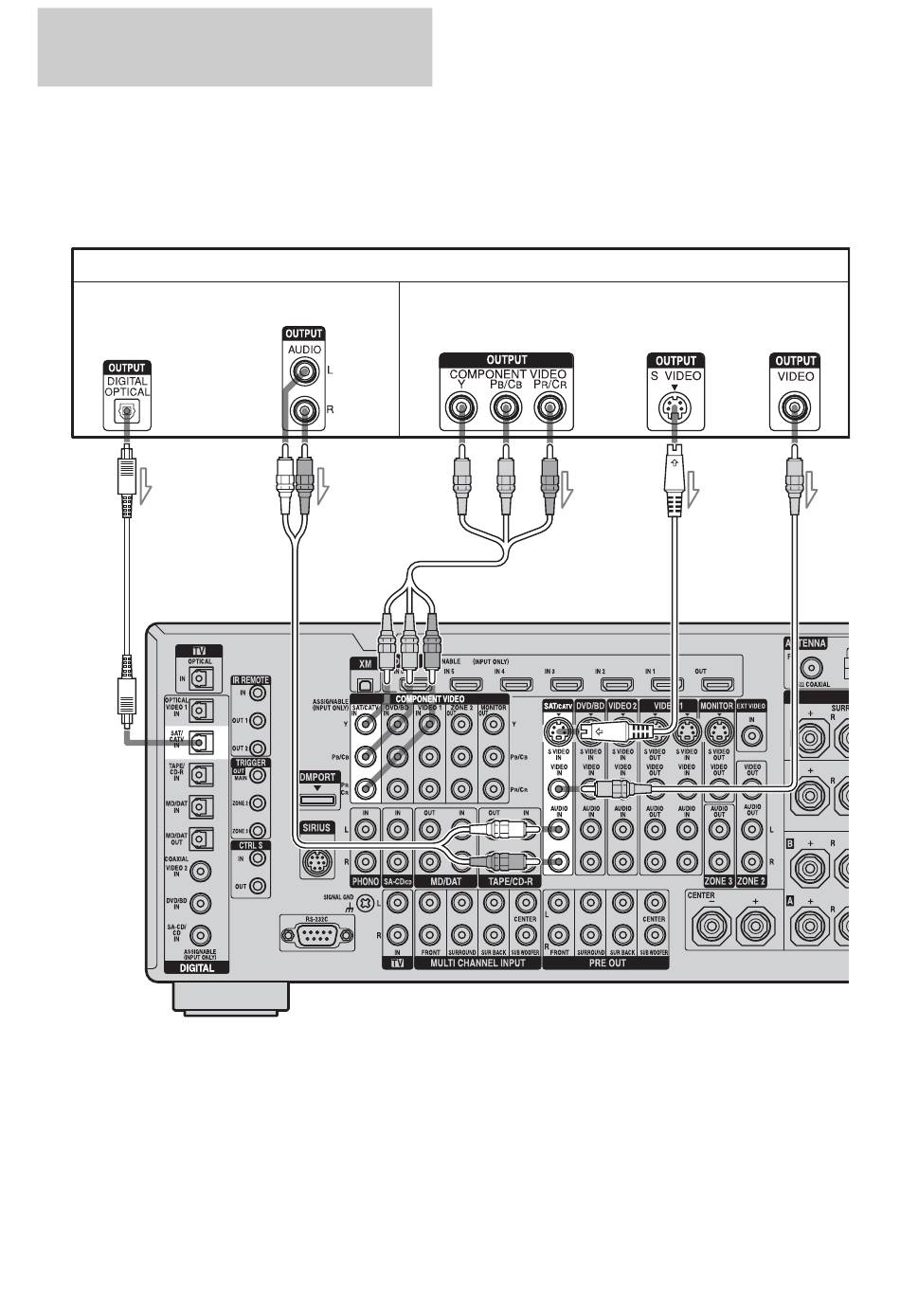

The following illustration shows how to
connect a satellite tuner, CATV system.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Audio signals
A
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Component video cord (not supplied)
D S video cord (not supplied)
E Video cord (not supplied)
Note
Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
32
GB
Satellite tuner, CATV system
Video signals
B
C
D
E
