Locating with Passive Frequencies
Passive frequency detection takes advantage of signals that are already present on buried
metallic conductors. The RD8100 supports four types of passive frequencies: Power,
Radio, CPS* and Cable TV (CATV)* signals. You can detect these frequencies without
the aid of the transmitter.
*Model specific.
Power Filters
RD8100 locators allows operators to take advantage of the harmonic signals
found on power networks. Once in Power Mode, press the
Radiodetection's sensitive Power Mode and scroll through five individual Power Filters.
This enables operators to establish if a single large power signal comes from one source
or from the presence of multiple cables. The different harmonic characteristics of the
detected lines can then be used to trace and mark their route.
Additionally the use of an individual harmonic can allow you to locate power lines in
situations where the total signal would otherwise be too large.

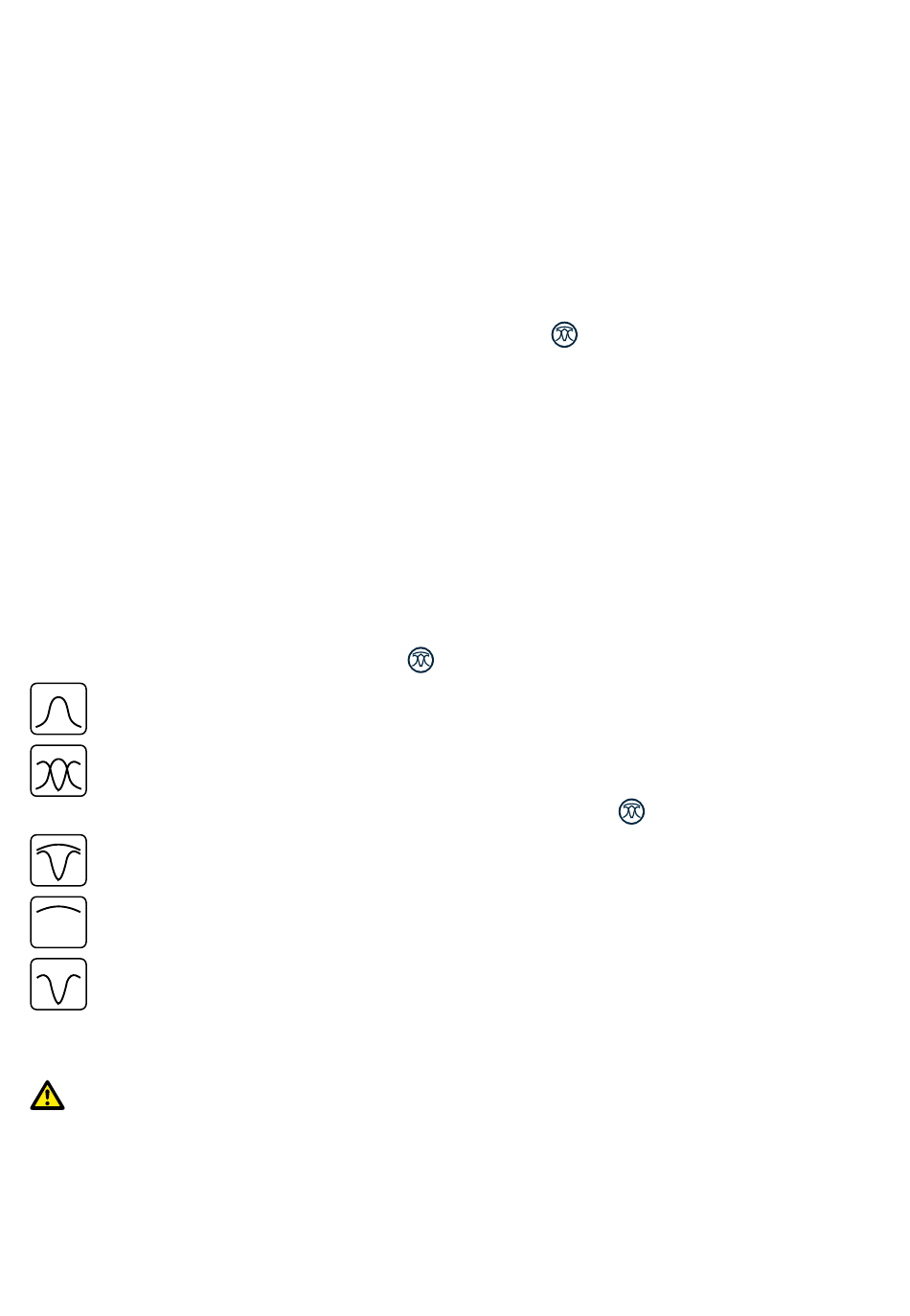

Locate Modes
The RD8100 offers a choice of 5 locate modes, each of which is designed for specific
uses, depending on what task is being carried out.
To scroll between locate modes, press the
PEAK: For accurate locating, the peak bargraph provides a visual readout of the
signal strength. The peak signal is found directly over the buried utility.
PEAK+: Choose to combine the accuracy of the Peak bargraph with Null arrows,
which can indicate the presence of distortion, or with proportional Guidance
arrows for rapid line tracing – switch between them by holding the
GUIDANCE: Proportional arrows and a ballistic 'needle' combine with audio left/
right indication for rapidly tracing the general path of a buried utility.
BROAD PEAK: Operating similarly to Peak mode, but giving a result over a wider
area. Used to detect and trace very weak signals, for example very deep utilities.
NULL: Provides a quick left/right indication of the path of a utility. As Null is
susceptible to interference, it is best used in areas where no other utilities are present.
Depth, current and compass readouts
WARNING! Never use the depth measurement readout as a guide for
mechanical or other digging activity. Always follow safe digging guidelines.
The RD8100 locator can measure and display the utility depth, locate signal current and
the relative orientation of the cable or pipe to the locator. This helps you to make sure that
you are following the right cable or pipe, especially when other utilities are present.
key to switch out of
key.
16
key.
