10.
Slide the 2 cut vertical adaptors down the post to
the mid rail.
11.
Slide decorative screen panel into vertical post
adaptors and seat it into the horizontal adaptor in
the mid rail.
12.
Install top rail on top of the decorative screen
panel, pre-drill with a
three rails into place (Fig. 8). Screws should be
2" apart from each other with bottom screw
attached about
NOTE:
Screw all three rails into place at both ends
of the rail through both posts. This is done
by securing two screws through the mid rail
and two screws in the top rail at each end
(Fig. 19).
13.
Remove spacer blocks.
14.
Use remaining screws to fasten decorative
screen panel infill to posts. 3 screws minimum
per post should be used to attach the decorative
screen panel. Screws should be evenly
distributed between top and bottom sections of
the rail and used on each end of the boards and
panel. Screws should be positioned to intersect
the decorative screen panel at a point where
material is present not a void from the pattern of
the panel (Fig. 10).
15.
Complete your install by installing post screw
cover, post caps and trim rings. These steps
are detailed in the instructions included with the
privacy railing.
⁄ " drill bit, and screw all
1
8
⁄ " above the bottom of the rail.
3
4
Top Rail Top Rail Mid Rail Mid Rail
3/4"
2"
Distribute screws evenly

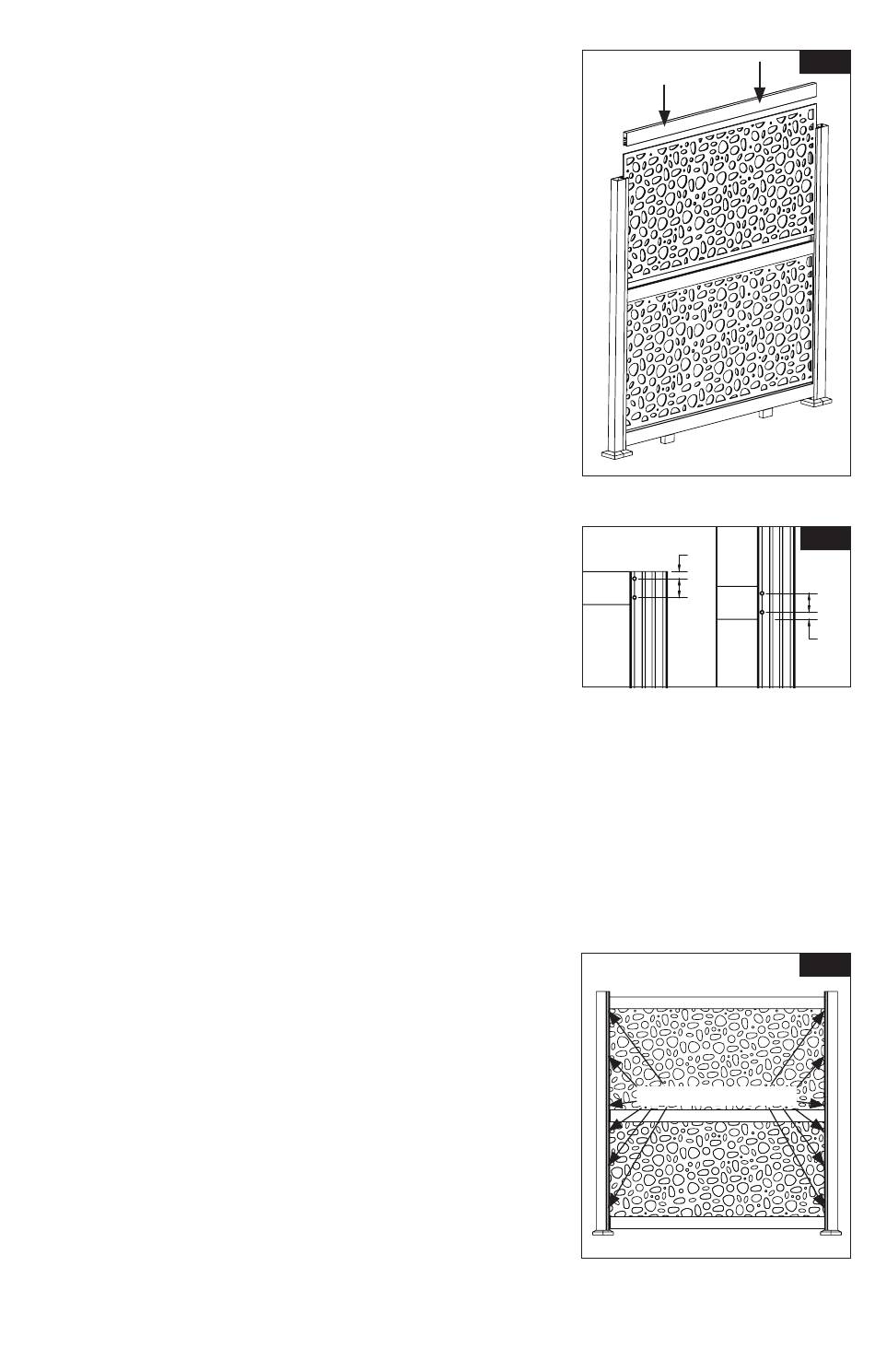

Fig. 8
