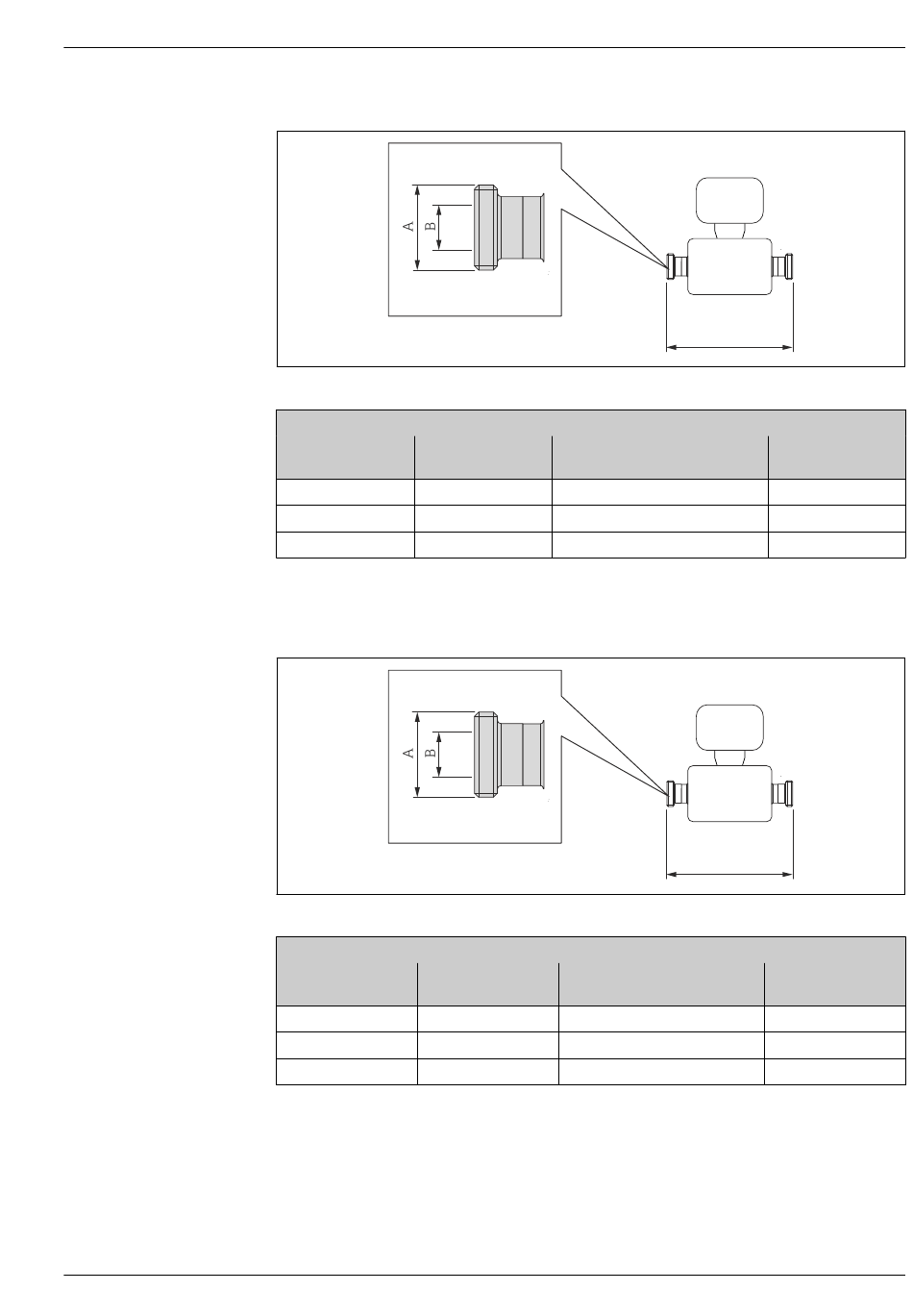

Raccord hygiénique DIN 11851
Raccord hygiénique DIN 11851: 1.4404 (316L)
DN
[mm]
8
15
25
1) version 3A disponible (Ra ≤ 0.8 µm/150 grit)
DIN 11864-1 forme A (raccord fileté hygiénique)
Raccord hygiénique DIN 11864-1 Form A: 1.4404 (316L)
DN
[mm]
8
15
25
1) version 3A disponible (Ra ≤ 0.8 µm/150 grit)
1)
L
[mm]
229 Rd 34 × 1/8"
273 Rd 34 × 1/8"
324 Rd 52 × 1/6"
1)
L
[mm]
229 Rd 28 × 1/8"
273 Rd 34 × 1/8"
324 Rd 52 × 1/6"
+1,5 (+0.06)
L
-2,0 (-0.08)
A
[mm]
+1,5 (+0.06)
L -2,0 (-0.08)
A
[mm]
A0015628
B
[mm]
16
16
26
A0015628
B
[mm]
10
16
26
