Makita DUH551 Manuel D'instruction page 6

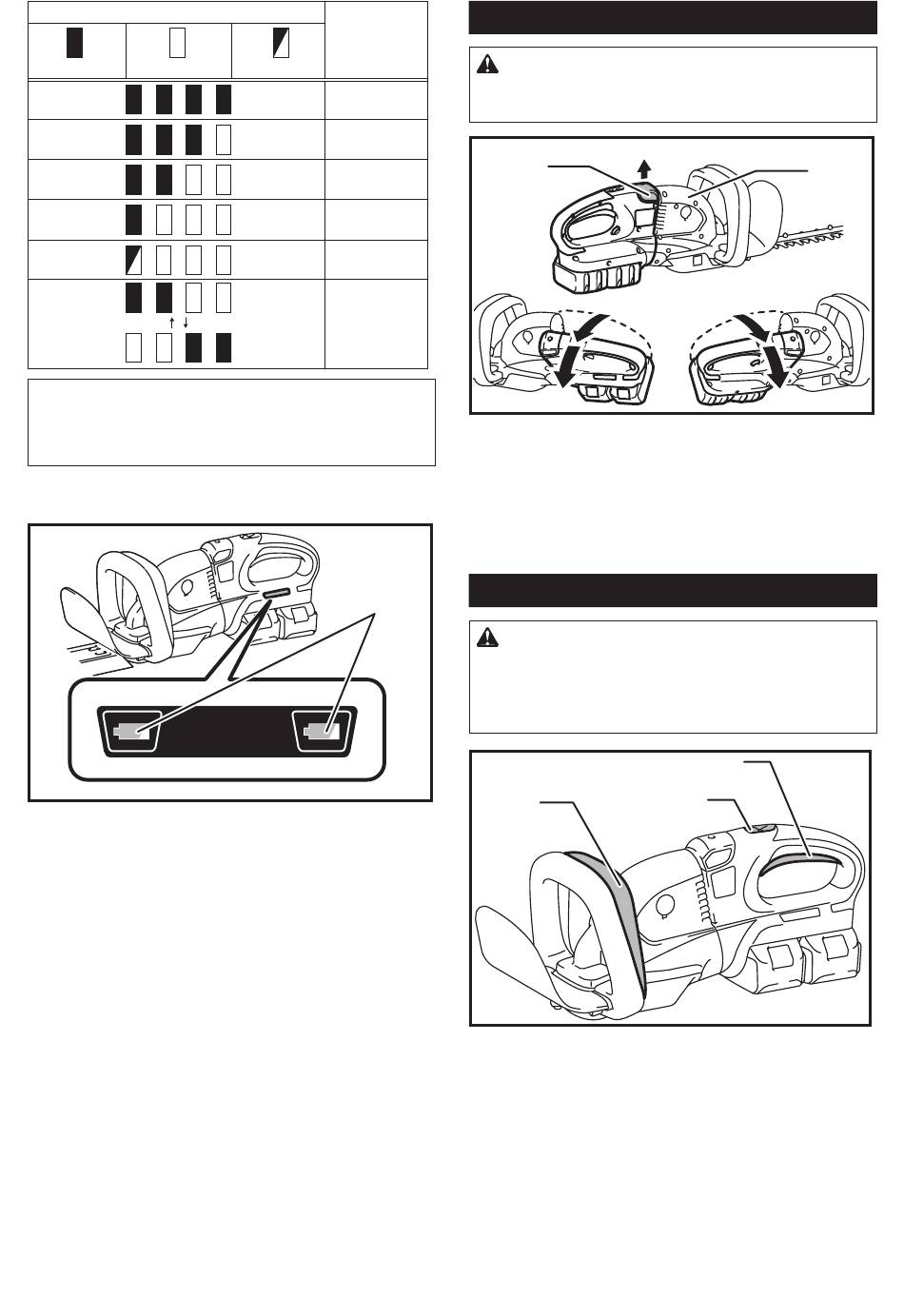

Indicator lamps
Lighted Off
NOTE:
• Depending on the conditions of use and the
ambient temperature, the indication may differ
slightly from the actual capacity.
Overdischarge protection
► 1. Battery indicator
When the remaining battery capacity gets low, the
battery indicator blinks on the applicable battery side.
By further use, the tool stops and the battery indicator
lights up about 10 seconds. In this situation, charge the
battery cartridge.
Remaining
capacity
Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
1
Handle mounting positions
CAUTION:
• Always make sure that the handle is locked in
the desired position before operation.
1
► 1. Knob 2. Housing
Depending on the operations, you can set the angle of
the handle either 45°or 90°position on left or right. To
turn the handle, pull the knob and turn the handle as
shown in the figure. The handle is locked in 45°position.
To turn the handle to 90°position, pull the knob again
and turn the handle more.
Switch action
CAUTION:
• Before inserting the battery cartridge into the
tool, always check to see that the switch trigger
actuates properly and returns to the "OFF"
position when released.
1
► 1. Switch trigger B 2. Switch trigger A 3. Lock-off
button
For your safety, this tool has a dual switching system.
To turn on the tool, press the lock-off button and press
the switch trigger A and B. To turn off the switch, release
either one of the switch triggers. The tool only starts
when pulling the both switch triggers.
6 ENGLISH
2
2
3
