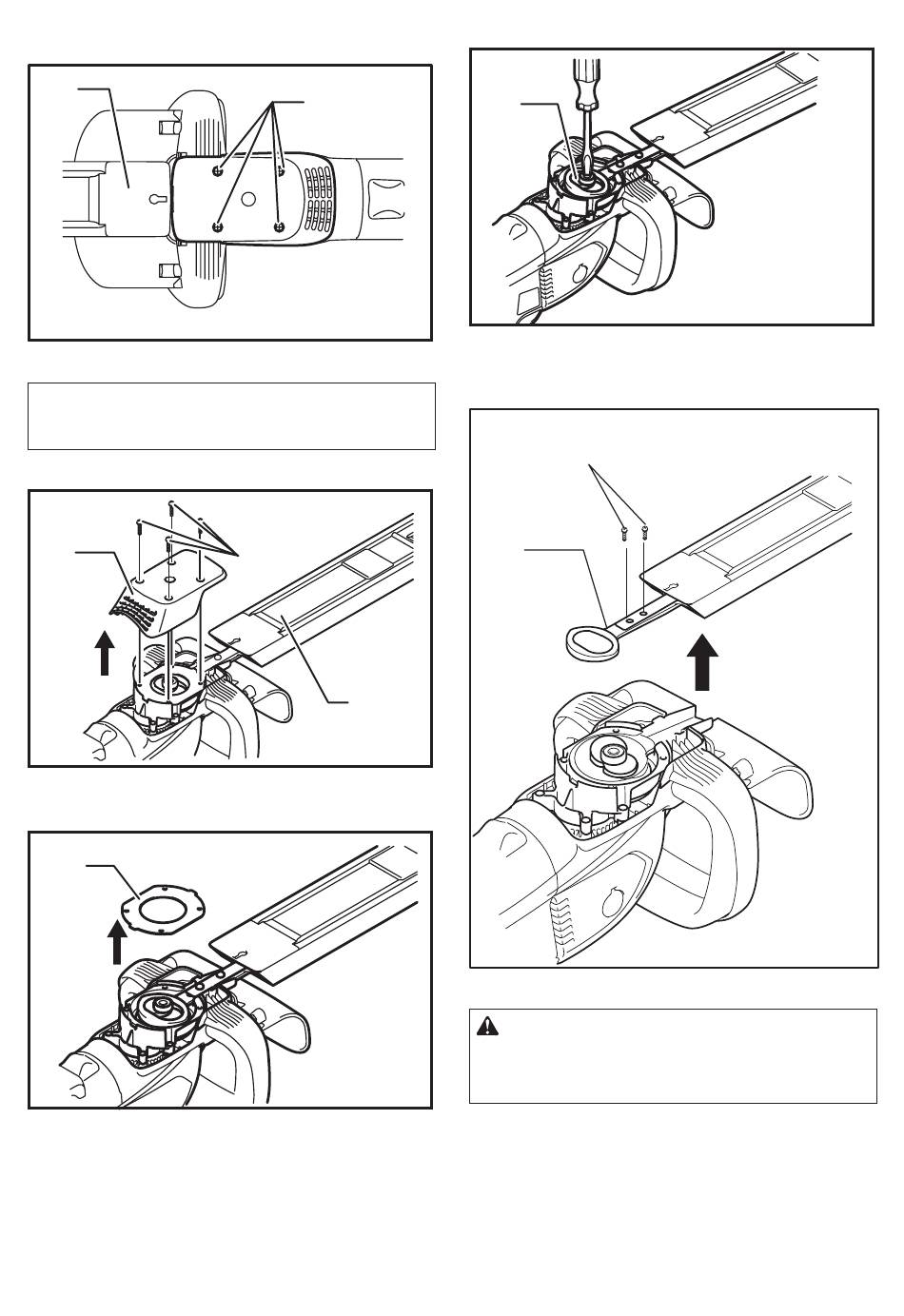

Removing the shear blades
Reverse the tool and loosen four screws.
1
► 1. Blade cover 2. Screws
NOTE:
• Be careful not to get your hands dirty as grease
is applied in the shear blade driving area.
Remove the under cover.
1
► 1. Under cover 2. Blade cover 3. Screws
Remove the plate.
1
► 1. Plate
2
3
2
Set the crank at the angle as shown in the figure with a
slotted screwdriver.
1
► 1. Crank
Remove two screws from the shear blades and the
shear blade unit will be taken out.
1
2
► 1. Screws 2. Shear blade
CAUTION:
• Return the gear to the original position in such
a manner as it was installed if it should be taken
away by mistake.
