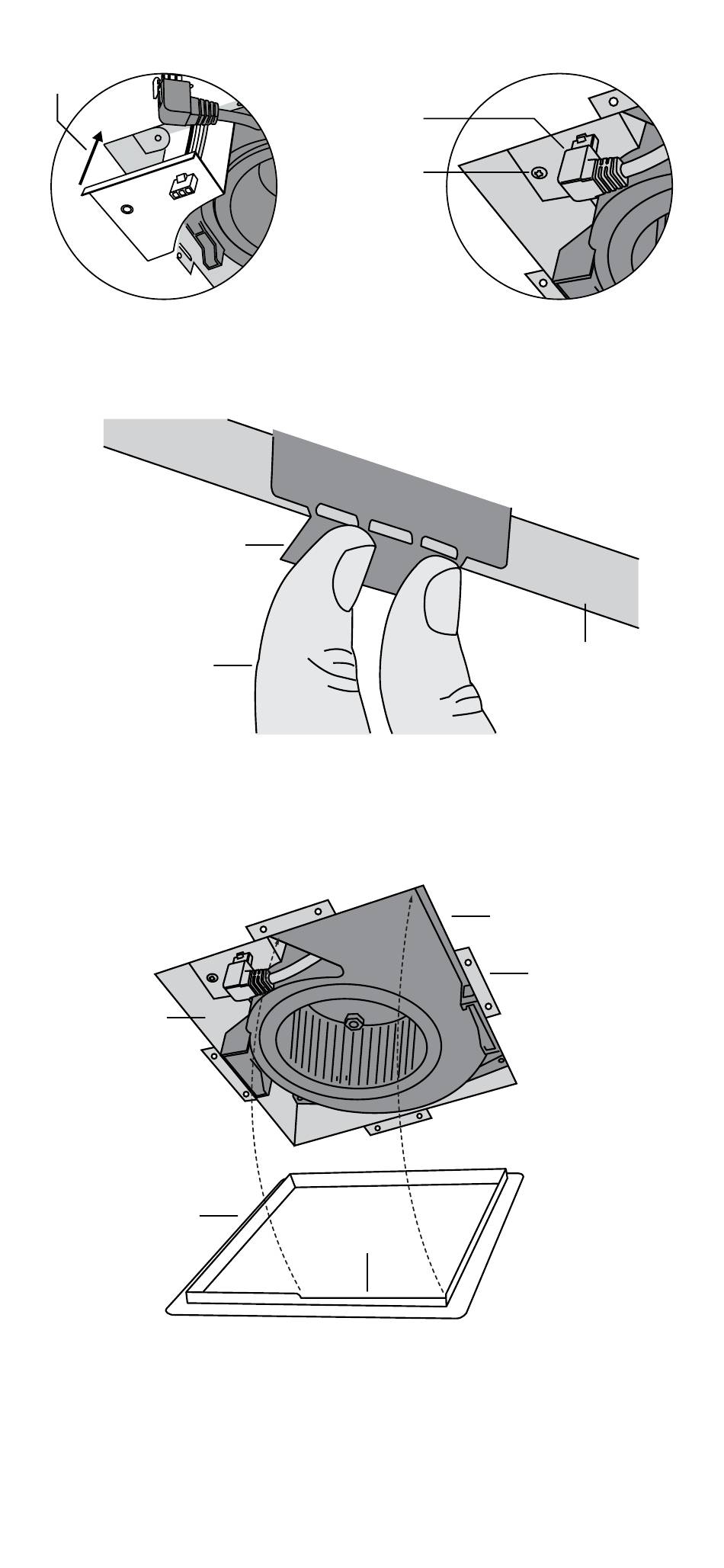

11.) Once connected, reattach the electrical enclosure.
slide
12.) Press and bend the final securing tabs flat against ceiling to lock the FAN in
place.
final securing tabs
apply even
pressure to
each side of
securing tab
13.) Align TRIM RING notch to vent (DAMPER) position. Attach TRIM RING to
FAN. TRIM RING attaches to FAN body and clicks into place when secure.
FAN
TRIM RING
plug in fan
connector
reattach set
screw
notch
12
sheetrock
(ceiling)
ceiling
final securing tabs
