Important Notes for Gas Connection:
The appliance and its individual gas shutoff valve must
▯
be disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 1/2 psi (3.5kPa).
The appliance must be isolated from the gas supply
▯
piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psi (3.5kPa).
Connect Electrical Supply
Before connecting the 40" (1 m) supply cord to a wall
receptacle, make certain that gas shut-off valve and all
burner controls are in OFF position.
Burner Cap and Burner Base Placement
The burner parts must be properly placed for the
cooktop to function properly. If the burner parts are not
properly placed, one or more of the following may occur:
Burner flames are too high.
▯
Flames shoot out of burners.
▯
Burners do not ignite.
▯
Burner flames light unevenly.
▯
Burner emits gas odor.
▯

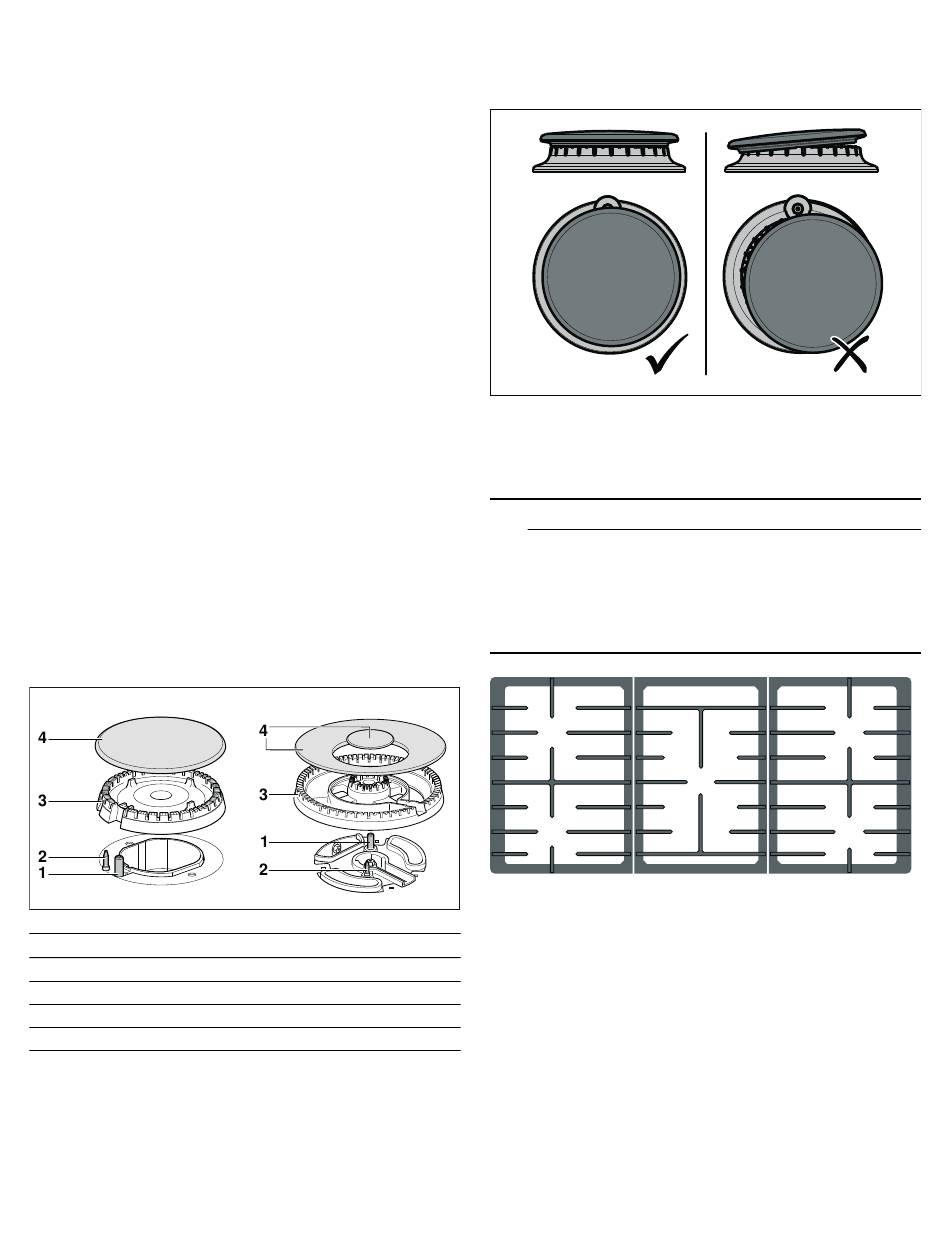

Placing Burner Parts
After electrical connection is complete, assemble the
burner parts correctly and evenly. When assembling the
burner parts, make sure that the burner head is placed
on the base in such a way that the prongs of the burner
cap fit snugly into the groove of the burner base.
Parts
1
Igniter
2
Thermocouple
3
Burner base
4
Burner cap
10
Checking Burner Cap Placement
Check to make sure that there is no gap between the
burner parts. You may gently try to move the burner parts
from side to side to check if they are properly placed.
Install Burner Grates
Properly position and install each burner grate as shown
in the illustration below.
WARNING
9
To prevent flare-ups, properly support pots and
avoid spills, all grates must be properly positioned
on the cooktop whenever the cooktop is in use.
Each of the four feet must be placed into the
corresponding dimples in the cooktop. Do not use a
grate if the rubber feet are missing or damaged.
Check the Installation
Place each correct sized burner cap in its seated,
notched position and check the operation of the electric
igniters. Check flame characteristics. Flame should be
blue with a minimal yellow tip on the outer cone of the
flames.
