HANGING THE FAN

REMEMBER to turn off the power before you begin. To properly install your ceiling
fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the canopy by turning
the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by removing (and
save one of the two screws. Loosen the remaining screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the screws and
washers included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the downrod assembly by loosening the set
screw, unscrewing and removing the cross pin and unscrewing the ball off the rod.
(Fig.7)

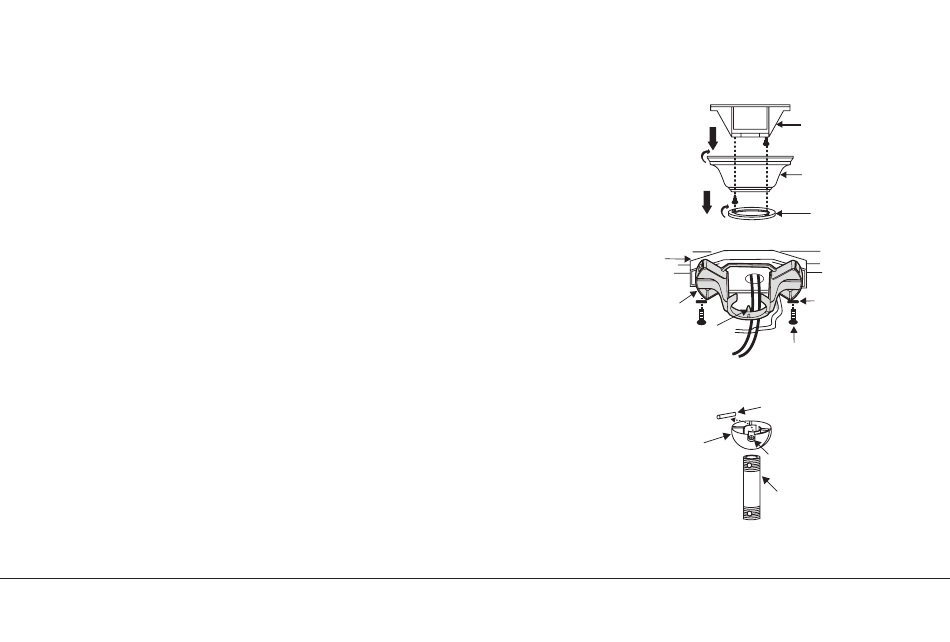

Fig. 5
CUL Listed
outlet box
Ceiling
mounting
bracket
Hook
Mounting screws
(supplied with electrical box)
120V Wires
Fig. 6
Cross pin
Hanger ball
Set screw
Downrod
Fig. 7
52" Terra Select |
Hanger bracket
Ceiling canopy
Canopy cover
