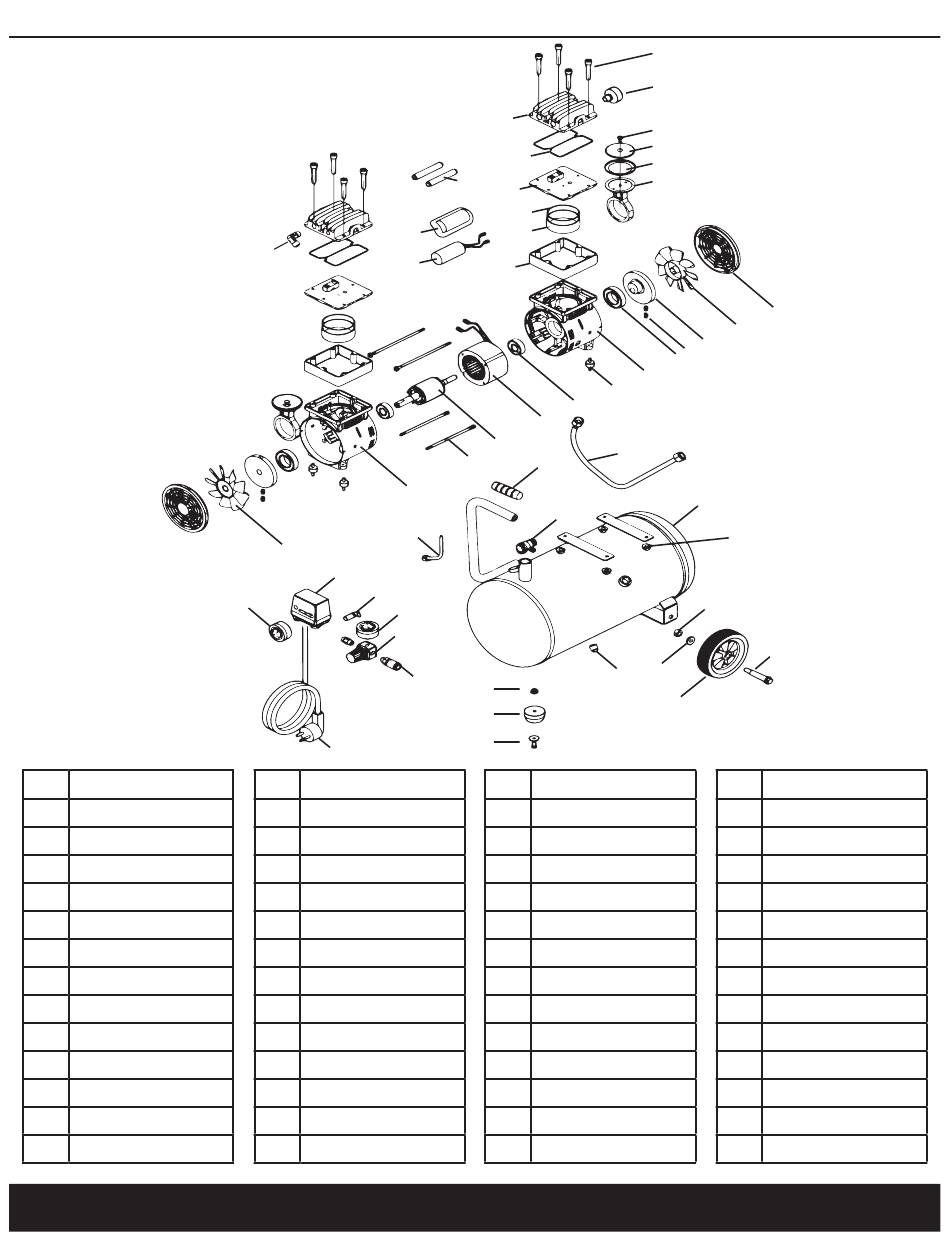

Air Compressor Components - Iwata WORKSHOP IWC28S Mode D'emploi

NO. PART
1 Head Screw
2 Air Filter
3 Cylinder Head
4 Head Gasket
5 Valve Plate
6 Cylinder Gasket
7 Cylinder
8 Housing
9 Bearing
10 Screw
11 Crank
12 Fan
13 Fan Cover
Customer Support 503-253-7308 M-F, 8am-4:30pm PST | iwata.support@iwata-medea.com | www.iwata-airbrush.com/blog/contact-us
26
28
25
23
38
24
30
31
36
33
34
37
NO. PART
14 Piston
15 Piston Seal
16 Retainer
17 Retainer Screw
18 Motor Mount
19 Bearing
20 Stator
21 Rotor
22 Housing Screw
23 Housing
24 Fan
25 Capacitor
26 Capacitor Cover
www.iwata-airbrush.com
3
4
27
5
6
7
29
19
20
21
22
40
39
35
49
50
51
NO. PART
27 Connecting Rod
28 Elbow
29 Adjustment Stent
30 Pressure Switch
31 Safety Valve
32 Connector
33 Gauge
34 Regulator
35 Quick Connector
36 Gauge
37 Power Cord
38 Exhaust Hose
39 Check Valve
Quiet Oil-Free Air Compressor
1
2
17
16
15
14
13
12
11
9 10
8
18
41
42
43
44
47
45
48
46
NO. PART
40 Handle
41 Hose
42 8 Gallon Tank
43 Motor Mount Washer
44 Nut
45 Washer
46 Wheel
47 Bolt
48 Drain Valve
49 Nut
50 Cushion Foot
51 Bolt
7
