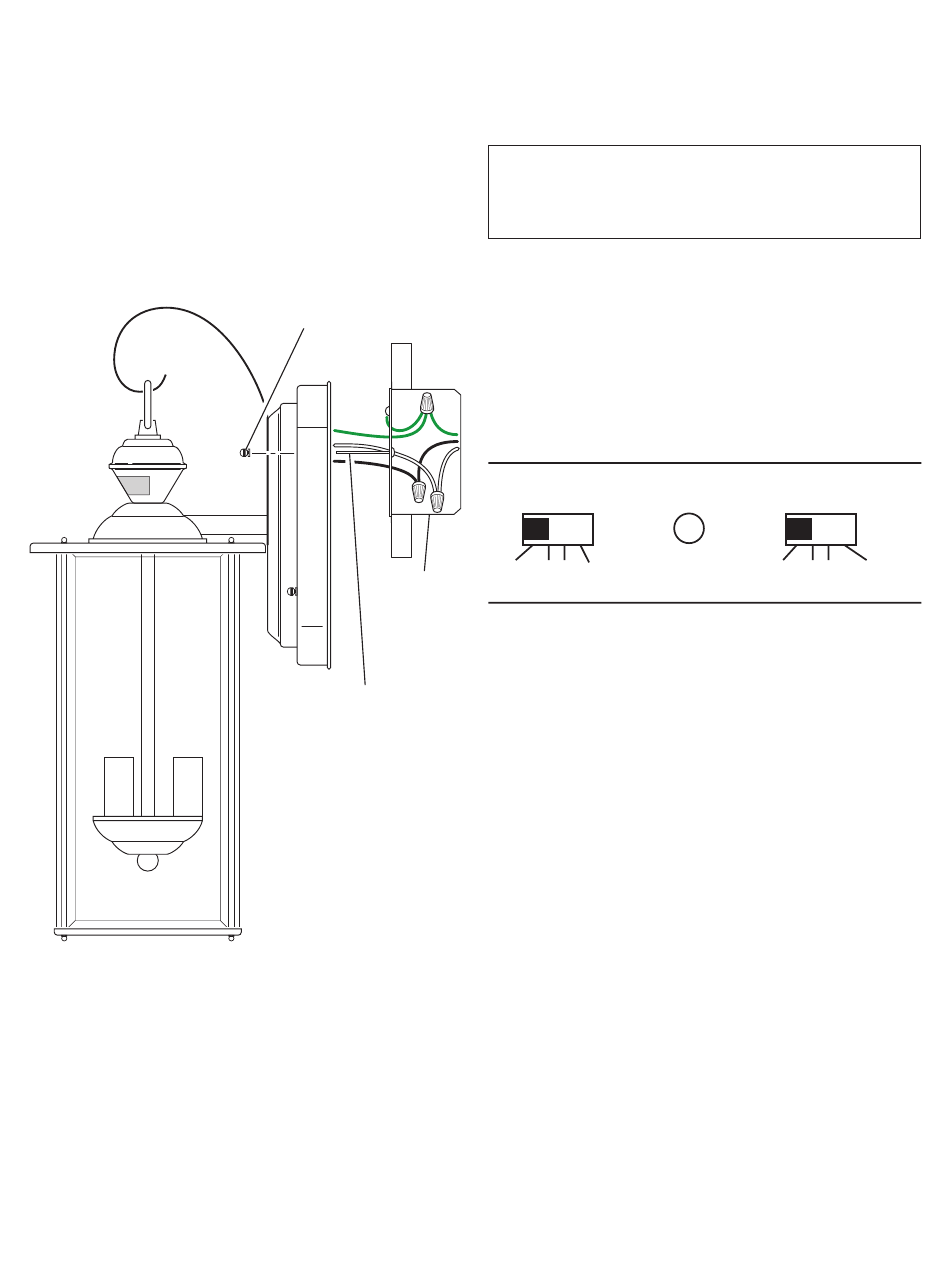

FinaL assemBLy

1. Push the wires into the junction box. Make
sure the wires from the fixture go through the
wire path, and no wires get pinched.
2. Slide the fixture assembly onto the mounting
screws. Tighten decorative nuts removed in step
1 of Installation section securely against fixture
base.
3. Install three candelabra based bulbs (60 Watt
maximum each).
4. Caulk around fixture base with silicone weather
sealant after all Testing and Adjustments are
complete.
200472-01
Decorative Nut
Junction
Box
Mounting Screw

testinG anD aDjustments

1. Turn on the circuit breaker and light
switch.
Note: Sensor has a 1
before it will detect motion. When first turned
on wait 1 / minutes.
1
2
Note: Meets the ENERGY STAR® guidelines
when DualBrite® function is off.
2. Set:
• ON-TIME switch to TEST
• DualBrite® switch to OFF
• SENSITIVITY dial to Midway
TEST 1 5 10
MINUTE
3. Walk through the coverage area noting where
you are when the lights turn on. In TEST mode,
light will stay on for 5 seconds after sensing
motion and then turn off.
5
/ minute warm up period
1
2
OFF 3 6 DUSK TO
HOUR DAWN
