TANK AND VACUUM GRID WITH FLOAT CLEANING, AND COVER GASKET CHECK

1. Drive the machine to the appointed disposal area.
2. (Only for RAZOR 20T): Turn the ignition key (80) to "0".
(Only for RAZOR 20): Press the switch (71) and/or (73) to turn the machine off.

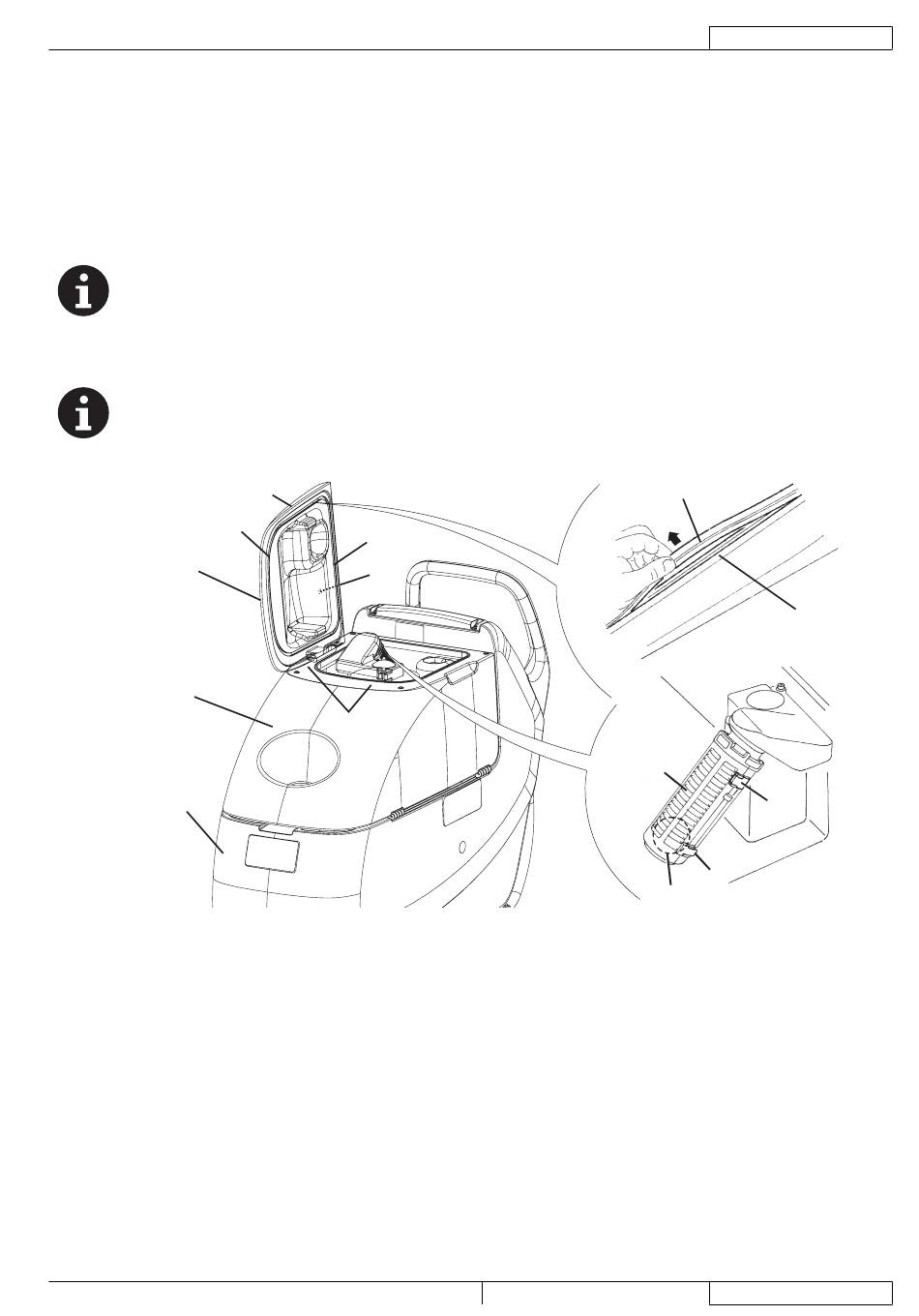

3. Open the cover (A, Fig. 5) to washing position (L).
4. Wash with clean water the cover (A), the tanks (B and C) and the vacuum grid with automatic shut-off fl oat (D).
Drain the water from the tanks with the hoses (16 and 17).
5. If necessary, release the retainers (E) and open the grid (D), recover the fl oat (F), clean all the components and then reinstall
them.
6. Check the tank cover gasket (G) for integrity.
NOTE
The gasket (G) creates vacuum in the tank that is necessary for vacuuming the recovery water.
If necessary replace the gasket (G) by removing it from its housing (H). When assembling the new gasket, install the joint (I) in
the rear central area, as shown in the fi gure.
7. Check that the bearing surface (J) of the gasket (G) is integral and adequate for the gasket itself.
NOTE
The hole (K), allowing to compensate the air in the cover interspaces, contributes to create vacuum in the tank.
8.
Close the cover (A).
