6. Mini Matic boiler design
38

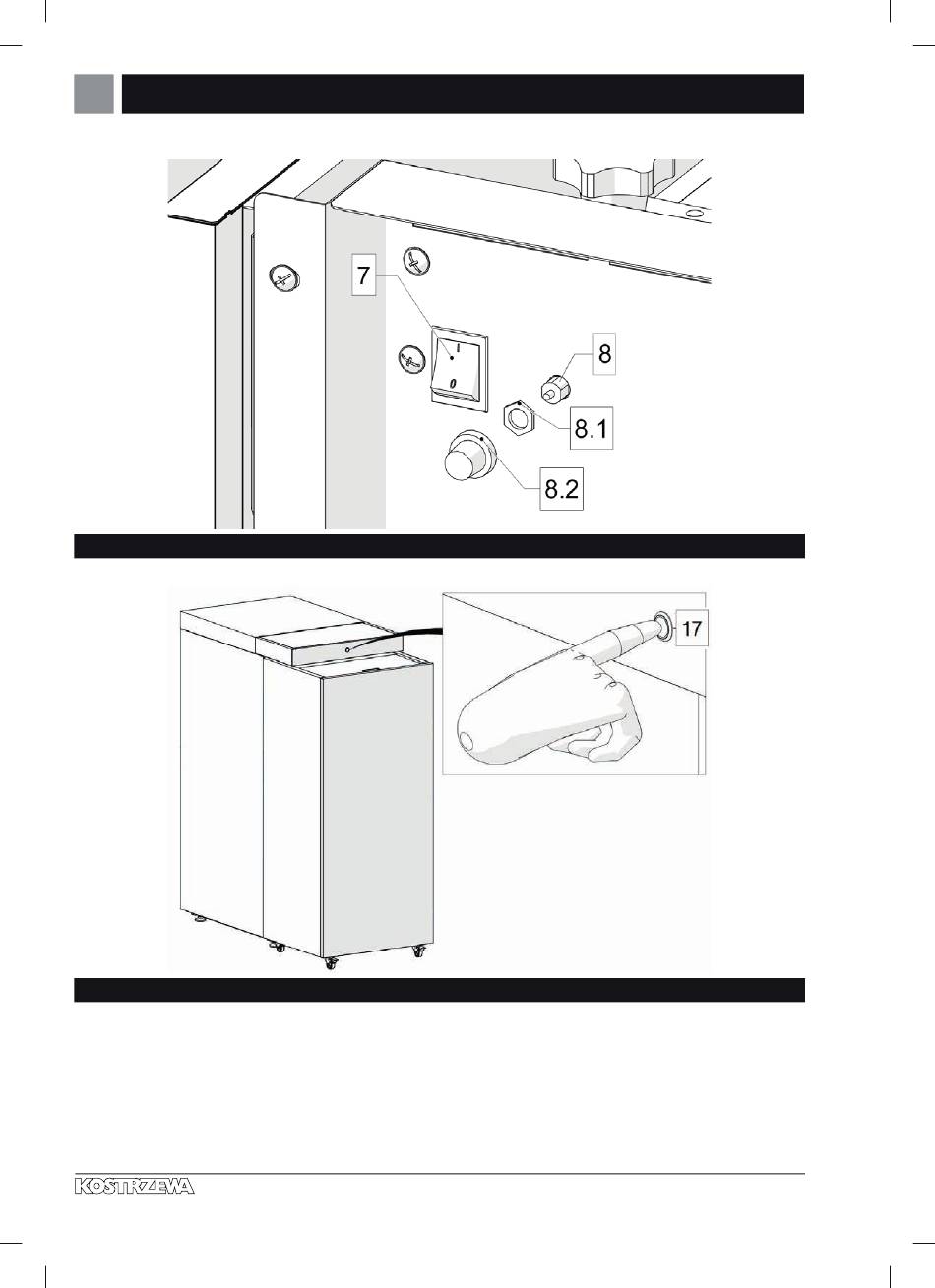

Fig. General view
Fig. Control system push-button
1. Fuel level sensor
2. Storage bin
3. Flexible duct
4. Feeder
5. Burner
6. Ash bag
7. Main switch
Heating and ventilation
8. STB
8.1- STB nut
8.2- Cover
9. Oxygen sensor
10. Flue gas temperature sensor
11. Exhaust fan
12. Storage bin cover
13. Control system
14. Top boiler cover
15. STB sensor
16. Boiler temperature sensor
17. Control system push-button
