BS 400P
Wear dust
Wear ear muffs!
protection!
Important
General danger!
advice!
1.
Technical data and accessory
1.1
Technical data of the machine
Type
Max. cutting depth
Max. cutting length
Blade shaft size
Max. blade-Ø
Engine
Speed
Water supply tank
Dimensions
(LxBxH)
Dimensions
(LxBxH) leg folded
Weight
Sound power level
after ISO EN 3744
Sound pressure
level after ISO EN
11201
Vibration
1.2
Provided accessory
Operating instruction
Spare parts list
For the item number of accessories, please refer to the
current catalogue of GÖLZ
If accessories are used which do not correspond to
®
GÖLZ
specifications, no liability is assumed for any
damage resulting hereof.
For details regarding the selection of the right GÖLZ
diamond blades, please refer to the current GÖLZ
catalogue for diamond tools.
Never touch!
Danger exists
to cut oneself!
BS 400P
135 mm - 5,3 in.
800 mm - 31,5 in.
25,4 mm - 1 in.
400 mm - 15,7 in.
Briggs 750 OHV
4,1 kW
( 5,5 HP )
3.600 rpm
30 l
985 x 850 x1400 mm -
38,8 x 33,5 x 55,1 in.
985 x 760 x 830 mm –
38,8 x 33,5 x 32,7 in.
90 kg –
198 lbs.
92 dB(A)
80 dB(A)
2,3 m/s²
®
2.
Description

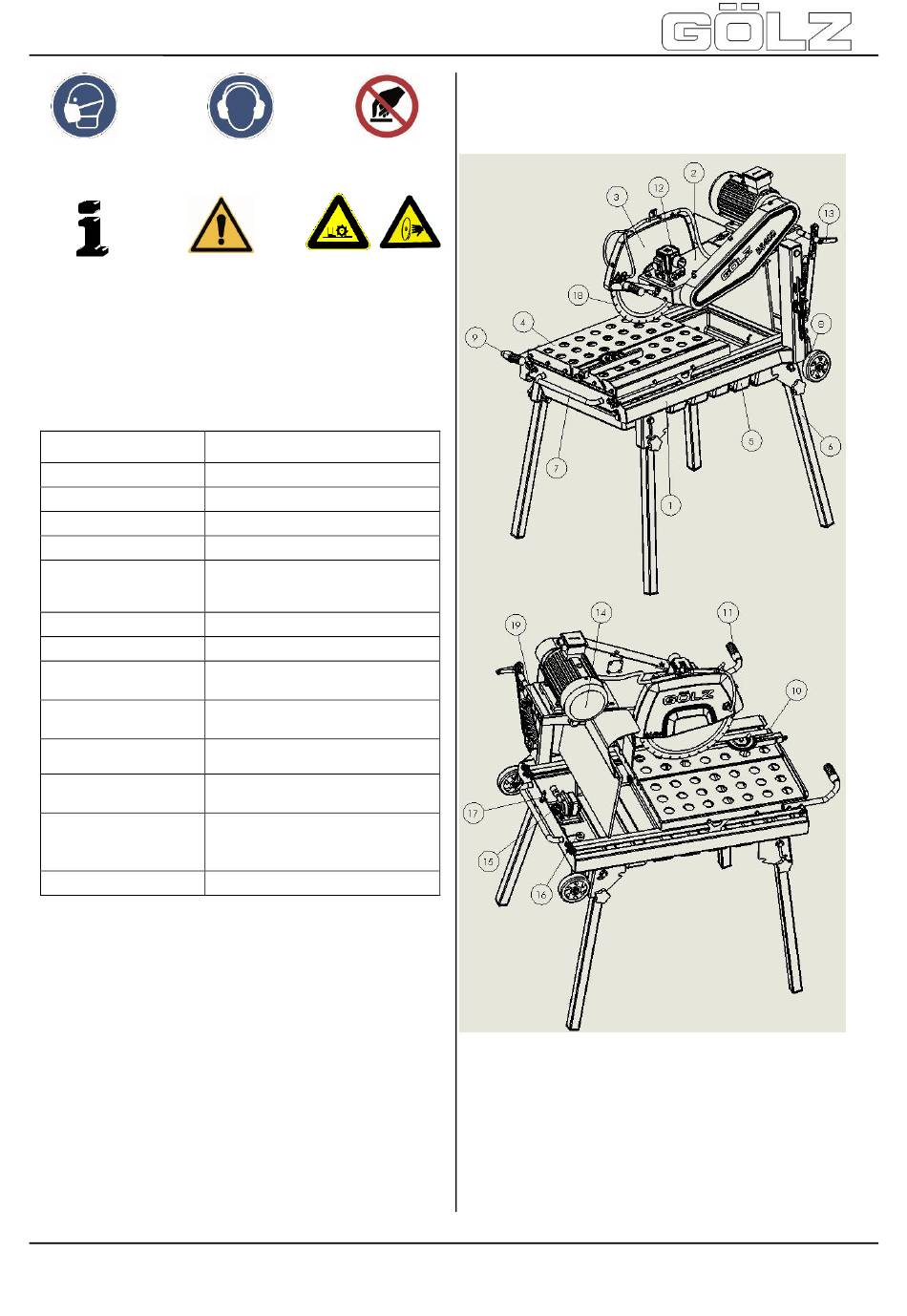

2.1
Main parts
1)
Main frame
2)
Cutting head
3)
Blade guard
4)
Cutting table
5)
Water tray
®
6)
Main pillar
®
7)
Transport handle
8)
Transport wheel
9)
Table handle
10) Back square
- 20-
®
11) Cutting head handle
12) Switch
13) Adjusting handle
14) Motor
15) Water pump
16) Drain plug
17) Table locker
18) Blade
19) Machine plate
5009001-00
BA-D-E-F-FL
