Do not abuse the extension cable. Never use the extension cable to disconnect the masonry bench saw from
the socket. Keep the extension cable away from heat, oil and sharp edges!
Always keep the electrical installation dry!
Danger electric shock! Avoid touching earthed parts like pipes or radiators!
Never touch rotating parts like blade and motor shaft!
3.Description

3.1 Technical Data

Max. cutting depth:
Cutting length:
Cutting table (L x W):
Blade size max.:
Arbor hole:
Flange size:
Motor :
Blade shaft speed:
Max. cutting speed with blade
size Ø 250mm - 9.8 in. :
Feed:
Water supply:
Dimensions (L x B x H):
Weight empty:
Sound pressure level ISO 3745-77:

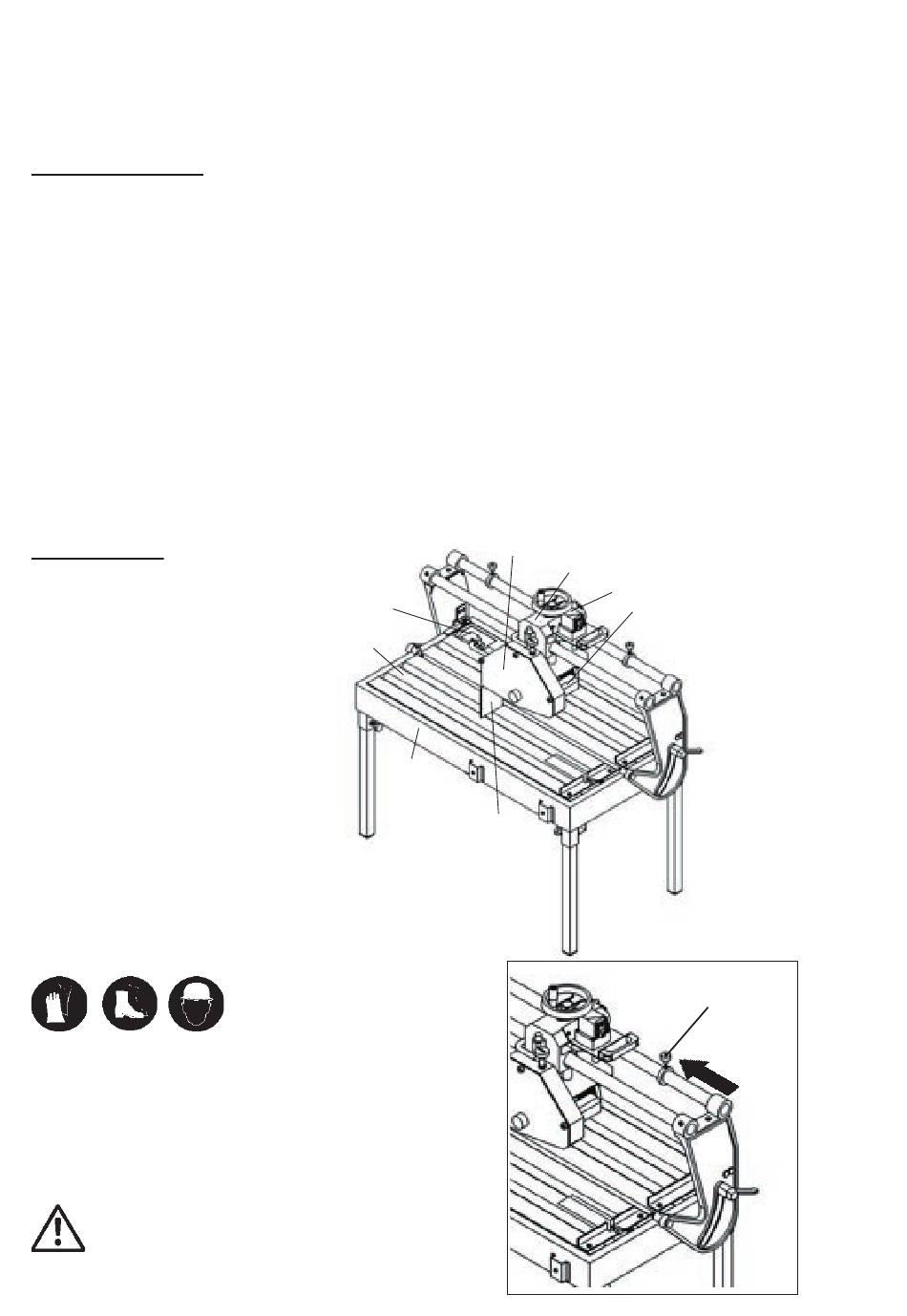

3.2 Main parts

1. Frame
2. Cutting table
3. Electric motor
4. Cutting head
5. Switch
6. Blade guard
7. Splash guard
8. Electrical water pump
4. Transport
Always dismount the blade and secure the cutting table with
the safety device before transportation. Dismount the stands
and store them in the water tub. Transport the masonry bench
saw with two persons. Secure the masonry bench saw on the
loading area using suitable straps.
Secure the masonry bench saw on the loading area!
The masonry bench saw is not designed for crane
transportation!
Injury hazard if the cutting table is not secured with the
safety device against moving!
110 mm - 4.3 in.
850 mm - 33.5 in.
1130x585 mm - 44.5x23.0 in.
350 mm - 13.8 in.
Ø 25,4 mm - 1"
Ø 110 mm - 4.3 in.
E-motor 230 V, 50 Hz, IP55
E-motor 115V, 50 Hz
2800 rpm
51 m/s - 167,3ft./sec.
manuel
Electrical water pump
approx. 1300x650x1275 mm - 51.1x25.6x50.2 in.
approx. 112 kg - 246,4 lbs.
No load = 73,4 dB(A)
Full load = 98,4 dB(A)
6
8
2
1
7
15
4
5
3
Safty device
