Electrical connection - Standard circuit
E.g., lamp control
Strip connecting cable by approx. 6-8 mm and connect as
follows:

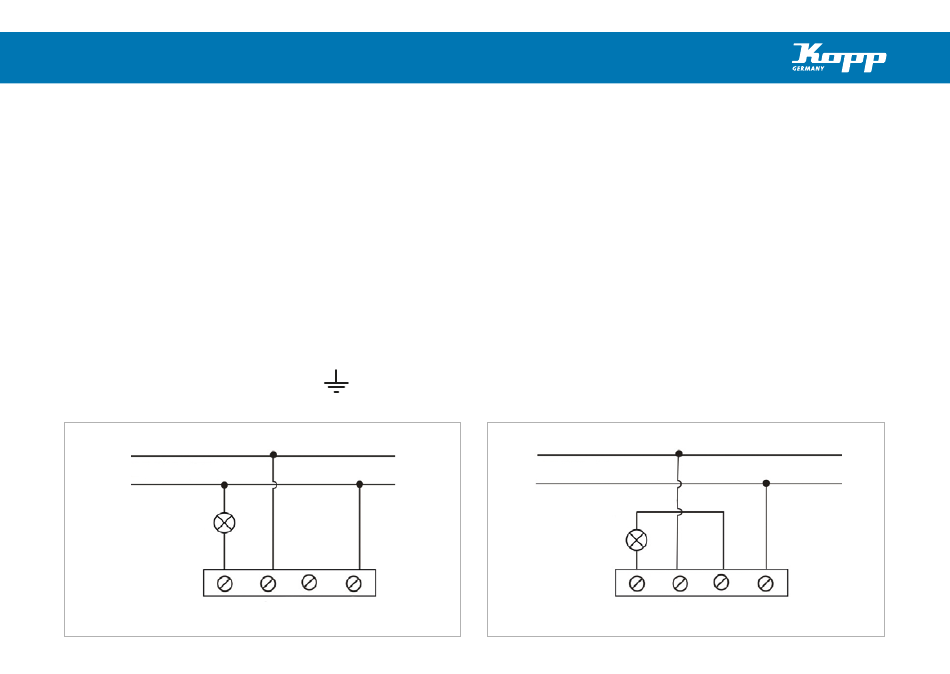

• See wiring diagrams (variant 1 or variant 2)
• Phase L to terminal L
• Neutral conductor N to terminal N
• Switch wire to the consumer at terminal L↑
The motion switch is ready for operation approx. 90 sec-
onds (calibration time/warm-up time) after connection to
the power supply.
Earthing terminal (gnge) to terminal „
L
230V ~ 50Hz
N
Load
L•
Variant 1
"
L N N
Electrical connection at high switch-on currents
High switch-on currents significantly reduce the relay life.
Please refer to the technical specifications of the lighting
or lamp manufacturer. High inductive loads should be
switched via an additional relay or additional protection.
Back-up fuse
The device and the connected consumers must be protected
by upstream protective devices.
When selecting the appropriate protective devices, the
relevant set-up guidelines must be taken into account.
L
230V ~ 50Hz
N
Load
L•
Variant 2
L N N
