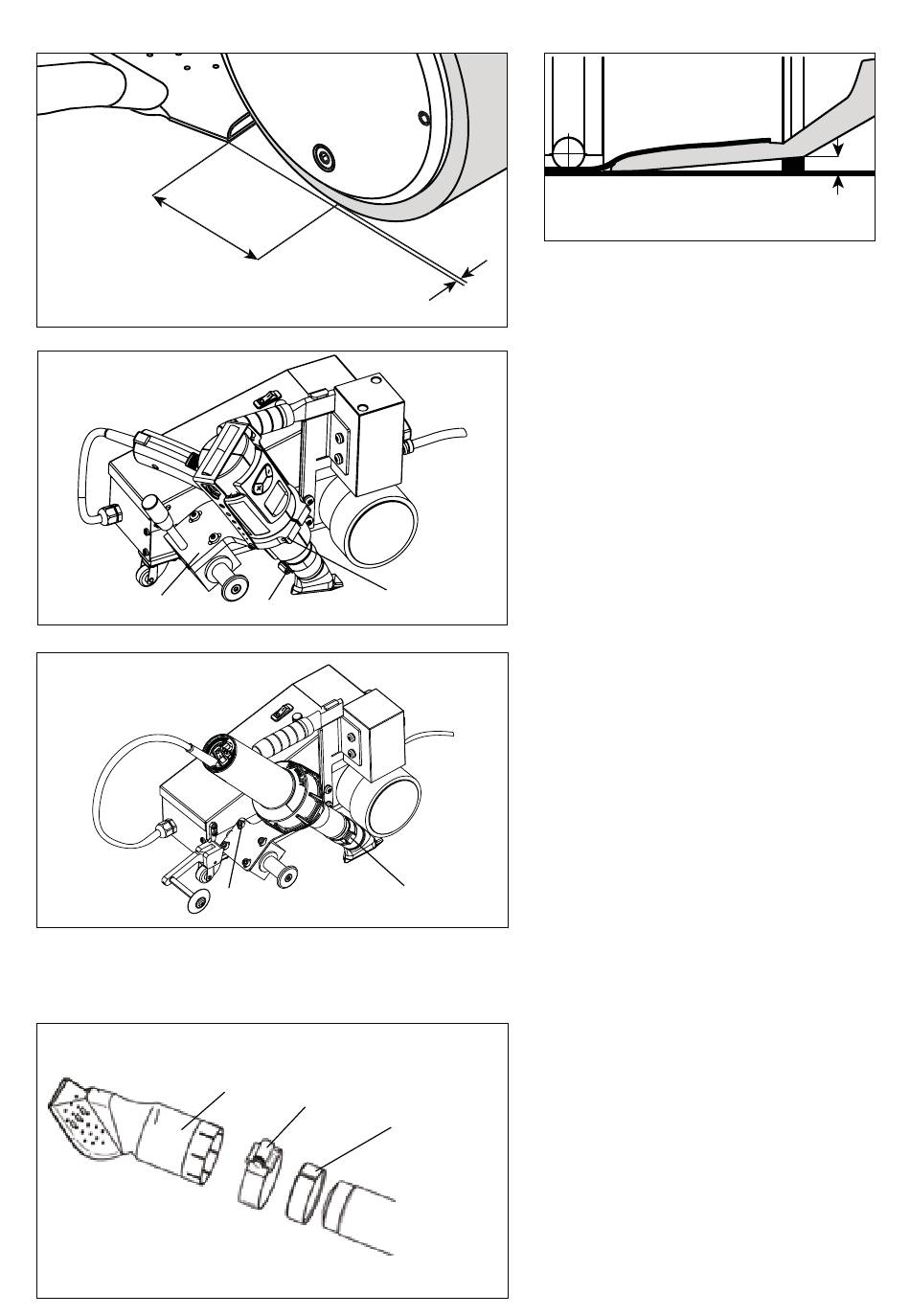

5.1 Welding nozzle settings

26

5.2 Changing the welding nozzle

Change the welding nozzle to the required width as necessary (not included in the scope of delivery).
After changing the welding nozzle, you MUST check the position (as described under Setting the welding nozzle).
22
A
27
28
26
3-1
3-2
3-3
A =
B
B =
C =
foiler
The position of the welding nozzle can be
adjusted in the following three places:
• Hexagon socket screws (26)
• Hexagon socket screw (27)
• Screw collar (28)
foiler ETL
The position of the welding nozzle can be
adjusted in the following three places:
• Hexagon socket screws (26)
• Screw collar (28)
28
1. Unscrew the screw collar (3-2).
2. Remove the current welding nozzle (3-1).
3. Attach the adapter ring (3-3) and the
required welding nozzle (3-1).
4. Tighten the screw collar (3-2) a little.
5. Set the welding nozzle (3-1) (see Setting
the welding nozzle).
6. Screw the screw collar (3-2) tight again.
30 – 40 mm
1 – 2 mm
1 – 2 mm
C
