Parts Removal for Cleaning/Sanitizing

SHUTTER DOORS AND RAILS

• Support hopper shutter door with one hand and
remove thumbscrews from side of hopper shutter
door at under side of base section.
• Pivot door down to remove.
• Remove thumbscrews holding front and rear of
shutter tracks.

DRAIN TRAY

• Remove two thumbscrews on side of drain tray and
pull drain tray forward to remove.
REMOVE AND CLEAN/SANITIZE DRAIN LINES

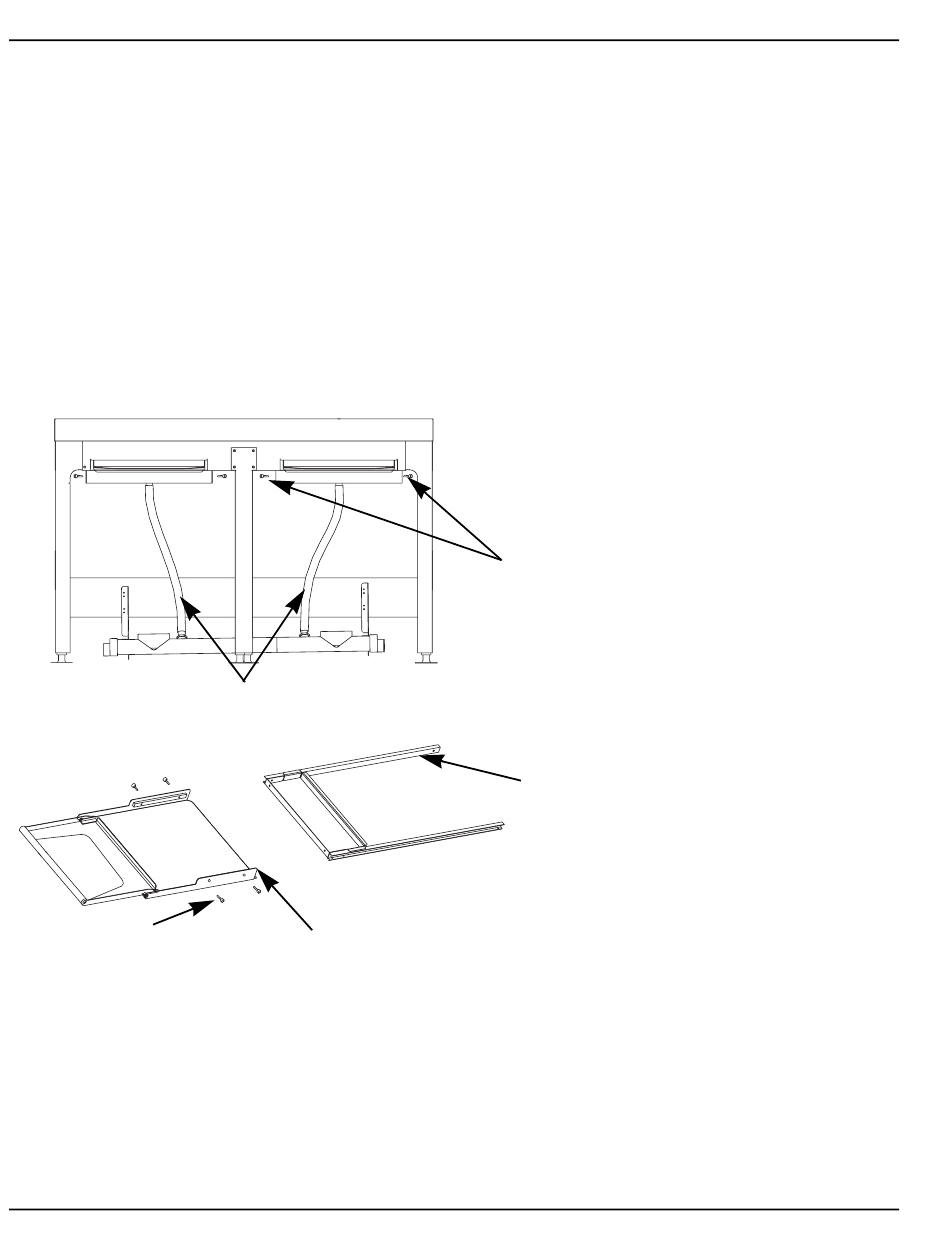

REMOVE THUMBSCREWS AND BOTH SHUTTERS
10

BIN DRAIN SYSTEM

• Remove upper trays.
• Saturate a cloth with cleaning solution and insert
through a loop in end of a piece of wire.
• Feed wire through drain tube, and pull wire and cloth
through tube.

Cleaning Exterior Bin

Exterior stainless steel surfaces can be cleaned with a
stainless steel cleaner and polish.
REMOVE THUMBSCREWS AND
BOTH UPPER DRAIN TRAYS
CLEAN AND SANITIZE SHUTTER RAILS
BEFORE REINSTALLING SHUTTER
