230 V control panel
Intended use
The control panel is exclusively intended for
actuating the 850 W or 1300 W heating
power of the BGE 10 boiler.
For operation and installation of the 230 V
control panel, see "BGE 10 boiler operating
and installation instructions".

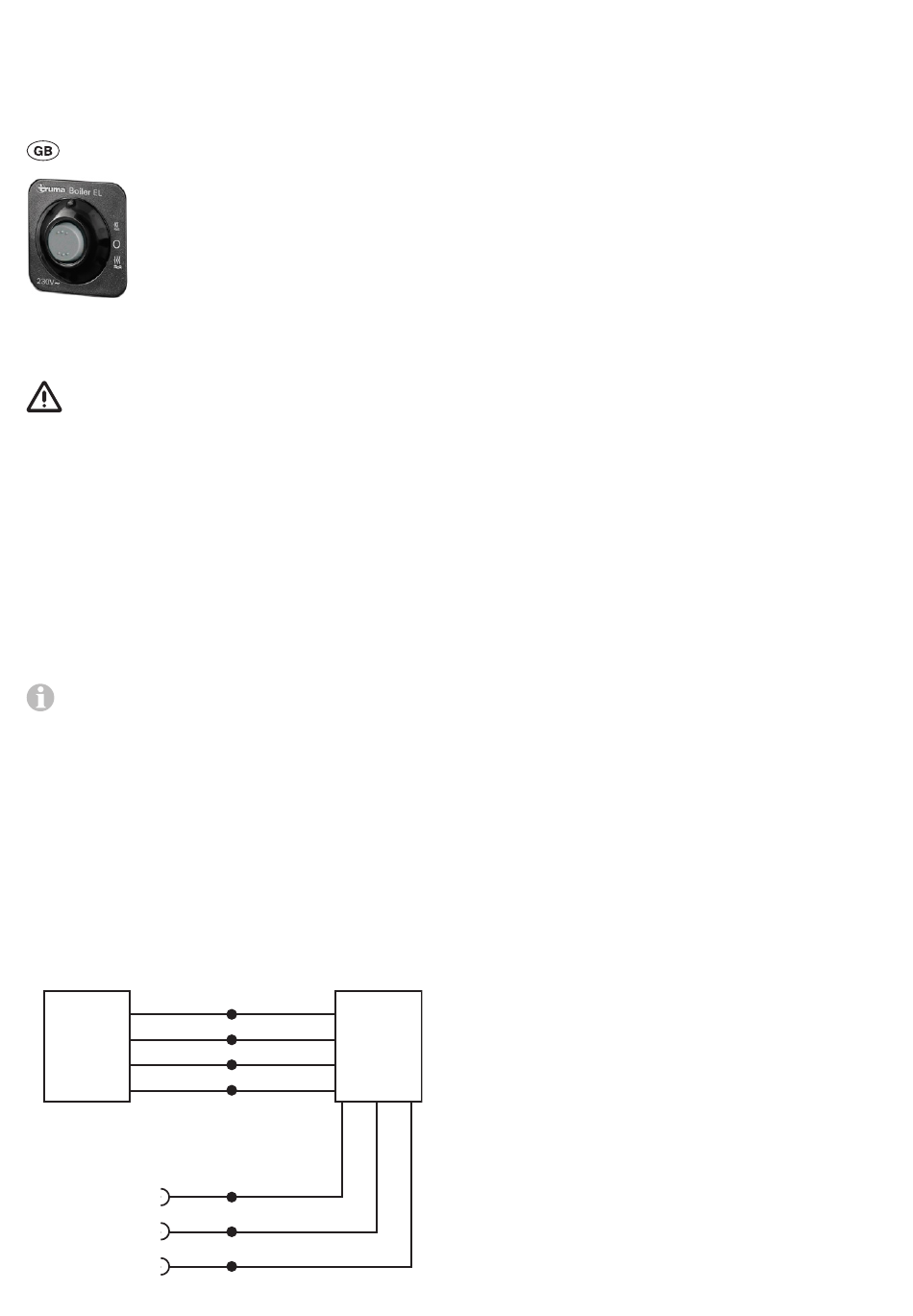

Fig. 1
230 V electrical connection
The 230 V electrical connection must always be made
by an expert (in accordance with VDE 0100, part 721 or
IEC 60364-7-721 in Germany). The instructions shown here do
not constitute a request to non-experts to make the electrical
connection, but serve as additional information for an expert
who is employed to do the work.
Make the connection to the 230 V power supply using a
3 x 1.5 mm² cable (e.g. H05VV-F flexible cable) and the con-
nection to the 230 V control panel using a 4 x 1.5 mm² cable.
It is imperative that connection is carried out with care while
observing the correct colours and numbering!
An insulating device for providing all-pole insulation from
the mains with contact clearance of at least 3.5 mm must be
provided by the customer for carrying out maintenance and
repair work.
All cables must be secured with clamps. The heating
element cables can be routed next to the support on the
side of the boiler and attached to the lug by means of a cable
binder. No water containers or hoses must be attached to the
lug.
230 V control panel connection
Connect the cable for the control panel, the 230 V cable and
the cable for the heating element as shown in the diagram
below.
The cables must comply with the technical rules and regula-
tions of the country in which the vehicle is registered.
230 V ~
control panel
YE/GN
CPC
– 3 –
1300 W
– 2 –
850 W
– 1 –
4 x 1.5 mm²
230 V ~
power supply
3 x 1.5 mm²
Fig. 2
Boiler
heating
element
YE/GN
CPC
– 3 –
450 W
– 2 –
850 W
– 1 –
BN
L
BU
N
YE/GN
CPC
BGE 10 Boiler
In the interests of safe operation, make sure that the L and
N conductors are properly connected to the corresponding
cables.
Function test
In order to check that the 230 V heating elements are oper-
ating correctly, a power consumption measurement must
be carried out with the switch in the 850 W and 1300 W
positions.
Position 850 W 3 – 4 A
Position 1300 W 5 – 6.5 A
If the values measured do not fall within the range shown
above, please check that the heating elements are properly
connected.
750 – 900 W
1150 – 1400 W
