PROline Promag 53 PROFIBUS-DP/-PA
II2G
EX
Zone 1
• Transmitter Promag 53 PROFIBUS-DP/-PA in:
II3G EEx nRC IIC T6 X
Transmitter housing in IP 67
• Sensor Promag H/P in:
II3G EEx nA IIC T3-T6 X
Sensor housing in IP 67
optionally available in IP 68 (submersible to 3 m)
• Sensor Promag W in:
II3G EEx nA IIC T6 X
Sensor housing in IP 67
optionally available in IP 68 (submersible to 3 m)
• For ambient and medium temperature ranges, and temperature class,
see Page 4.
Endress+Hauser

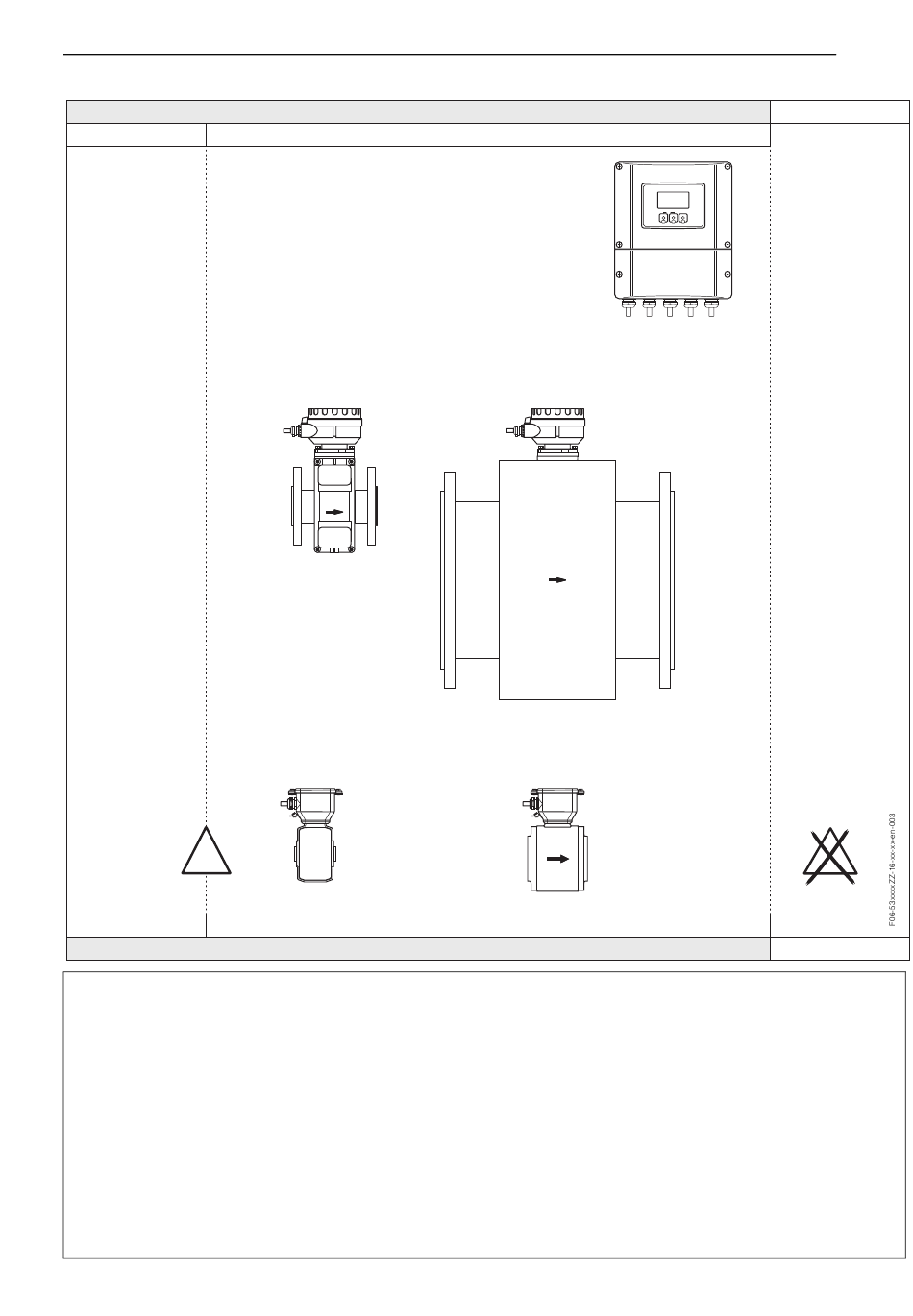

Hazardous area
Promag
P = DN 15...300
W = DN 65...300
➆
Promag
H = DN 2...25
➆
Hazardous area
II3G
Promag 53
➅
Promag
P = DN 350...600
W = DN 350...2000
➆
Promag
H = DN 40...100
➆
Zone 2
 Transmitter terminal compartment
power supply, sensor cable connection,
bus and termination cable.
 Sensor terminal compartment
sensor cable connection
<
Safe area
Esc
-
+ E
EX
Safe area
