4. COMPLEMENTARY FUNCTIONS

4.1. ADjUSTMENTS OF THE PI

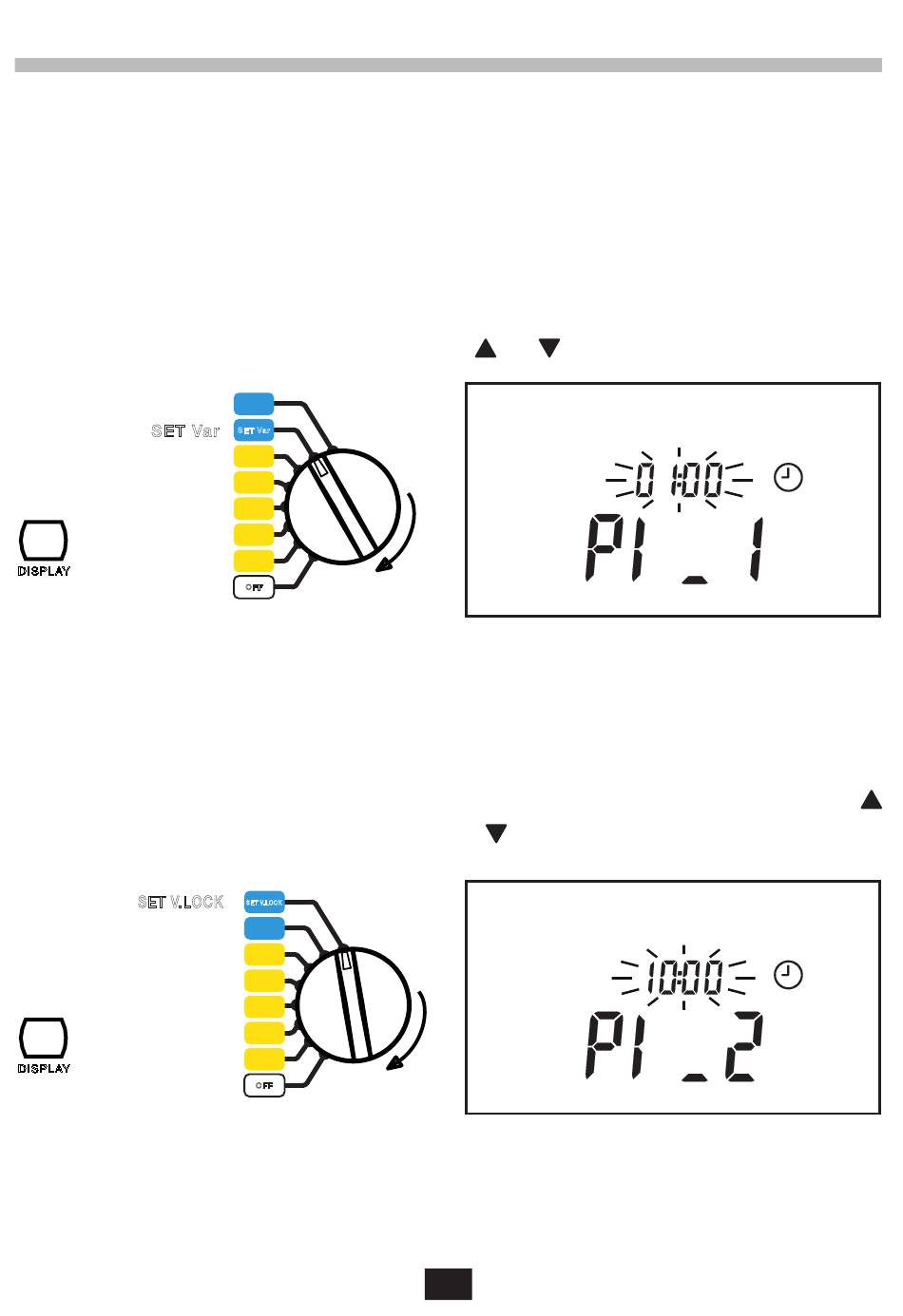

It is possible to modify the PI times to meet specific needs. This function is not readily accessible
because it is not often used.
Reminder: PI = R
10 min /
The first PI time is 1 mn. It can be set to values from 30 s to 30 mn in 30 s steps.
Keep the DISPLAY key pressed and turn
the switch to the SET Var position.

SET Var
+
DISPLAY
To save changes simply, turn the switch.
The second PI time (PI_2) is 10 min. It can be set to values from PI_1 up to 59 mn in 1 mn steps.
Keep the DISPLAY key pressed and turn
the switch to the SET V.LOCK position.
SET V.LOCK

+
DISPLAY
To save changes simply, turn the switch.
R
1 min
SET Var
OFF
SET V.LOCK
OFF
You can change the first PI time (PI_1) using the
and keys.
You can modify the second PI time using the
and keys.

min sec
min sec
