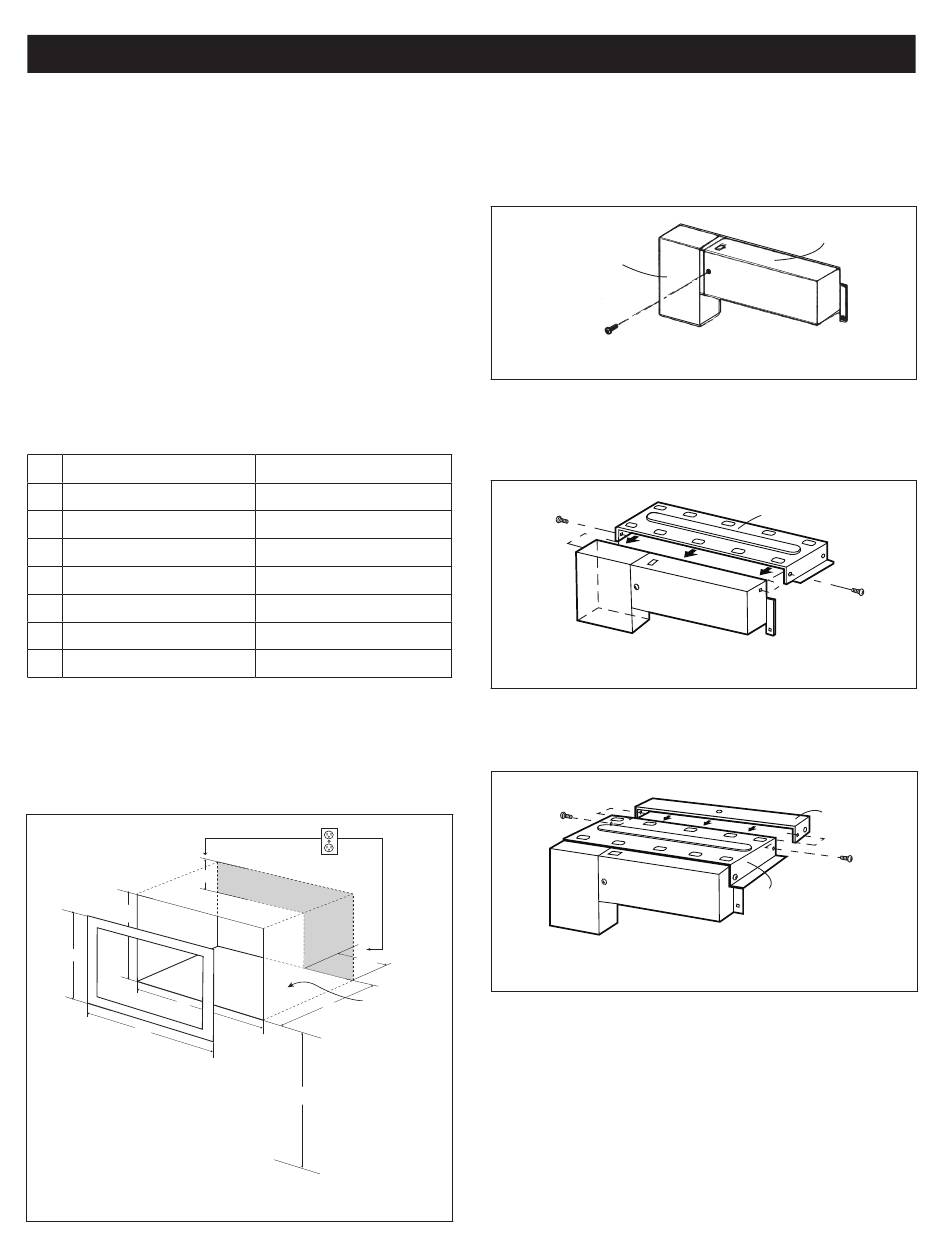

STANDARD INSTALLATION INSTRUCTIONS
STEP 1 - CABINET OR WALL OPENING
Provide an opening in the wall or cabinet as indicated
in Figure 1. The depth should be a minimum of 20
(511.2 mm). If the Depth (E) dimension is greater than 21"
(533.4 mm), the outlet location may be in any area on the
rear wall. The floor of the opening should be constructed of
plywood strong enough to support the weight of the oven
(approximately 100 lbs/45 kg) and should be level for proper
operation of the oven.
NOTE: While the proper function of the oven does not
require that the opening be enclosed (with sides, ceiling and
rear partition), this may be required by local code, and it
is suggested that the local code be checked for any such
requirement.
The opening in the wall or cabinet must be within the
following dimensions, centered horizontal to the cabinet.
RK94S27F
A
20" (508 mm)
7
B
26
/
" (682.6 mm)
8
C
18
1
/
" (470 mm)
2
D
25
1
/
" (641.3 mm)
4
1
E
Min. 20
/
" (511.2 mm)
8
F
5" (127 mm)
G
10" (254 mm)
Outlet should NOT be in the shaded area as indicated on
Figure 1.
NOTE:
• If the dimension of DEPTH (E) is more than 21" (533.4 mm),
the outlet location may be any area on the rear wall.
F
C
A
D
B
NOTE: Floor of opening
should be 90˚ to front
cabinet frame.
RK94S30F
20" (508 mm)
7
29
/
" (758.8 mm)
8
18
1
/
" (470 mm)
2
25
1
/
" (641.3 mm)
4
1
Min. 20
/
" (511.2 mm)
8
5" (127 mm)
10" (254 mm)
G
FLOOR
E
34-1/2" MIN.
FLOOR
FIGURE 1
STEP 2 - EXHAUST DUCT ASSEMBLY INSTALLATION
A. Insert the edge of DUCT (B) into the hold lip of DUCT (C).
1
/
"
Secure together by using a SCREW (I) provided in the kit.
8
See Figure 2.
DUCT (B)
SCREW (I)
B. Position DUCT (A)-1 on the top of the oven inserting
edge of DUCT (BC) assembly into hole lip of DUCT (A)-
1. Tighten 2 SCREWS (I), securing DUCT (A)-1 to DUCT
(BC) assembly. See Figure 3.
SCREW (I)
C. Position DUCT (A)-2 on the top of the oven and insert it
into the hold lip of DUCT (A)-1. Secure DUCT (A)-2 to
DUCT (A)-1 using 2 SCREWS (I) provided. See Figure 4.
SCREW (I)
E 2
DUCT (C)
FIGURE 2
DUCT (A)-1
DUCT (BC)
SCREW (I)
FIGURE 3
DUCT (A)-2
SCREW (I)
DUCT (A)-1
FIGURE 4
