Airwell DLS VAV SYSTEM Manuel D'installation Et D'utilisation page 49

Software Ver. C850-02-A11
C850-EU
Danger
Electric shock
risc
WARNING:
Disconnect main power supply
before any system maintenance.
0 . 3 A m p s , 2 5 0 VA C
POWER LINE INPUT
~230VAC/50HZ
1
ROOM#1 ROOM#2
1=ON
>>>2X10"
2=ON
1=OFF
>>>2X8"
2=ON
1=ON
>>>1X10"
2=OFF
1=OFF
>>>1X8"
2=OFF
FUSE
AC Line Power Input
230 VAC

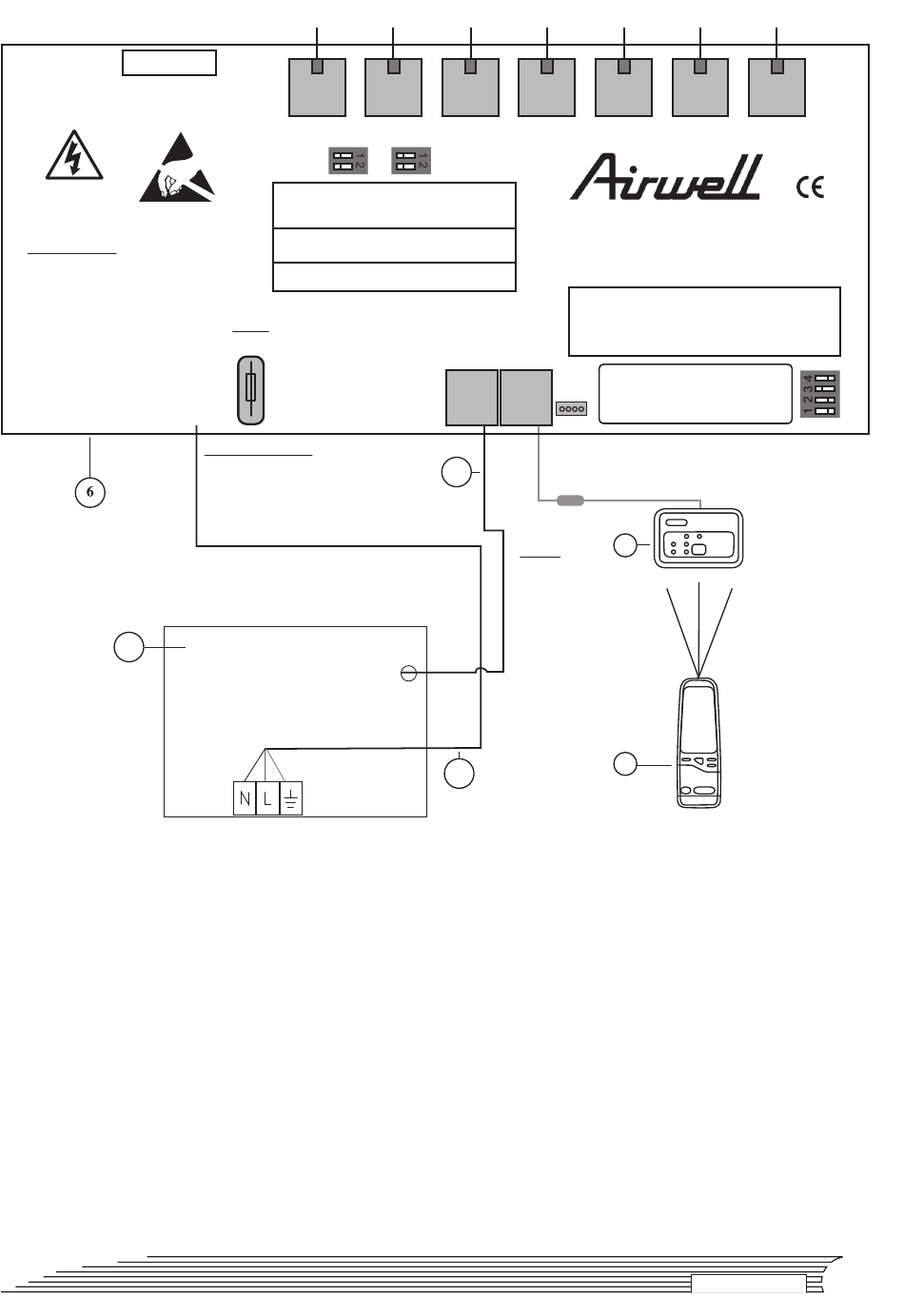

1. Controlador de la unidad interior
2. Cable de suministro eléctrico
3. Mando a distancia
4. Pantalla del aire acondicionado
5. Cable de conexión entre el aire acondicionado
y el controlador Min Max +
6. Controlador Min Max +
ROOM#3 ROOM#4
For Damper
system only
ZONE - CONTROLLER
DLS VAV SYSTEM
[ 40 cm X 15 cm
And 50 cm X 15 cm]
[30 cm X 15 cm]
AIR IR
RECEIVER
COND-
MEGA
TOOL
5
NOTE:
CONNECT THE AIR-
COND. I/R RECEIVER
TO VAV
CONTROLLER
(NOT TO AIR-COND).
2
ROOM#5 ROOM#6
DIP #1,#2 - BYPASS PROFILE
DIP #3 - PARALLEL OPERATION ROOM #1+#2
FROM ONE IR RECEIVER AT ROOM #1.
DIP #4 - ROUND OR RECTANGULAR DAMPER.
Pay attention
The controller default is for Rectangular
dampers, for round damper need a special
set up, please refer to the installation manual.
4
SYSTEM
3
E S PA ñ O L
BYPASS
49
