Names and functions of each part (continued)

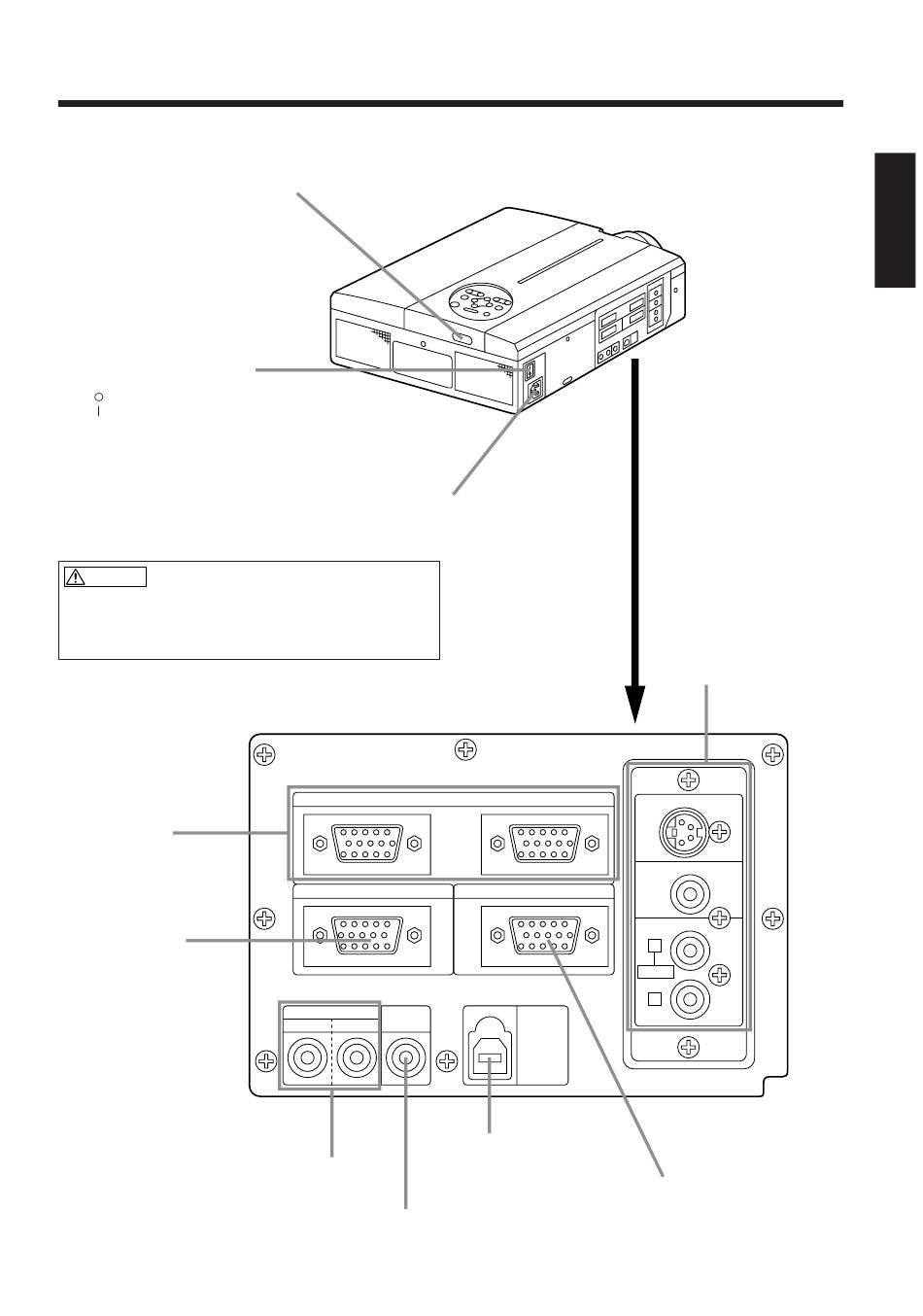

Remote control I/R receiver
Main power switch
Used to turn the power on and off.
OFF
:
ON
:
Caution Connecting to the AC IN jack
Make sure the accesory power cord is plugged into
the AC IN jack as far as it will go. Incomplete
connection can result in fire or electrical shock.
RGB IN jack
D-sub 15-pin shrink (1/2)
CONTROL jack
D-sub 15-pin shrink
AUDIO IN jack (RGB)
Stereo mini jack
AC IN jack
Used to connect the
accessory power cord.
1 RGB IN
CONTROL
AUDIO IN
AUDIO
1 2 OUT
USB jack
The mouse cursor can be controlled by
remote control by connecting to a
personal computer.
AUDIO OUT jack (RGB/VIDEO)
Stereo mini jack
VIDEO IN jack
S-VIDEO IN jack
VIDEO IN jack
AUDIO L/R IN jack
2
S-VIDEO IN
VIDEO IN
RGB OUT
AUDIO IN
L
MONO
R
USB
RGB OUT jack
D-sub 15-pin shrink
Mini DIN 4-pin connector
RCA jack
RCA jack
