Speedometer
Engine Fault
Indicator
(red)
High Beam
Indicator (blue)
Speedometer
Odometer
High Beam Indicator (Blue)
Turn Signal Indicator (Green)
Fuel gauge
Water Temperature Gauge

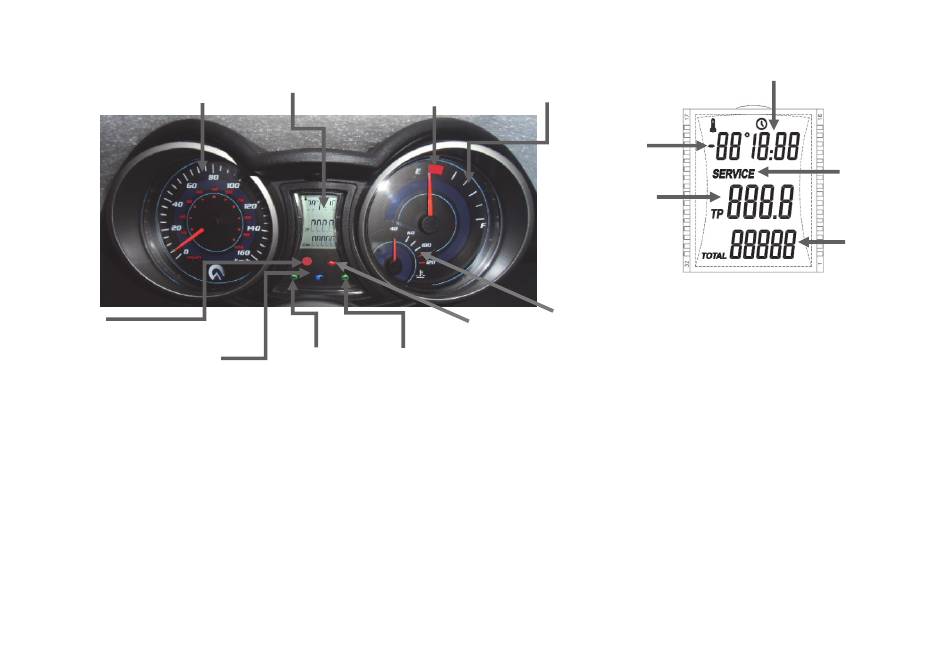

VEHICLE COMPONENT USE AND FUNCTIONS
LCD Panel
Indicator (red bar)
Signal Light Indicators
Left / Right (green)
: This shows speed in Kilometers and Miles per hour (outer ring for Kmph and inner ring for MPH)
: The odometer shows the total kilometers this vehicle has been driven
: This is to indicate the High Beam is activated on the headlight
: Left and Right flashes in accordance when the signal switch is activated Left or Right
: Does not indicate fuel level when the ignition switch is turned off. When Indicator reaches the red bar, it is
strongly suggested that you fill the vehicle as soon as possible. Fuel reserve indicator on red is approximately
1.7litres only.
: Does not indicate temperature when ignition switch is turned off. If temperature mark should reach the red
line, look for a safe place to park and turn off your engine, consult your local dealer for assistance Immediately.
Warning: Prolonged use of your vehicle in an overheated state can lead to serious engine failure
DASH PANEL
Low Fuel
Fuel Gauge
Ambient
Temperature
Trip counter
Temperature
Oil Pressure indicator
indicator
6
Clock
LCD Display
Water
Service
Indicator/
Engine Oil
change due
Total
Mileage
Counter
