9 REHANG FREEZER DOOR (For
freezer swing door models only)
Lower bottom socket of freezer door onto pin on
bottom hinge bracket. Be sure washer is in place.
Tilt door toward cabinet and gently push door under
center hinge bracket and align with the hole in the
center hinge bracket.
Reinstall hinge pin with a 7/32" socket wrench so it
extends through the hole in the center hinge bracket
and into socket on top of freezer door.

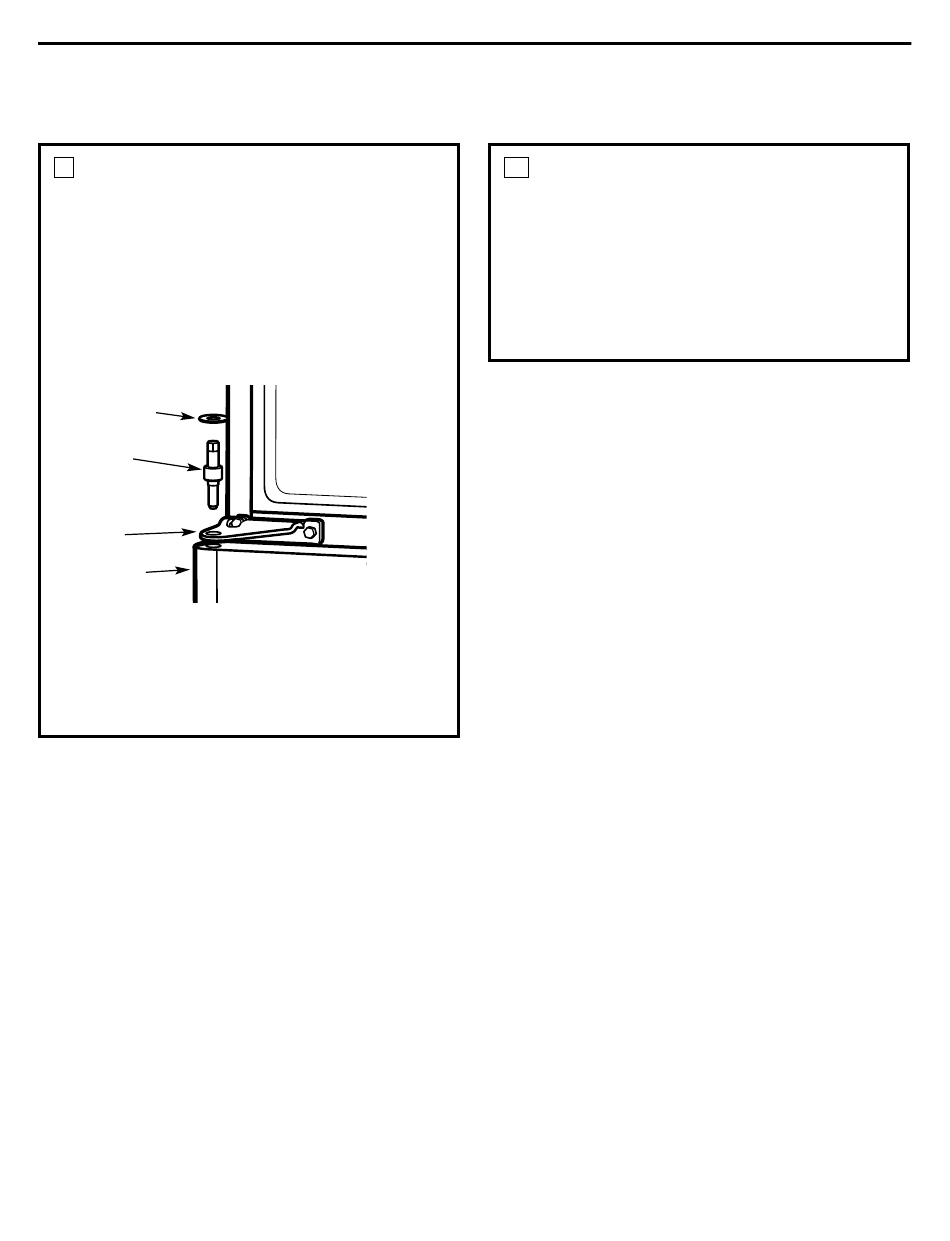

Plastic washer
Hinge pin
Center hinge
bracket
Freezer door
REPLACE CENTER HINGE PIN
(For models with a freezer drawer)
Reinstall hinge pin with a 7/32" socket wrench
so it extends through the hole in the center hinge
bracket.
Installation Instructions
17
10 REHANG REFRIGERATOR DOOR
Lower bottom socket of the refrigerator door onto
center hinge pin. Be sure washer is in place.
Tilt door toward cabinet, lifting the top hinge so the
pin fits into the socket on top of the door.
Tighten the top hinge screws after supporting the
door on the handle side and ensuring the gap
between the doors is even all across the front.
Replace the hinge cover.
