Installation instructions, only for experts

4.6. Electrical connection

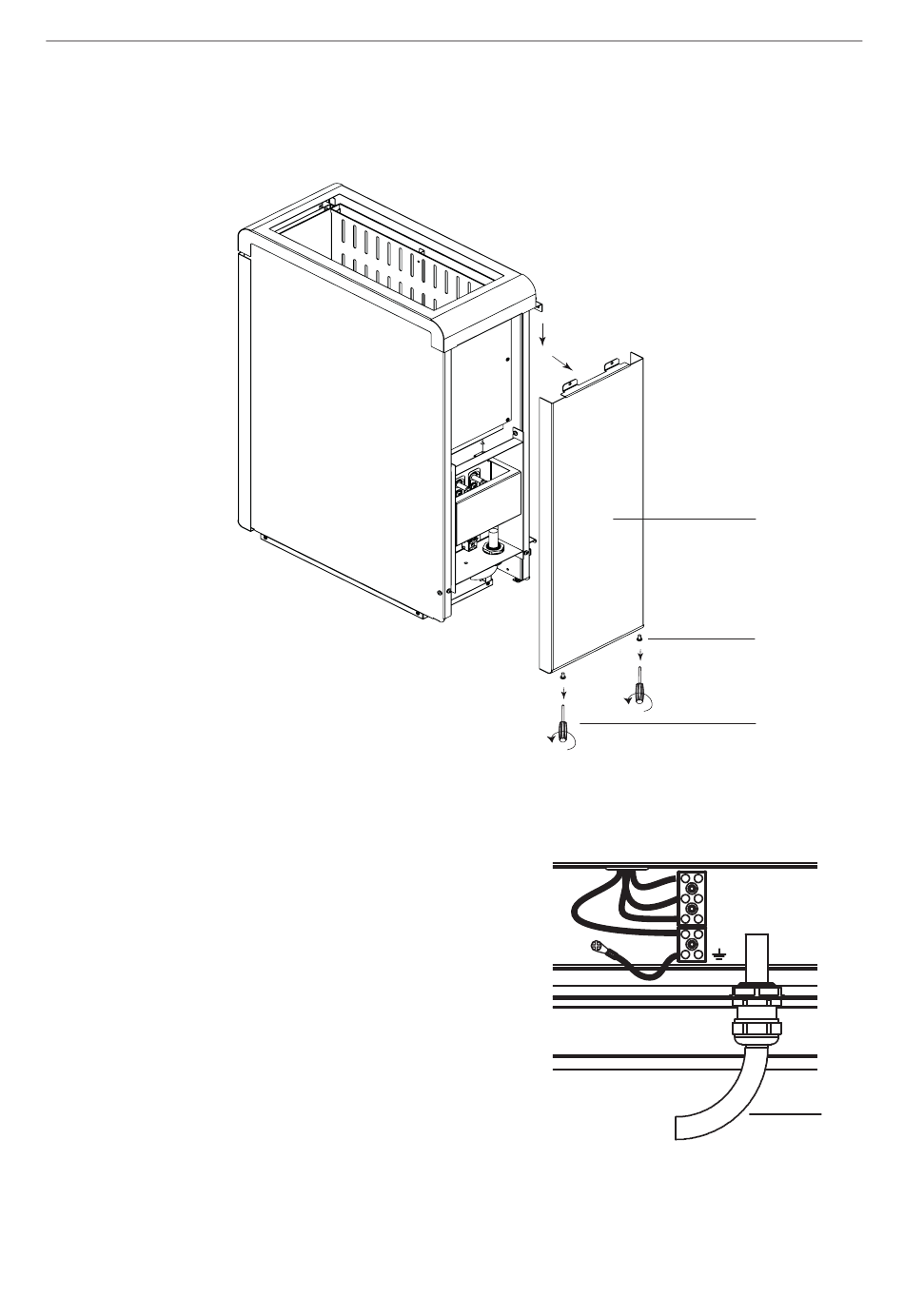

1. Unscrew the screws 2 and 3 with a screwdriver.
2. Remove the cover plate 1.
Connecting the Concept R mini 3.5 kW, 4.5 kW and 6.0 kW
(CP-RM-35 / CP-RM-45 / CR-RM-60)
1. Guide the connection cable through the feed-
through 4.
2. Connect the connectors of the connection
cable to the U – V – W – N – PE terminals
of the sauna heater and to the applicable
control device terminals. Observe the instal-
lation instructions for the sauna control unit
when doing so.
3. Reattach the cover panel 1 to the heater.
WORLD OF WELLNESS
p. 16/24
1
2
3
U
V
W
N
PE
4
