ELECTRICAL REQUIREMENTS

A 120 V, 60 Hz., AC only, 15 or 20 A, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is
recommended that a separate circuit serving only this appliance be provided.

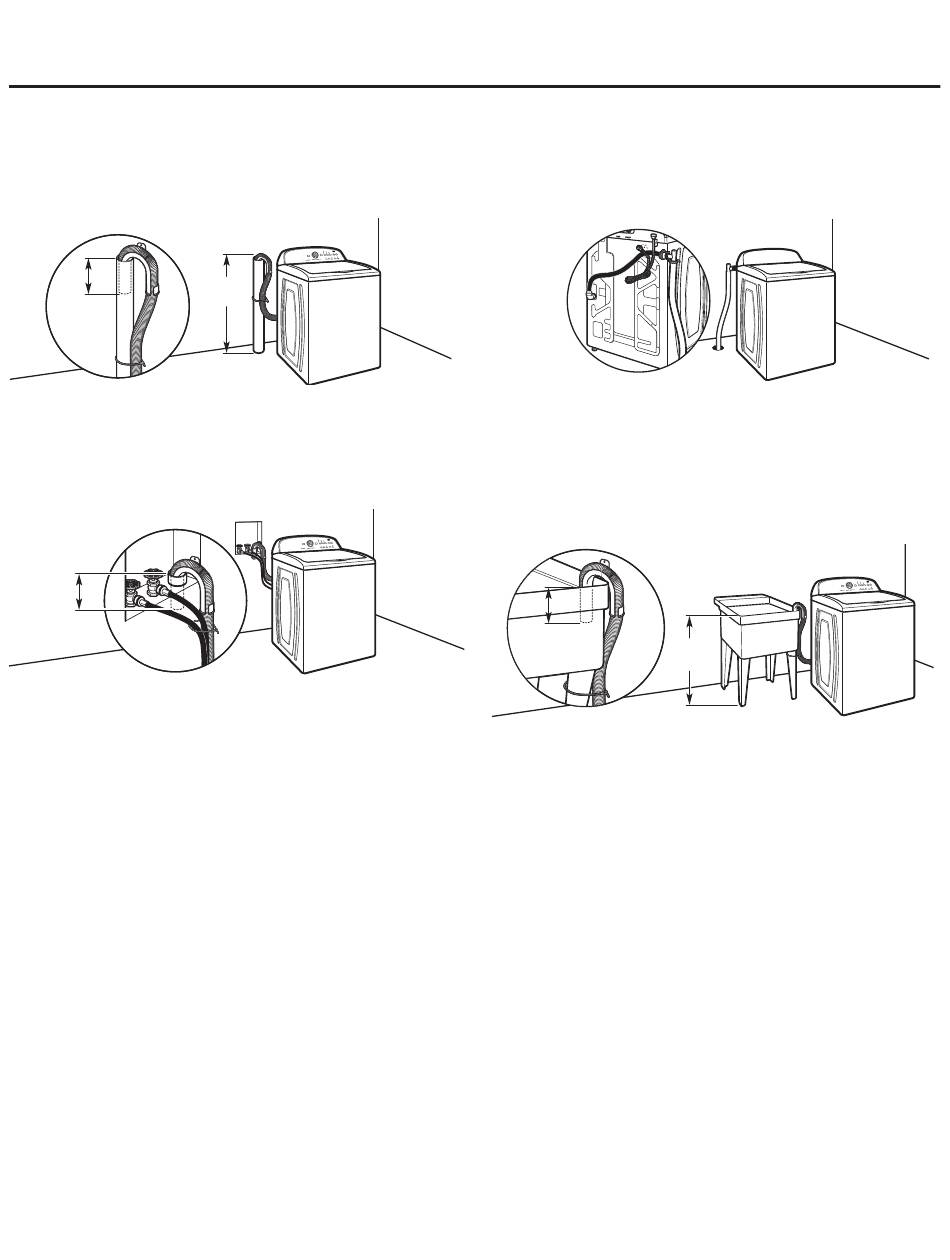

DRAIN SYSTEM

Drain system can be installed using a fl oor drain, wall standpipe, fl oor standpipe, or laundry tub. Select method you need.
Floor standpipe drain system
4.5"
M M
✭ ✆ ✆ ✄ ✂
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe
must be at least 39" (990 mm) high; install no higher than
96" (2.44 m) from bottom of washer. If you must install higher
than 96" (2.44 m), you will need a sump pump system.
Wall standpipe drain system
4.5"
(114 mm)
See requirements for fl oor standpipe drain system.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifi cations without notice.
2
39"
M M
✭ ✠ ✠ ✟ ✂
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. To order, please see toll-free phone
numbers in your Use and Care Guide. Minimum siphon break:
28" (710 mm) from bottom of washer. (Additional hoses may
be needed.)
Laundry tub drain system
4.5"
(114 mm)
✭ ✠ ✠ ✟
Minimum capacity: 20 gal. (76 L). Top of laundry tub must be at
least 39" (990 mm) above fl oor; install no higher than 96" (2.44 m)
from bottom of washer.
IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm)
of drain hose should be inside standpipe or below the top of
wash tub. Secure drain hose with cable tie.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifi cations subject to change without notice.
