Linear 5 1.1
2 L SUB 1200 A / L SUB 2000 A

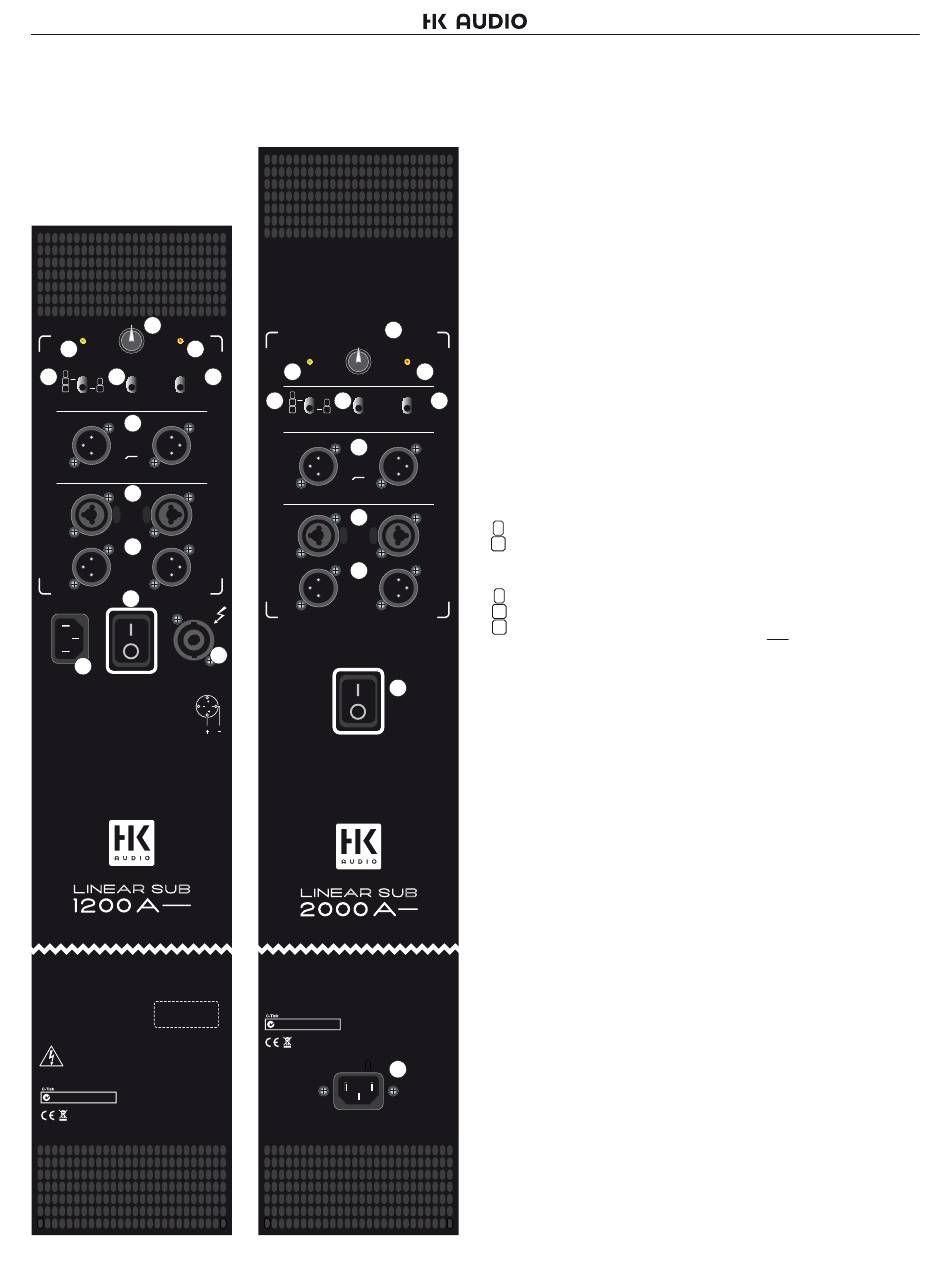

2.1 Control Features
1
2 3
–6 dB +6 dB
Gain Bass
Power Limit
4 5 6
110 Hz 0°
130 Hz 180°
Configuration X-Over Bass Phase
7
Line Out
Mid/High
L R
8
Input
9
L R
Thru
10
L R
Speaker Out
11
to L Sub 1200
Mains Power
220-240 V~
50-60 Hz 1
1 2
3,3 A rated current
2
Caution:
To reduce the risk
of electric shock,
grounding of the
center pin of this
plug must be
maintained.
Made in Germany
l i n e a r s u b
Serial No.
Caution: Risk of electric shock!
Do not open! Refer servicing to
qualified service personnel.
Leave enough space
for proper ventilation!
6
Leave enough space for proper ventilation!
Made in Germany
1
Gain Bass
0 dB
Power
2
–6 dB +6 dB
4 5
100 Hz
120 Hz
Configuration X-Over Bass
7
Line Out
Mid/High
L
8
Input
L 9
Thru
L
12
Power
10
l i n e a r s u b
11
Mains
Caution:
To reduce the risk
of electric shock,
grounding of the
center pin of this
plug must be
maintained.
220-240 V~ 50-60 Hz
3 A rated current
1 Gain Bass
This knob adjusts the subwoofer's volume. When set to the 12 o'clock
position (0 dB /center-notched), the subwoofer's volume is matched to
the LINEAR active speakers' levels to achieve a balanced soundscape
with an evenhanded distribution of low and midrange frequencies. If you
want to increase or decrease the subwoofer's volume, simply rotate the
knob to the left or right (control range +/-6 dB).
2 Power LED
This LED lights up green when the Power button is set to On and mains
power is provided
3 Limit LED
This LED lights up red when the power amp's input signal is too high
or a fault has been detected. The LED briefly flashes red to tell you the
Limit
limiter is responding to signal peaks.
3
Caution! If the Limit LED stays red while the unit is up and running,
it is being overloaded. Turn down the signal level! If you are not
6
0°
routing a signal in and the Limit LED stays red, the system has
180°
Phase
detected a fault.
4 Confi guration
This switch optimizes the LINEAR active sub for deployment with other
R
LINEAR series units.
Set the switch to this position to configure the LINEAR active sub
R
for use with a LINEAR active speaker.
R
Set the switch to this position to operate two LINEAR active sub
with one LINEAR active speaker. In this setting, the levels of the two
Line Out Mid/High outputs are boosted by up to 6 dB to bring up the
one mid/ high unit's level and balance it out with two LINEAR active
subs.
5 X-Over Bass
The X-Over switch lets you adjust the upper corner frequency of the
x-over built into the LINEAR active sub.
• L SUB 1200 A between 110 Hz and 130 Hz
• L SUB 2000 A between 100 Hz and 120 Hz
Your choice of setting will depend on the conditions in the venue and the
type of audio signal.
6 Phase
The Phase switch configures the LINEAR active sub's phase position to
match that of the connected mid/ high units (0°/180°). Set the switch to
0° when operating the bass bin with LINEAR 5 mid/ high units. You may
have to invert the phase 180° to operate it with other speakers.
7 Line Out Mid/High L/R
Use these two electronically balanced XLR outputs to connect active
mid/ high units.
8 Input L/R
This electronically balanced, combination XLR/ 6.3 mm (1/4") input
accepts audio signals.
Leave enough space
for proper ventilation!
9 Thru L/R
This parallel output routes Input L/R's incoming signal back out.
