HK Audio LINEAR 5 L5 112 XA Manuel page 43

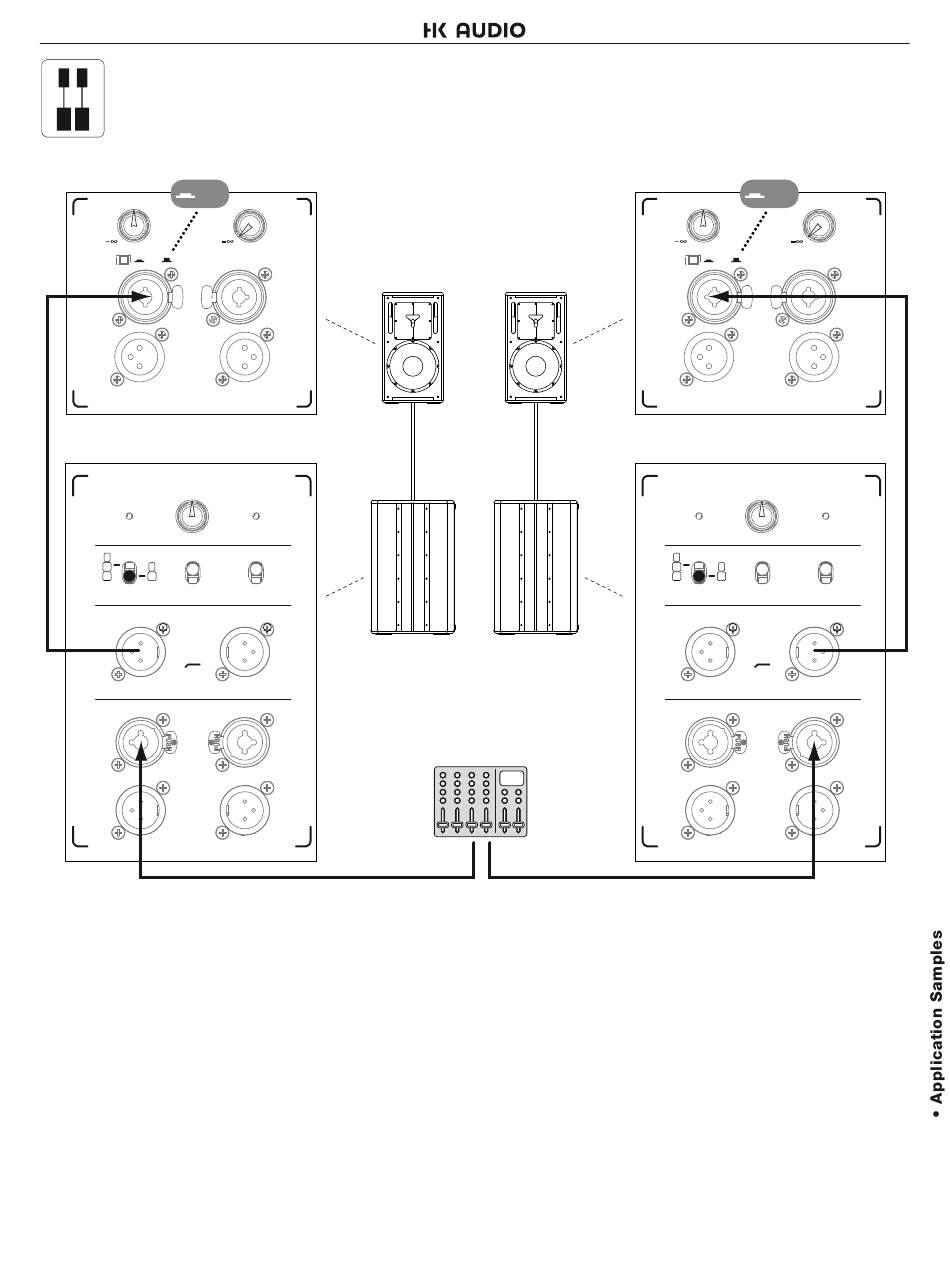

3 Halfstack System: 2x L5 112 XA / L5 112 FA / L5 115 FA
+ 2x L SUB 1200/2000 A
Line
0 dB 0 dB
Gain A
+6 dB
Line Mic
Input A
Thru A
Gain Bass
0 dB
Power Limit
–6 dB +6 dB
100 Hz
120 Hz
Configuration X-Over Bass Phase
Line Out
Mid/High
L R
Input
L R
Thru
L R
Gain B
+6 dB
Input B
Thru B
0°
180°
Left
0 dB
Gain A
Input A
Thru A
Power
Configuration
Right
Linear 5 1.1
Line
0 dB
Gain B
+6 dB +6 dB
Line Mic
Input B
Thru B
Gain Bass
0 dB
Limit
–6 dB +6 dB
100 Hz 0°
120 Hz 180°
X-Over Bass Phase
Line Out
Mid/High
L R
Input
L R
Thru
L R
