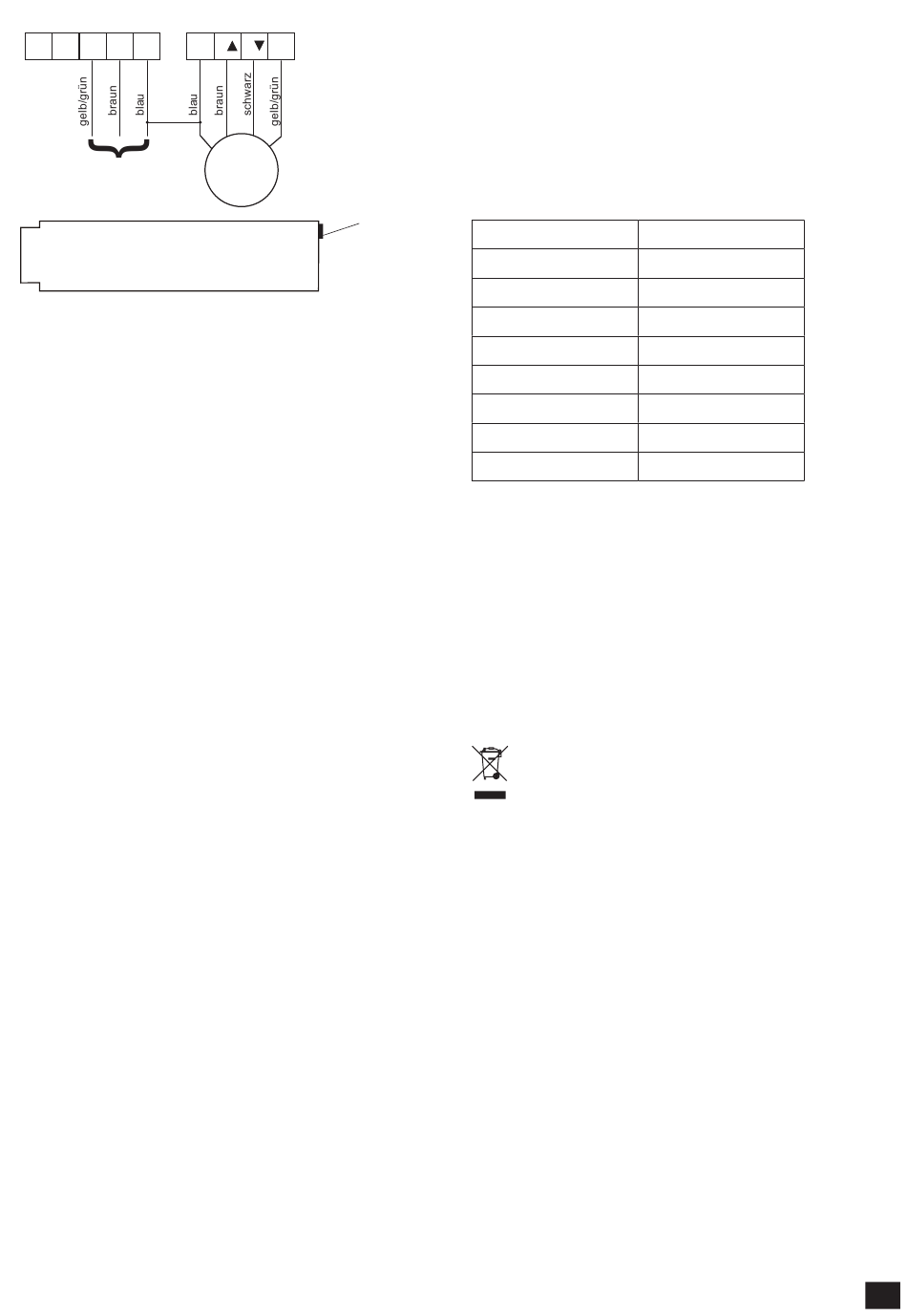

DESCRIPTION OF CONNECTIONS

E L N
AC
230V/50Hz
INSTALLATION / INITIAL OPERATION
Step 1: CABLING
Connect all receiver cabling but do not activate power supply!
Keep receiver accessible for further settings.
Step 2: SELECTION OF DIVERSE SETTING OPTIONS.
SHUTTER and AWNING
The motor is working in SHUTTER / AWNING mode as per
default set up with continuous movement to end limits.
HOLD TO RUN
To switch on HOLD TO RUN function go through following steps:
1. Press the remote control learn button two times
2. Press the remote control UP button once.
3. The motor will jerk once, now the motor is in inching mode.
To switch off the HOLD TO RUN function go through following steps:
1. Press the remote control learn button two times
2. Press the remote control DOWN button once.
3. The motor will jerk once, now the motor works continuously.
SIGNAL SOUNDS FROM THE BOX MOVES
Serve as indications
• motor moves shortly 1 time in each direction = command confirmed / successful
• motor moves shortly 2 times in each direction = command not confirmed / not
successful
PROGRAMMING RADIO REMOTE CONTROLS / WIRELESS WALL SWITCHES
Up to 60x remote controls can be memorised
1. PROGRAMMING a new remote control (1-channel or multi-channel), wireless
wall switch
1. Connect the power
2. Press the receiver learn button once, the motor will move one time in each
direction.
3. Within 10 seconds, press the remote control learn button once, the motor will
move one time in each direction again.
4. The remote control has been successfully learned.
2. PROGRAMMING a new remote control (wireless wall switch)
1. Press the learned remote control A learn button 6 times, the motor will move
one time in each direction.
2. Press the new remote control B learn button once, the motor will move one
time in each direction.
3. The new remote control has been successfully learned in.
Note: wireless wall switch is same as this procedure.
DELETING REMOTE CONTROLS
There are two options to delete remote controls:
Option 1:
1. Long press the receiver learn button for 6 seconds.
2. The motor will move twice in each direction.
Now all learned remote controls have been deleted.
Option 2:
1. Press the remote control Learn button 3 times
2. Press the remote control UP button once
3. The motor will move twice in each direction.
Now all learned remote controls have been deleted.
Note: An individual remote control cannot be deleted.
N L L E
M
Lern button
CABLE 1 POWER LINE 230V
• cable colouring YELLOW / GREEN = earth
• cable colouring BLUE = neutral (zero conductor)
• cable colouring BROWN = phase (230Volt)
CABLE 2 CONNECTION TO DRIVE
• cable colouring YELLOW/GREEN = earth
• cable colouring BLUE = neutral (zero conductor)
• cable colouring BROWN = phase (230 volt) DOWN direction
• cable colouring BLACK = phase (230 volt) UP direction
Technical Data
Input Voltage
Max. power
Frequency
Code
Receiver memory
Degree of protection
Temperature
Dimension
THERE ARE 2 OPTIONS TO CHANGE MOVEMENT DIRECTION
Option 1:
1. Press the remote control LEARN button 3 times
2. Press the remote control DOWN button once, the motor will move one time in
each direction.
3. The motor operating direction has been successfully changed.
Option 2:
Swap the BROWN / BLACK cables leading from the box to the motor.
DEFAULT SETTINGS
Deleting remote controls automatically restores the default settings.
The packaging must be disposed of in the local recyclable containers.
According to the European Directive 2002/96/EC on waste electrical
equipment, this device must be properly disposed of, after usage in order
to ensure a recycling of the materials used. Old accumulators and batte-
ries may not be disposed of in the household waste, since they contain pollutants
and must be properly disposed of in municipal collection points or in the containers
of the dealer provided. Country-specific regulations must be observed.
Hereby, Chamberlain GmbH declares that the radio equipment type RRX1 is
in compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
https://www.chamberlain.de/Chamberlain/media/Chamberlain/CE/114ADoC-RRX1-D-2020.pdf
7
230 VAC 50Hz
< = 500W
433.92MHz
Rolling Code
60
IP65
-10°C - +55°C
113*46*23mm
