Level 4 / Maximum Values Loop:
1) Maximum power
alternating with date
and time
5) Maximum temperature
difference
alternating with date
and time
Level 5 / Parametrizing Loop:
1) Parametrizing
„unit of energy"
8.1 Parametrizing loop
a) The following characteristics of the meters can be set on location, only once, by pushing the button or alternatively using
suitable configuration software:
- Unit of energy (kWh; MWh; GJ; MMBTU; Gcal)
- Installation point (inlet flow; outlet flow).
These parametrizing options are only available when the amount of energy is still <= 10 kWh. Make sure that these
characteristics are set as needed before starting up the system.

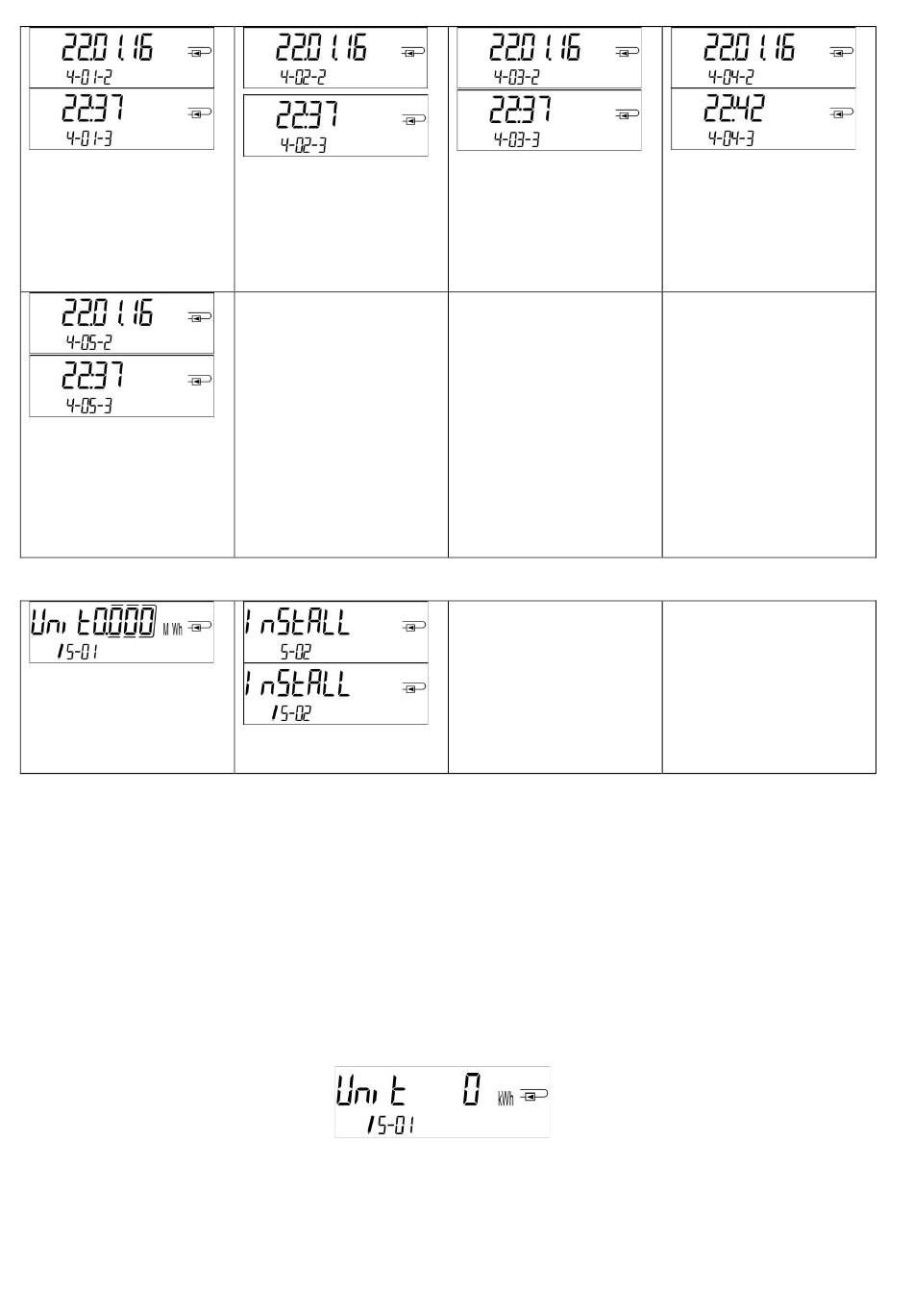

Setup by pushing the button: In order to start the editing mode for parametrizing you must select the respective item in the
parametrizing loop and then push the button once again for 2-3 seconds. As an aid, after 2 seconds the „editing pen" will be
displayed bottom left in the LCD (see below picture). As soon as it appears you have to let go of the button. Then the current
display will start blinking.
By pressing the push-button briefly you can switch to the next option. By pressing the push-button longer the currently
displayed option will be set. If no option is chosen there will be no change and as soon as the LCD goes out the edit mode will
end automatically.
Page 91 of 108 Article no.: 1080619046
2) Maximum flow
alternating with date
and time
2) Parametrizing
„installation point"
3) Maximum inlet flow
temperature
alternating with date
and time
2020_07_27 Subject to technical change! Errors excepted.
4) Maximum outlet flow
temperature
alternating with date
and time
