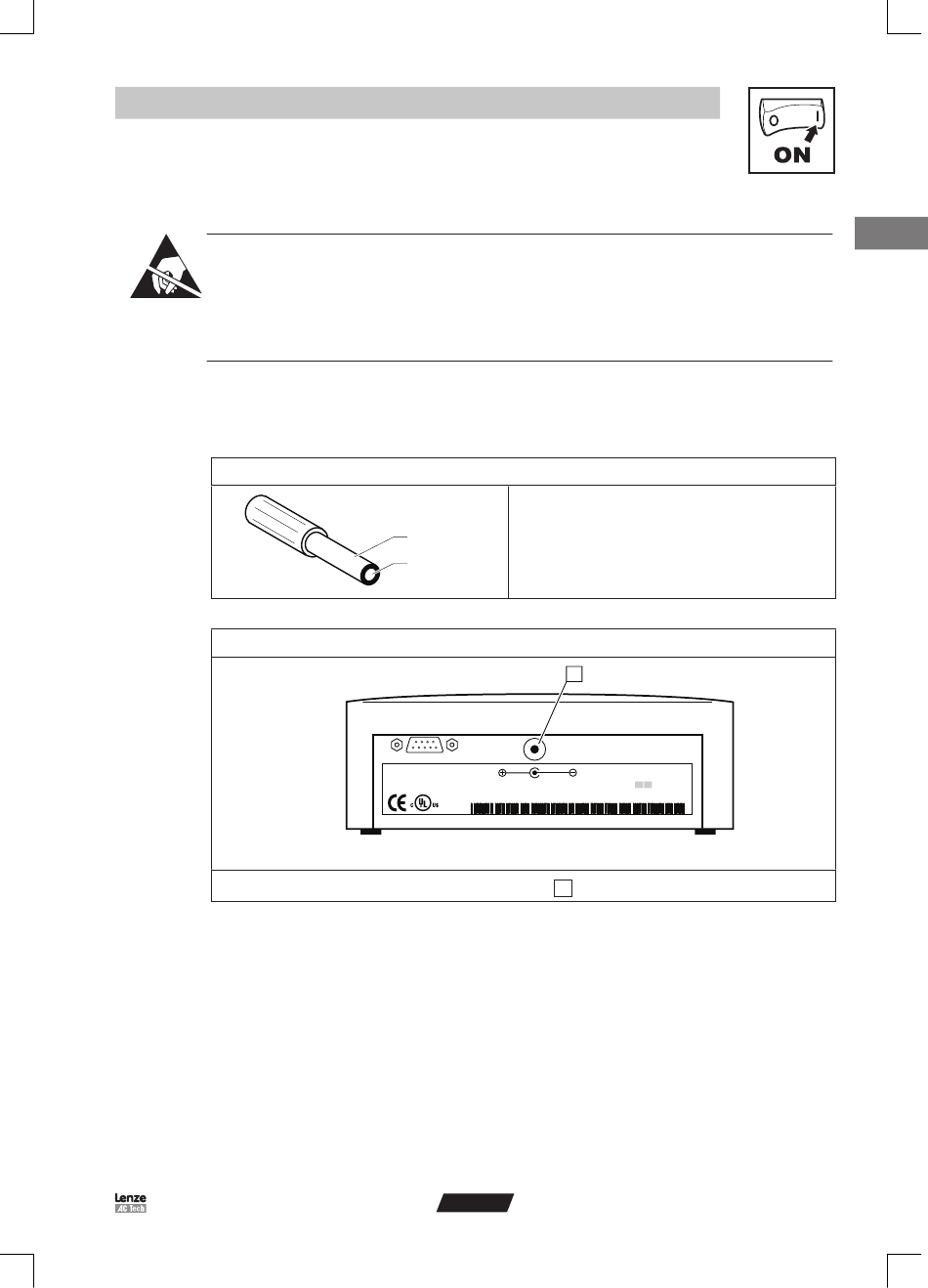

3.3 Operation with external power supply
Stop!
• Avoid electrostatic discharges (ESD) at the connector for the voltage supply. EPM programmer malfunction
may occur.
• Take appropriate measures to avoid electrostatic conditions.
• Occasionally occurring malfunctions can normally be remedied by switching the EPM Programmer off and then
on again.
It is also possible to operate the EPM programmer with an external power supply.
Power supply output data:
• Output voltage: 6 VDC, stabilized
• Output current: 300 mA
Power supply connector plug details
Connect the power supply unit
Plug the extra-low voltage plug of the power supply into the A connector at the back of the EPM Programmer
Commissioning
For connections to the EPM programmer the power supply
unit requires an extra-low voltage plug with the following
dimensions: 2.1 × 5.5 × 9.5 mm.
+6 VDC
–
epm005
L
Type EEPM1RA
Made in USA
6VDC 150mA min
EPM Programmer
Power Supply
FRIWO 7207 06 15 0791 MPP15)
L STED
IND
CONT EQ
5D81
ENGLISH
A
For deta led nformation refer
to nstruction manual EP01x
EEMP1RA 1A 10
xxxxx xx xx
epm006
