Connecting
3.4 Programming the Transmitter

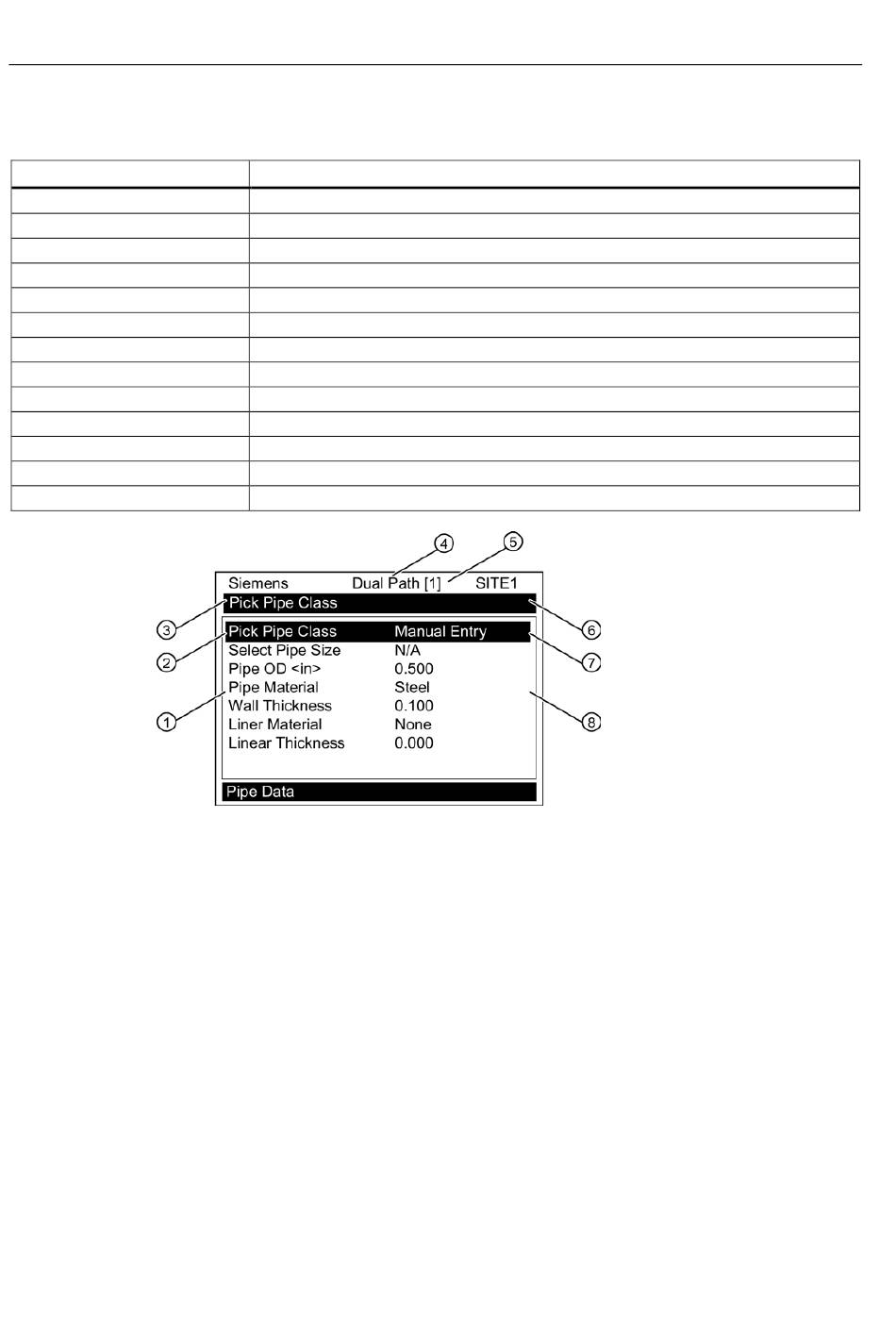

Table 3- 1 Keypad Function Chart
Keys
MENU
ENTER
Left / Right Arrows
Up / Down Arrows
CLR
Numbers 0 - 9
Decimal Point
Math Operators
"F" Keys 1, 2, and 3
F4
CTRL and ALT
DATALOG
Plus and Minus [+ / -]
①
②
③
④
Figure 3-5
30
Press to activate the Installation Menu.
Store numeric data, select from option lists, etc.
Menu navigation keys move cursor.
Same as <Left> and <Right> arrows. Scrolls option lists and graphic display screen.
Erases data or selects list options.
Use to type numeric data.
Use for decimal points in numeric data.
4-function math operations in numeric entry cells.
Used to start/stop/reset Totalizer.
Caution: used during power up for system reset.
Used as shift keys for alternative key functions.
Triggers immediate Datalogger report.
Changes the sign of numeric data.
Menu Cell Data (left-hand column)
Highlighted Menu Cell
Menu Prompt Line (Reverse Video)
Current Selected Meter Type
Typical Installation Menu Screen
Description
⑤
Current Selected Measurement Channel
⑥
Site Name Identified
⑦
Highlighted Data
⑧
Menu Cell Data (right-hand column)
FUS1010 IP65 NEMA 4X & IP66 NEMA 7 Quick Start
Operating Instructions, 07/2014, A5E03086486-AD
