RT3422 Tapping Tool

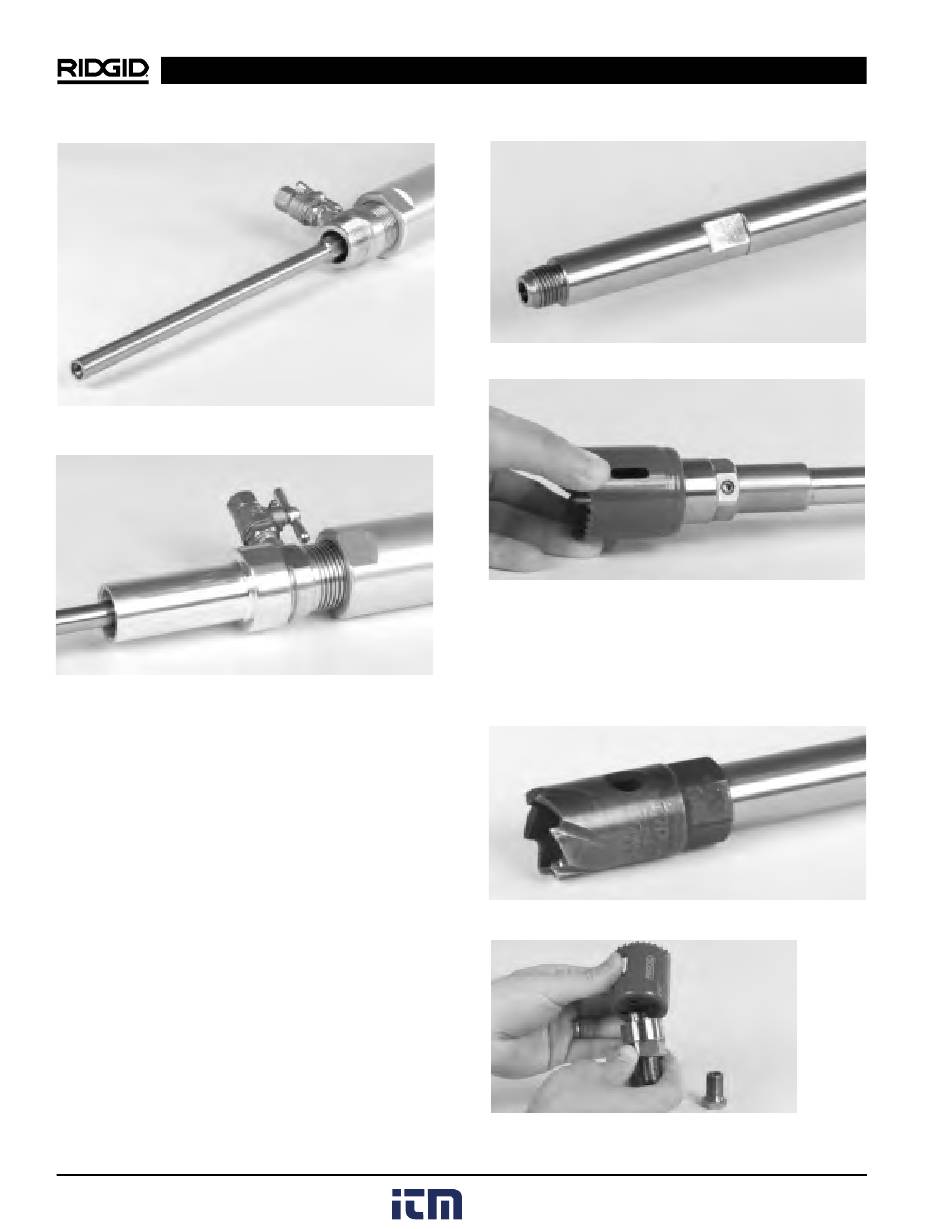

Figure 1 – Installation of extension
Figure 2 – Installation of valve adapter
a) Having ensured that the tool is in the shortest, col-
lapsed, position and having selected the proper size
extension, hold the spindle by the flats at the end and
screw the extension into the end of the spindle. This
only has to be hand tight as the threads will be tight-
ened by the operation of the tool (Figure 1).
b) Inspect the "o-ring" seal in the valve adapter (replace
if damaged) and holding the bronze feed screw by the
flats, assemble the valve adapter onto the bronze
feed screw. This should be done by hand as the op-
erator will feel first the seal engaging and then feel the
adapter reach an abrupt stop as the bronze feed
screw "bottoms out" in the valve adapter (Figure 2).
c) Select the cutter to be used for this particular opera-
tion from the chart on the next page. Note that the pilot
drill and hole saw adapter may not be required de-
pending on the actual cutter selected. If the selected
cutter requires a hole saw adapter, screw it into the
end of the extension. CI/DI and PVC cutters do not re-
quire use of hole saw arbor. As before, this only has
to be hand tight (Figures 3 and 3a).
1.800.561.8187
6
Figure 3 – Installation of small hole saw adapter
Figure 3a – Installation of large hole saw adapter
d) Inspect the selected cutter to be used for this partic-
Figure 4 – Installation of cutter on small hole saw arbor
Figure 4a – Installation of cutter on large hole saw arbor
Ridge Tool Company
www. .com
ular operation to ensure that it is in good working
order and screw it into the hole saw arbor if present or
directly into the extension as required. As before,
this only has to be hand tight (Figures 4 and 4a).
