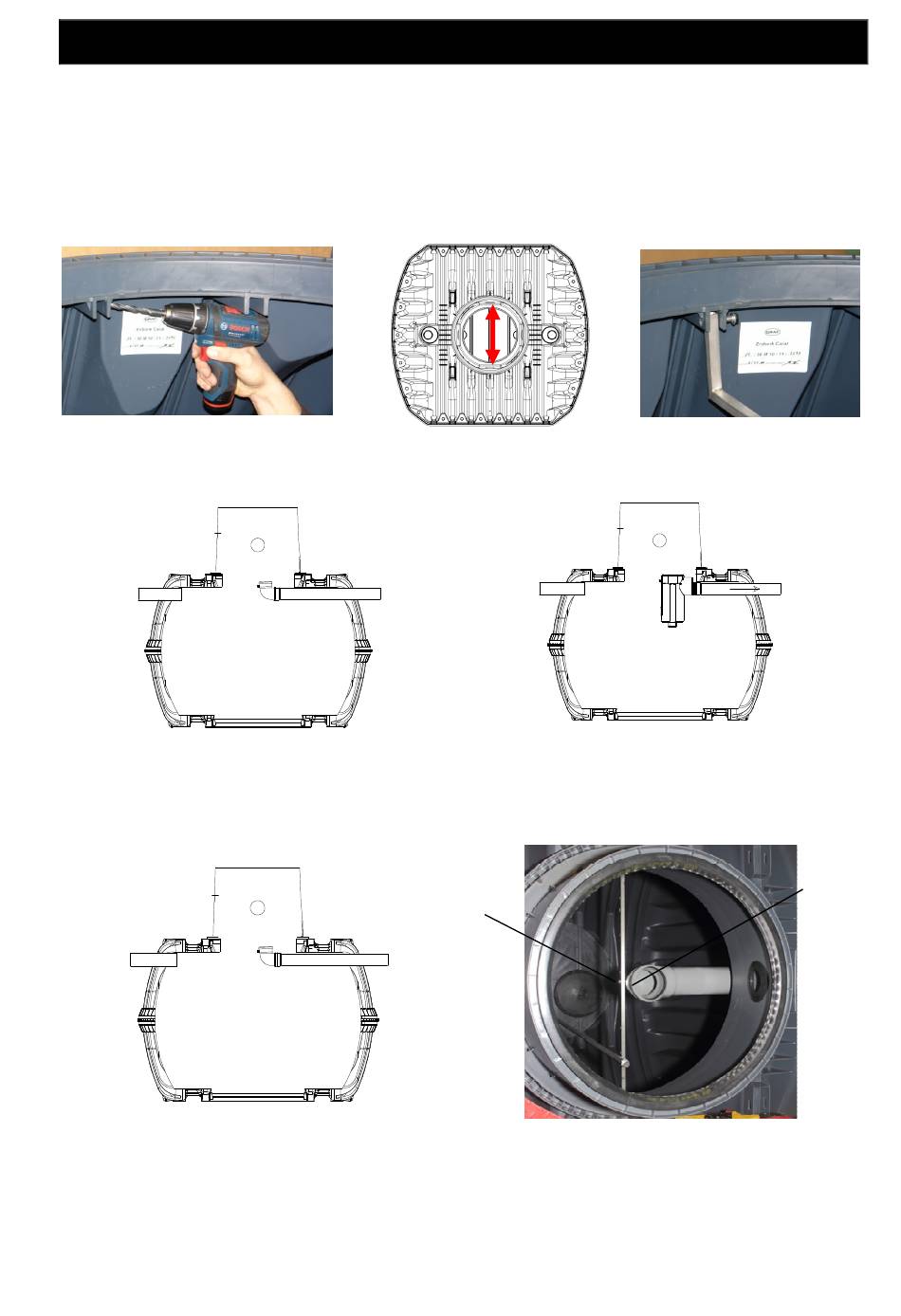

5.4 Installing the crossbar
To fix the crossbar in the tank, holes are drilled through the opposing ribs in the access area using an 8
mm drill. The correct separation distance can be marked out with the aid of the crossbar.
The crossbar is then fixed into these holes using the M8 screws (2x M8x45), nuts (2x) and washers (4x).
The crossbar is then used to receive the holding plate from section 5.2.
5.5

Outlet pipe

Outlet pipe without sampler
When assembling the drain pipe, there are two options: with or without optional sampler.
5.5.1 Outlet pipe without sampler
Pipe diameter
<= 50 inhabitants: DN 110
>= 60 inhabitants: DN 160
The outlet pipe is pushed with the pointed end
foremost through the outlet seal from the inside to
the outside. A 90° elbow is attached to the outlet
pipe.
5. Installation of the setting-up kit
M8x30
screws
The 90° elbow is secured in place through an
8.5 mm hole drilled through it and fixed to the
crossbar using screws.
49 / 148
Outlet pipe with sampler
8.5 mm
hole
