STEP 17
12
Pole Cap (x6)
Hexagon hole
Regular hole
STEP 18
14
M5x50mm Bolt (x6)

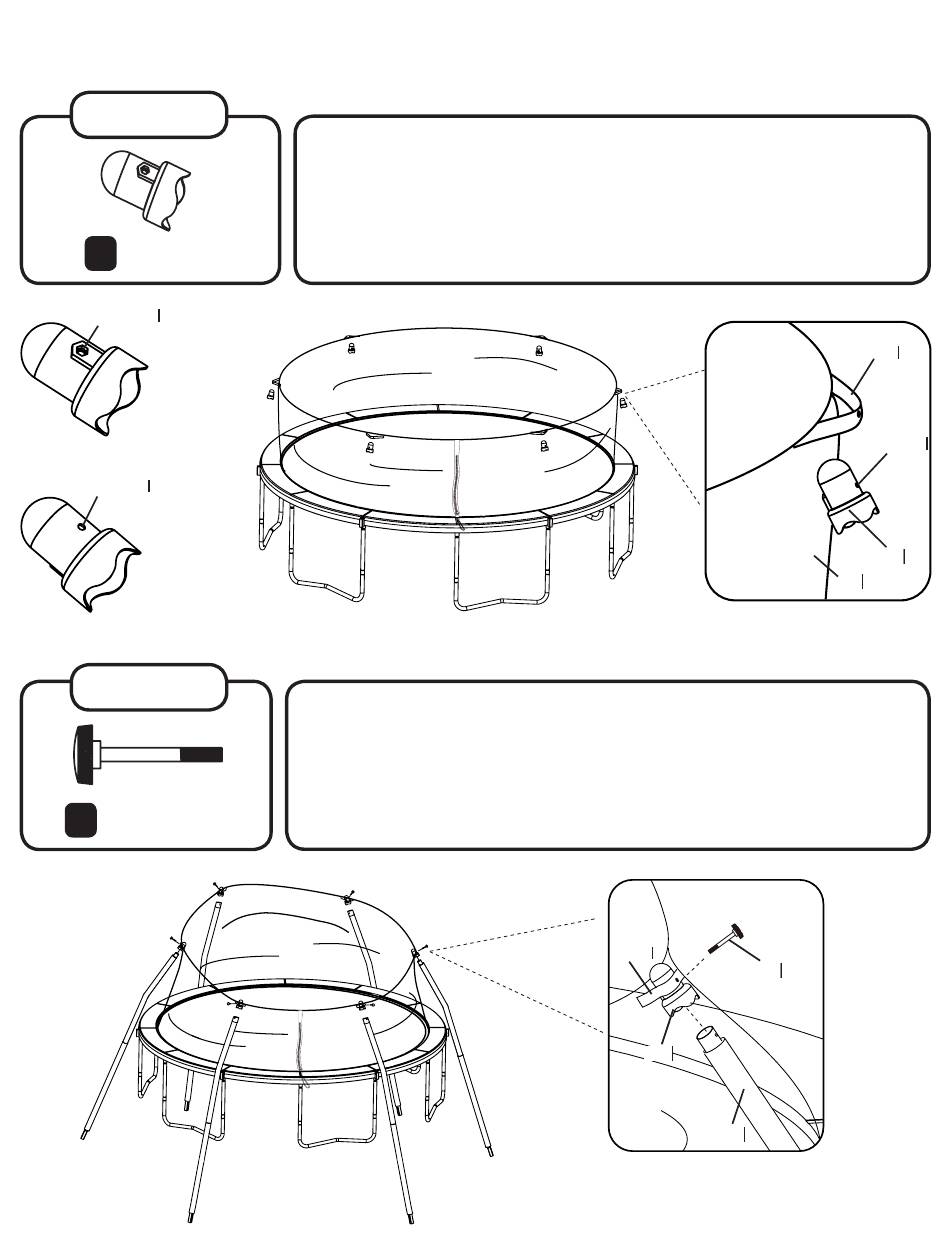

Important: The pole cap (12) has two sides; one with a hexagon hole, and
one with a regular hole.
Insert the pole cap into one strap ring found on the top of the enclosure
net. Make sure the hexagon hole is facing the net, and the regular hole is
facing you.
Next insert a curved tube (10) into the pole cap (12). Make sure the bent side
of the enclosure poles are facing towards the center of the trampoline. Make
sure the holes on the curved tube, pole cap, and strap ring are all aligned.
Then insert a M5x50mm bolt (14) to secure in place. Important: Make sure
the bolt goes into the round hole (not the hexagon hole) or you could break
the pole cap! Repeat steps 17-18 to assemble the remaining pole caps.
15
Strap
(14)
(12)
(10)
Strap
Regular hole
(12)
(7)
