1.
Using a flat blade screw driver, loosen the two flathead
screws to allow rotation of the receptacle.
2.
Insert screwdriver into center slot and rotate receptacle
until arrow points north or desired direction.
3.
Retighten screws.
4.
Insert the photoelectric control (or shorting cap) into
receptacle and twist into locked position.
The photocontrol (not included) must contain a soft,
N
otee:
resilient gasket fastened to the bottom surface to
assure a proper weather seal between the control
and the receptacle.
Wire Guard (Figure 5.)
Tools Required
Phillips screwdriver
1.
Loosen and remove the existing (4) 10-24 Philips head
screws on the face of the fixture and retain for future
reference.
2.
Align wire guard on top of lens clips matching the four
existing holes. See Figure 5.
3.
Retighten (4) 10-24 Philips head screws from step 1 to
the face of the fixture.
4.
To remove wire guard follow steps 1-3 in reverse order.
Vandal Shield (Figure 6.)
Tools Required
Phillips screwdriver
1.
Loosen and remove the existing (4) 10-24 Philips head
screws on the face of the fixture.
2.
Align (4) 7/8" spacers with existing holes.
3.
Use (4) 10-24 x 1-1/2" screws to secure vandal shield
on top of fixture. See Figure 6.
4.
To remove vandal shield follow steps 1-3 in reverse
order.
Visor (Figure 7.)
Tools Required
Phillips screwdriver
1.
Loosen and remove the existing (4) 10-24 Philips head
screws on the face of the fixture and retain for future
reference.
2.
Align visor on top of lens clips matching the 4 existing
holes. See Figure 7 .
3.
Retighten (4) 10-24 Philips head screws from step 2 to
the face of the fixture.
4.
To remove visor follow steps 1-3 in reverse order.

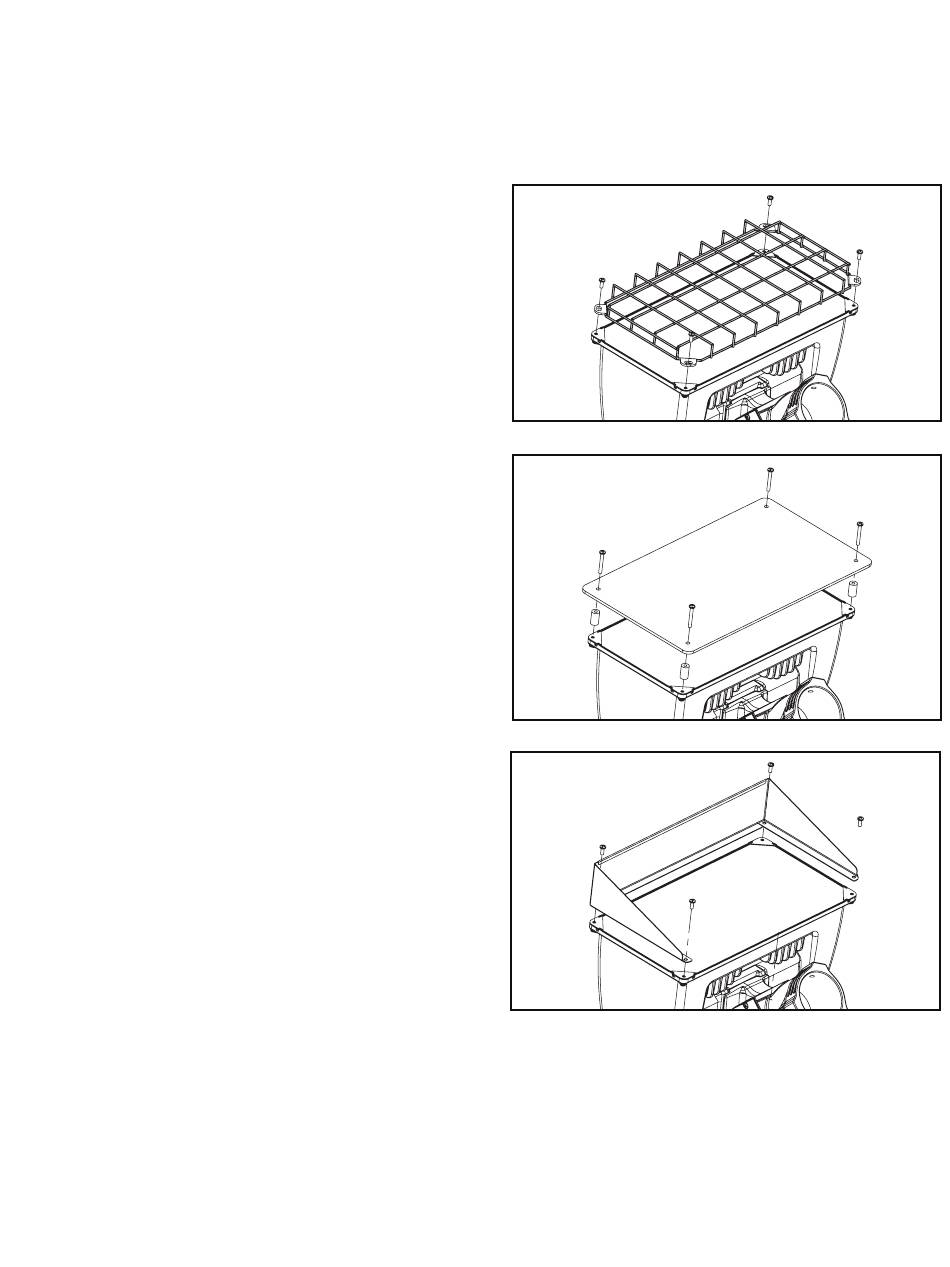

Figure 5.
Figure 6.
Figure 7.
Installation Instructions – Night Falcon/UFLD
ADH142698
