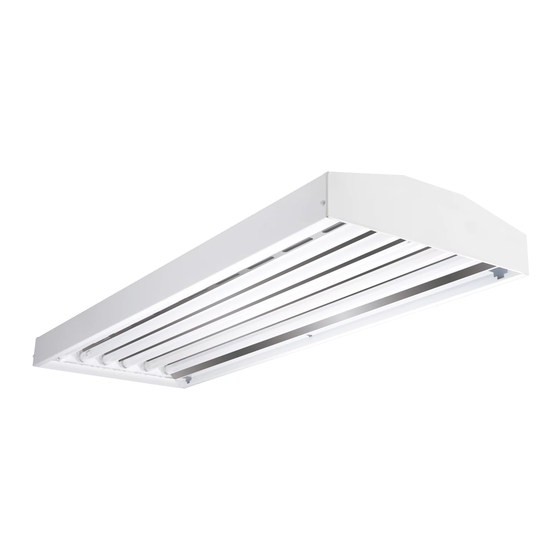

Eaton Cooper Lighting Metalux F-BAY HB Instructions D'installation

Publicité

Liens rapides

ADF140669
Installation Instructions – F-BAY HB/HBI/HBE/HBL/I5/I8 Single
Point Mounting Kits
Instructions d'installation – Ensembles de montage F-BAY HB/HBI/
HBE/HBL/I5/I8 à point unique
Instrucciones de instalación de los kits de montaje de ramal único
para las luminarias F-BAY HB/HBI/HBE/HBL/I5/I8
IMPORTANT: Read carefully before installing fixture. Retain
for future reference.
caution
Edges May Cut. Handle with care.
INSTALLATION
1.
Fasten hook (or other accessory) to retainer. Tighten
set screw according to orientation required (Figure 1.).
2.
Lock one side first into slot (Figure 2.).
3.
Lock other side into slot (Figure 3.).
Figure 1.
Figure 4.
OTHER ACCESSORIES
Fixture Loop
Retrofit Hanger
Risk of burn. Disconnect power and allow fixture to cool
before changing bulb or handling fixture.
risk of Fire and Electric Shock. if not qualified, consult
an electrician.
4.
Fasten hanger with carriage bolt and nut provided
(Figure 4.).
5.
If there is a need to create an enclosure, install the
covers provided in the kit (Figure 5.).
6.
Install V-Hanger from at least one end of fixture
against the structure (Figure 6.).
Figure 2.
Figure 5.
Brand Logo
reversed out of
black
INS #
INS #
caution
warning
Figure 3.
Figure 6.
