Installation Instructions – Night Falcon/UFLD
INSTALLATION

Tools Required

Ratchet, 3/4" socket, 3/8" square nut driver, 9/16" wrench,
and #2 Philips screwdriver.
Trunnion Mounting (Figure 1.)
1. Mount luminaire to surface using the hole pattern
provided on the trunnion bracket.
2. Loosen but do not remove (2) center bolts and (1) set
screw.
3. Rotate luminaire to desired aiming position and tighten
center bolts to 10ft-lbs.
4. Tighten set screw to 30 in-lbs.
5. Refer to wiring diagrams for power connection.
See Figure 3.
Slipfitter Mounting (Figure 2.)
1. Fixture is pre-set at 45 degree tilt. If angle adjustment
is required please proceed to step 2, if not skip to step
5.
2. Remove (2) cover plate screws and cover plate with #2
Philips screwdriver.
3. To change luminaire tilt angle, loosen center bolt, rotate
fixture to the desired angle, and tighten center bolt to
30 ft-lbs.
4. Replace cover plate and tighten cover plate screws with
#2 Philips screwdriver to 15 in-lbs.
5. Make wiring connections per wiring diagram and place
connections down into pole or mounting bracket. See
Figure 3.
6. Loosen (3) set screws and slide the slipfitter onto pole
or mounting bracket.
7 . Position luminaire into the desired direction; and tighten
(3) set screws to 10 ft-lbs.
8. Tighten lock nuts to 15 ft-lbs.
Photocontrol – If Equipped (Figure 4.)
The orientation procedure is only required for
N otee:
photocontrols which specifically require the cell to
be aimed north. Otherwise pre-selected factory
orientation will function properly. Follow the
directions recommended by the photocontrol supplier
for proximity to light sources. Lighted signs, building
surface reflection, floodlights, tree branches, etc.
may affect final position of the photocontrol.
2

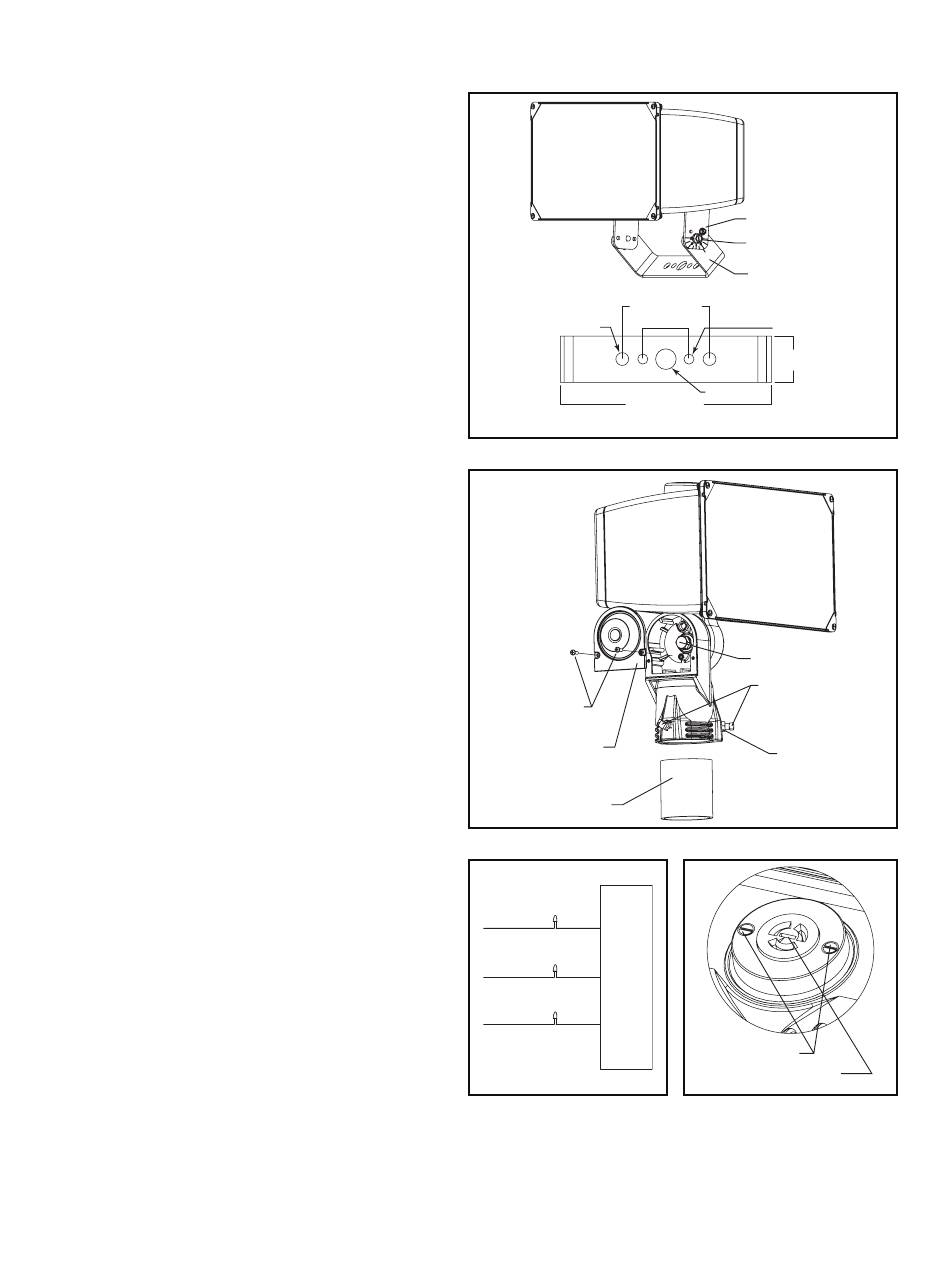

Figure 1.
