Installation Instructions
To Install Thermostat
IMPORTANT: Thermostat installation must conform to
local and national building and electrical codes and
ordinances.
NOTE: Mount the thermostat about five feet above the
floor. Do not mount the thermostat on an outside wall, in
direct sunlight, behind a door or in an area affected by a
vent or duct.
1. Turn off power to the heating and cooling system by
removing the fuse or switching off the appropriate circuit
breaker. (120 VAC and 12VDC).
2. Remove the cover from the base by undoing the
two plastic snaps on the bottom of the base. A small
screwdriver or ballpoint pen can be used to gently
depress one snap at a time. (reference the figure
above).
3. Put thermostat base against the wall where you plan
to mount it. Make sure wires will feed through the wire
opening in the base of the thermostat.
4. With the base level, mark the placement of the mounting
holes.
5 Ensure no other wires are affected by the drilling of 1/8"
holes.
6. Using a 1/8" drill bit, drill pilot holes in the locations you
have marked for the wood screws.
8. Align thermostat base with mounting holes and feed the
control wires through the wire opening.
49-5000400 Rev. 1

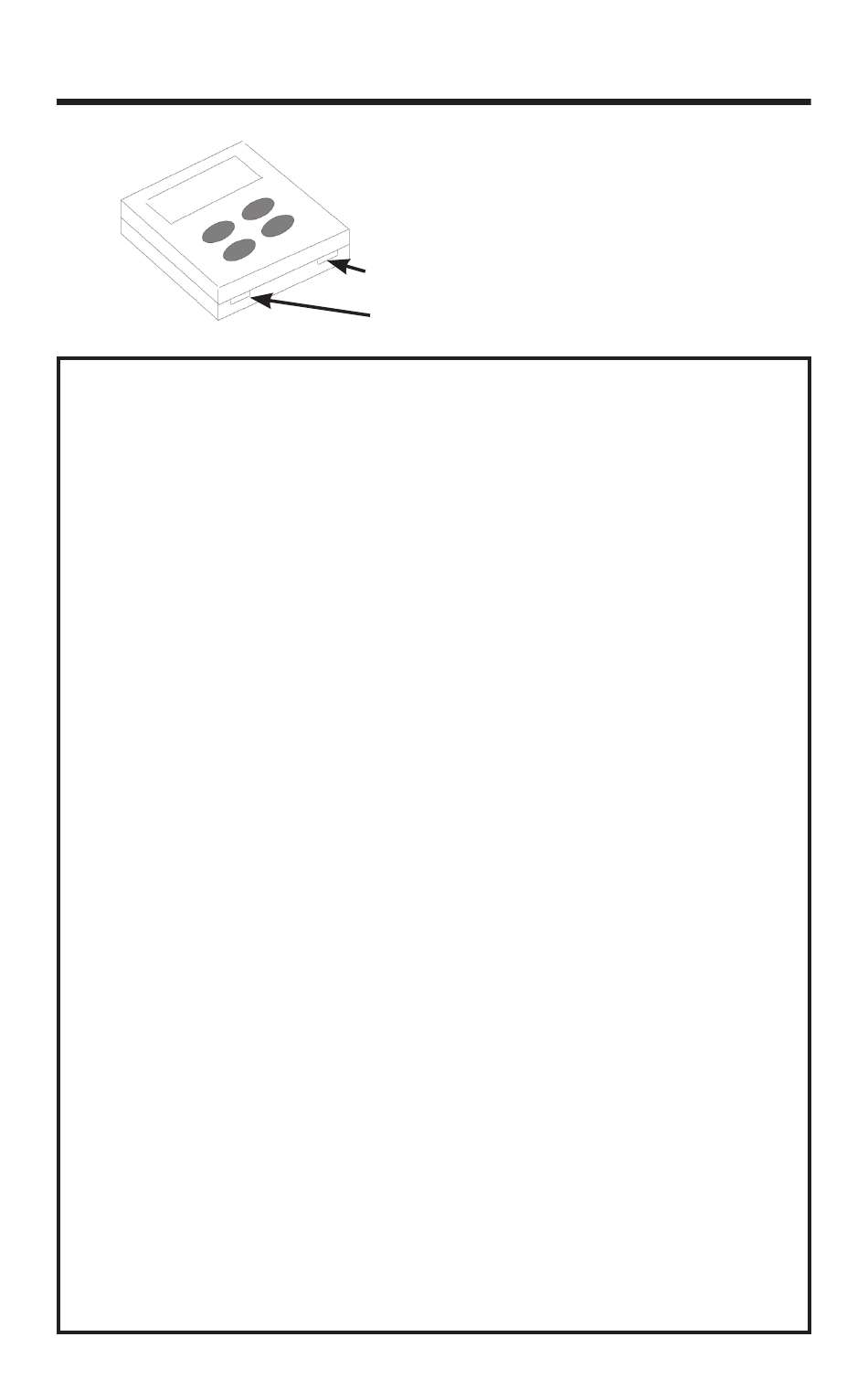

Apply screwdriver or ballpoint pen
here to open thermostat
