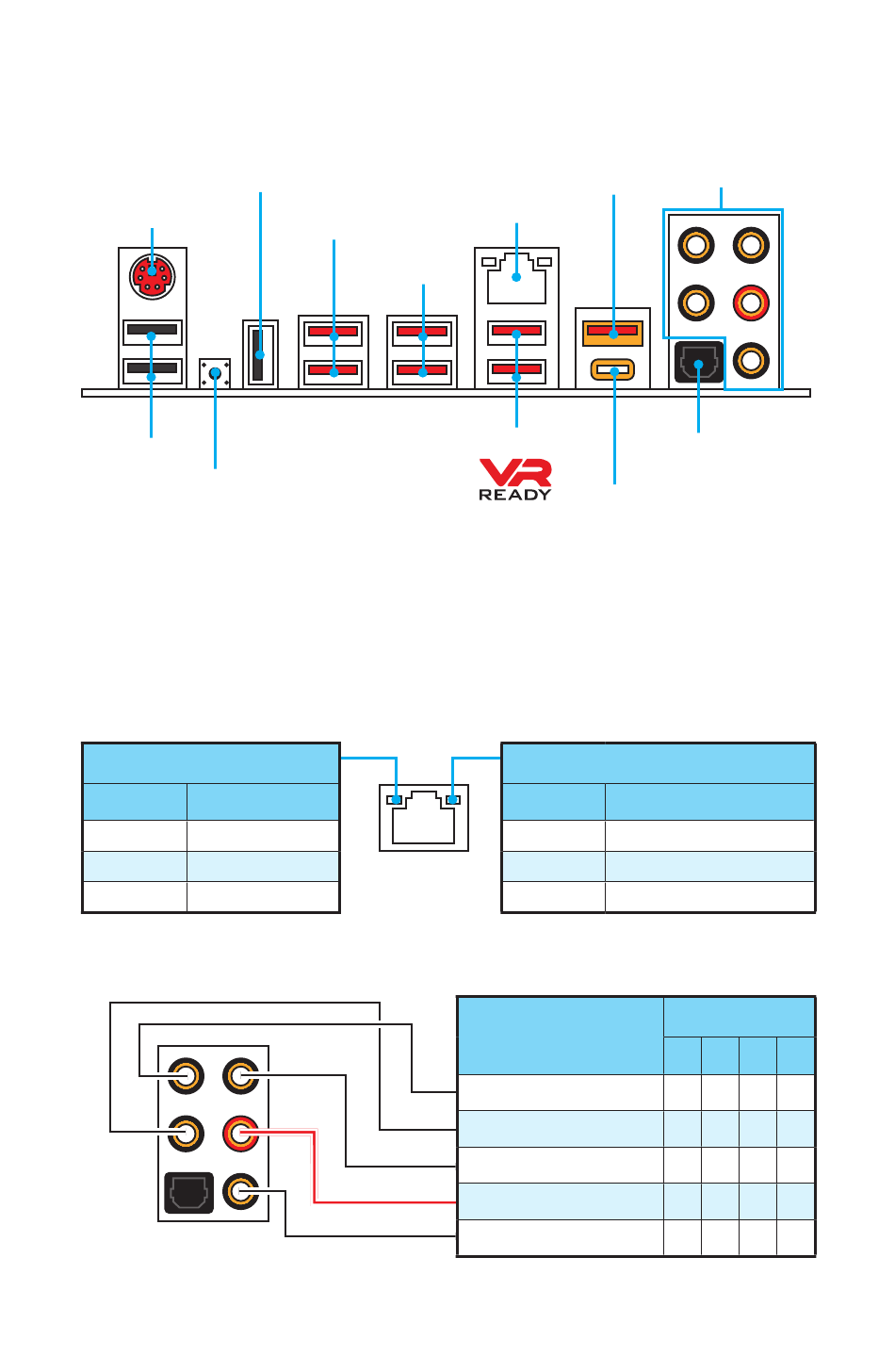

Rear I/O Panel

USB 2.0/
BIOS FLASHBACK+
PS/2
USB 2.0
Clear CMOS
Clear CMOS button - Power off your computer. Press and hold the Clear CMOS
y
button for about 5-10 seconds to reset BIOS to default values.
BIOS FLASHBACK+ port - Please refer to page 38 for Updating BIOS with BIOS
y
FLASHBACK+.

LAN Port LED Status Table

Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity

Audio Ports Configuration

USB 3.1 Gen1
USB 3.1 Gen1
USB 3.1 Gen2
LAN
USB 3.1 Gen1
USB 3.1 Gen2 Type-C
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
Audio Ports
Center/ Subwoofer Out
Rear Speaker Out
Line-In/ Side Speaker Out
Line-Out/ Front Speaker Out
Mic In
(●: connected, Blank: empty)
Audio Ports
Optical S/PDIF-Out
Channel
2 4 6 8
● ●
● ● ●
●
● ● ● ●
