Operation
5.1.2

Clamping a car wheel

Fig. 5.1-4 illustrates clamping a conventional car wheel
using a clamping adaptor on the central bore.
Fig. 5.1-5 illustrates clamping a stud hole located car
wheel or a car wheel without centre bore using a universal
clamping adaptor.
The centring cones for clamping car wheels are not part
of the standard equipment. These cones as well as
various special clamping and centring means are
available on request.
The range and applications of the clamping means are
described in separate leaflets.

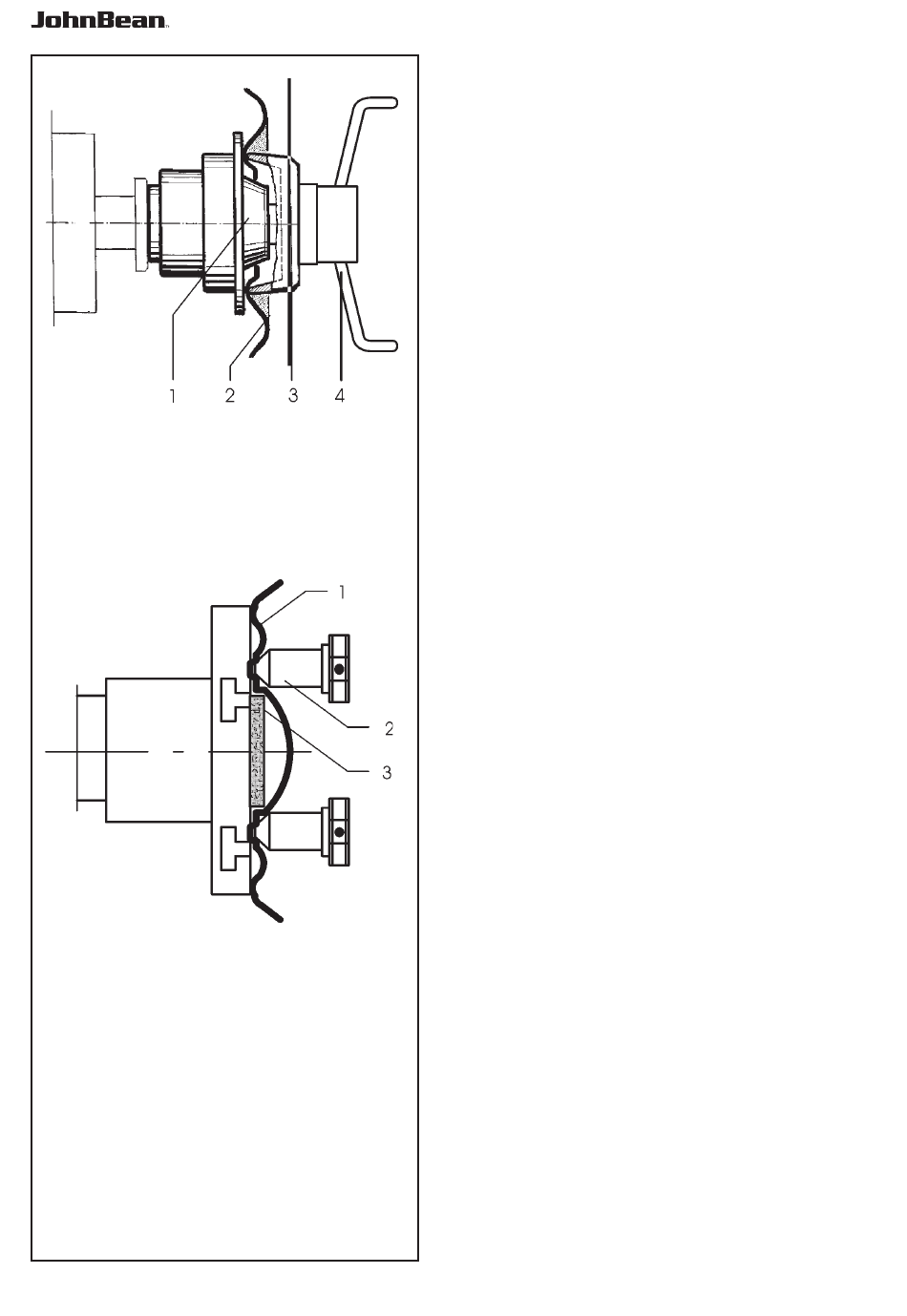

Fig. 5.1-4 Clamping adaptor to clamp centre bore located
car wheels
1 Cone for car wheels
2 Rim
3 Clamping head with clamping nut (quick–clamping
nut)
4 Wing nut for clamping
Fig. 5.1-5 Universal clamping adaptor for clamping stud
hole located wheels or wheels with closed
rim. This clamping adaptor is also capable of
clamping centre bore located wheels when
suitable centring rings are used.
1 Rim
2 Quick–clamping nut
3 Centring ring for centre bore located car wheels
(optional extra)
