Ø80
X+20
116
65*
OPENING
Ø80
116
65*
min
90

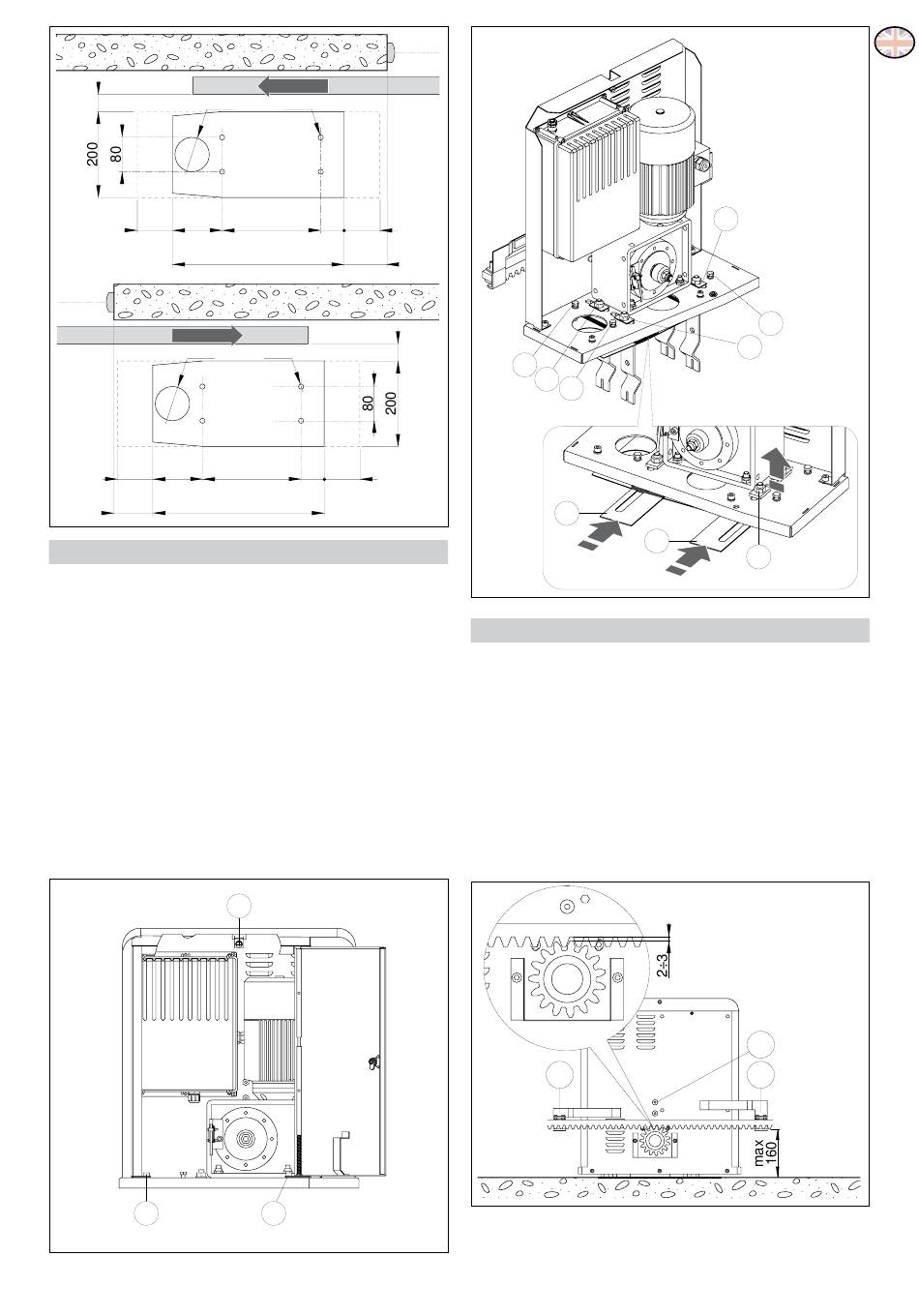

3.3 Geared motor installation
- Open the gear motor removable cover. Loosen the three
screws [A] (the upper screw must not be completely
loosened) and remove the case.
- Remove the nuts used to fasten the anchoring brackets.
- Position the gearmotor onto the base plate.
- Gearmotor adjustments
Horizontally, by having it slide along the gear motor base
slot (approx. 20 mm).
Vertically, by means of the 4 level screws [B] and by insert-
ing the provided shims [C].
Note: once the level shims have been inserted [C], loosen
the screws[B], the motor shall weigh only on the shims [C].
Note: while adjusting vertically, keep the motor slightly
raised above the base plate so as to allow enough space to
secure the rack and to make any subsequent adjustments,
if necessary.
A
TCEI-M8x16
OPENING
Ø12
230 54 65*
min
400 90
Ø12 X+20
230 54 65*
400
A
TC-M8x20
A
TCEI-M8x16
B
D
B
C

3.4 Rack installation

Warning: use a module 6 rack.
- Release the gearmotor and set the gate in the open po-
sition. Place the rack on pinion [14] and move the gate
manually to secure the rack along its full length.
- Once the rack has been secured, vertically adjust the
geared motor so as to have a gap of 2 to 3 mm between
the pinion and the rack with screws [B].
Warning: the motor shall weigh only on the shims [C].
- Firmly secure the gearmotor with the nuts [D].
- Slightly lubricate the rack and pinion after assembly.
Manually check that the gate slides evenly and without
friction.
17
11
D
B
D
C
D
18
17
CROSS30 - IP1777
