Curved moulding fence
Inserting the curved fence plates
Moulding tool Ø
Ø100-120mm
Up to Ø140mm
The correct setting of the curved fence depends on
the diameter of the moulding tool and the thickness
of the respective workpiece and the desired
moulding depth.

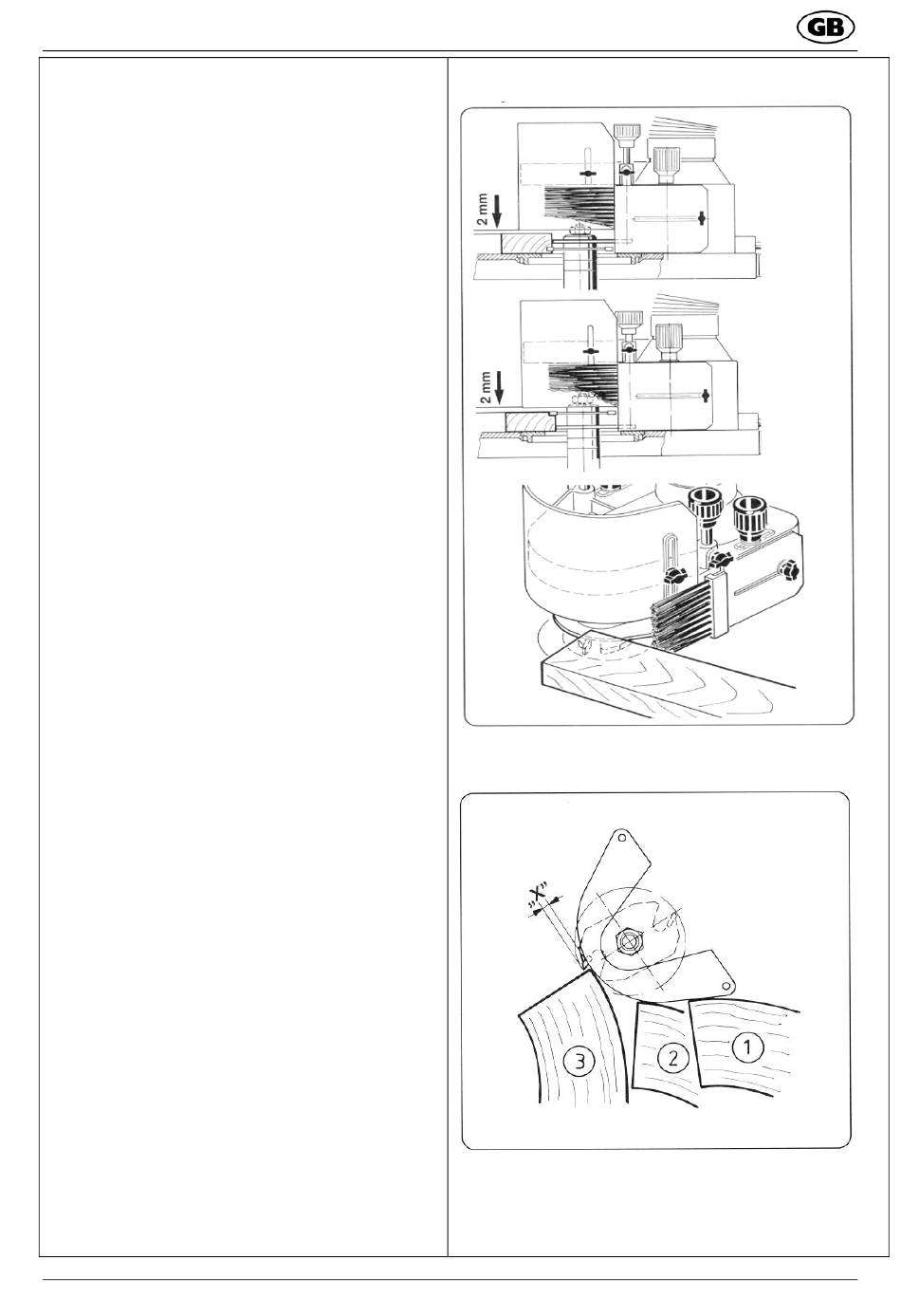

Figure I
Settings
As a general rule, the moulding tool should be in the
lower position whenever possible. The curved fence
plate is positioned above it.
Set the moulding tool to the working height.
-
Set the curved fence plate (R60 or R90) in
-
accordance with the workpiece thickness and
working depth.
- Lower the guard plate to 2mm above the
workpiece.
Align the brushes on both sides of the workpiece
-
so that moulding shavings are brushed away
during work.
Figure J
External radii
To mould external radii, guide the workpiece along
the curved fence plate. The optimum moulding depth
is achieved in position 3 (X).
Illustrations with Supplementary set: 7231 1746
( Accessories )
Page 46
Curved fence plate
R 60mm
R 90mm
Figure I
Figure J
