Measurements

Height
Width
Depth
Empty weight
R-Evolution 9 C C
R-Evolution 9 N C
R-Evolution 9 V C
Height
Width
Depth
Empty weight

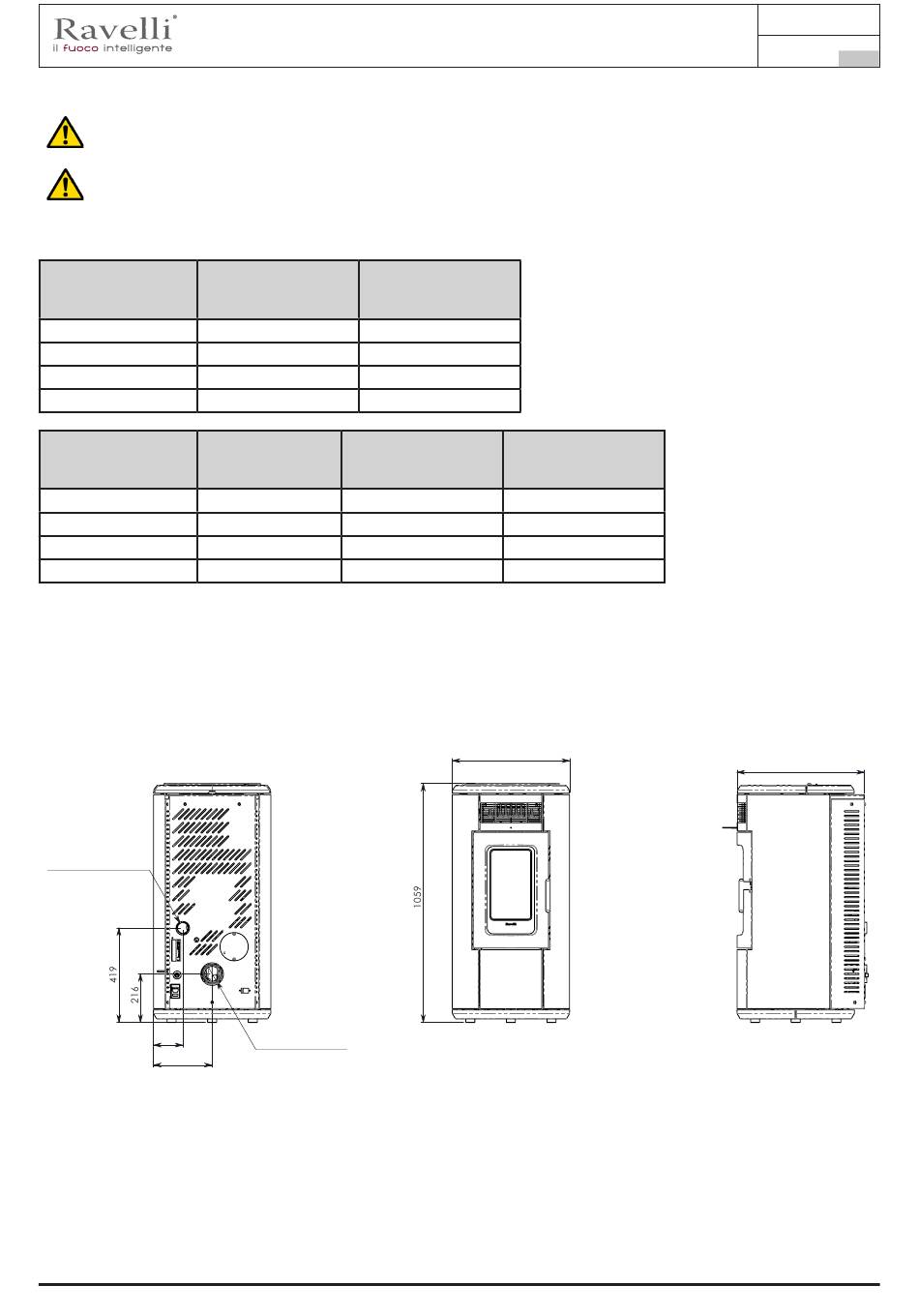

R-EVOLUTION 7 V S- 7 N S technical diagram

Ø50 (AIR INLET)
50 (ENTRATA ARIA)
130
260
The data shown below is provided as a guideline and is not binding, and may change based on what type of pellet is used. Ravelli reserves the right to make any changes
in order to improve product performance.
Use and maintenance manual R-Evolution 7-9
R-Evolution 7 C S

Unit of measurement

R-Evolution 7 N S
R-Evolution 7 V S
1059
520
565
175
R-Evolution 9 C S
R-Evolution 9 N S
R-Evolution 9 V S
1108
520
565
185
Ø80 (SMOKE OUTLET)
80(USCITA FUMI)
mm
mm
mm
kg
Unit of measurement
1108 mm
520 mm
565 mm
180 kg
520
CODICE
053-00-001A-BLK
053-00-001A-BCO
053-00-001A-BDX
053-00-001A-BRZ
TOLLERANZE GENERALI SECONDO LA CLASSE UNI EN 22768-mK
GENERAL TOLERANCES AS PER UNI EN 22768-mK
DENOMINAZIONE
(DENOMINATION)
R-evolution 7 - Ventilata - Lamiera (RAVELLI)
Rev.1 26/03/2018
Page 51
KIT
049-KIT1-BLK R-evolution 7 VS Nera
049-KIT1-BCO R-evolution 7 VS Bianca
049-KIT1-BDX R-evolution 7 VS Bordeaux
049-KIT1-BRZ R-evolution 7 VS Bronzo
MODIFICARE SOLO SU CAD
CAD DRAWNING HANDLING ON CAD SYSTEM ONLY
SCALA
1:10
(SCALE)
MATERIALE
(MATERIAL)
TRATTAM. SUPERFICIALE
DIS.
(DESIGNER)
DATA (DATE)
venerdì 13 gennaio 2017
EN
565
DESCRIZIONE
FORMATO
A3
(SHEET)
CONTR.
R.Aceti
-
(CHECKED)
PESO Kg
234.926
(WEIGHT)
