LoRaWAN SENSORS- Mode d'emploi / User guide version V1.3
2.4. Configuring the LoRaWAN SENSORS unit
our LoRaWAN SENSORS is configured via the combination of switches. The following settings can be changed:
•
Transmission interval
•
Inputs activation (sensors 1 and 2)
•
The type of sensor connected (analogue or digital -On-Off-)
Note : Activation of the sensors and the type of sensors (analogue or digital -On-Off-) can only be done via the switches

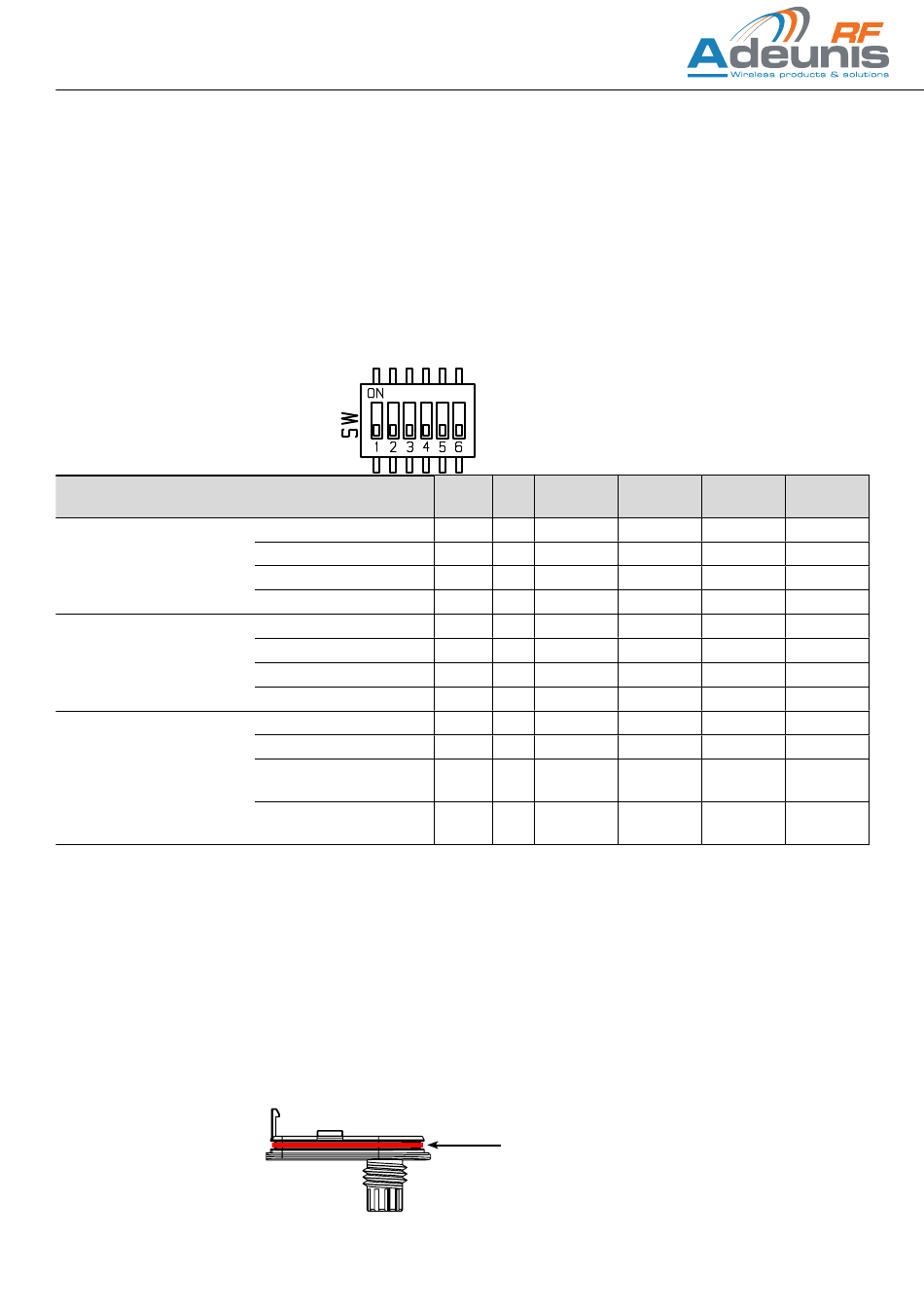

CONFIGURATION TABLE:
Parameter
Transmission period
Activation of sensor inputs
Type of Sensor
NB: Each change in a switch's position is considered by the LoRaWAN Sensors unit to be a changeover to Configuration mode. The product
therefore then automatically returns to Standby position.
If you modify the product's configuration, it will then be mandatory to switch (back) to Operations mode by passing a magnet near the activa-
tion system (cf. Chapter 3.6).
2.5. Closing the casing
Once stages 3.2, 3.3 and 3.4 have been carried out, you can close the casing of the LoRaWAN Sensors unit.
Procedure:
•
Make sure that the seal is properly positioned on the base
Value
12h
30mn
15mn
10mn
Sensors 1&2 inactives
Sensor 1 active
Sensor 2 active
Capteurs 1&2 actives
Sensors 1&2 ANA
Sensors 1&2 Dry Contact
Sensor 1 ANA, Sensor 2 Dry
Contact
Sensor 1 Dry Contact, Sensor
2 ANA
SW3
SW1
SW2
(Sensor 1)
OFF
OFF
OFF
ON
ON
OFF
ON
ON
OFF
ON
OFF
ON
Seal
SW4
SW5
(Sensor 2)
(Sensor 1)
(Sensor 2)
OFF
OFF
ON
ON
OFF
ON
OFF
ON
Page
SW6
OFF
ON
ON
OFF
31
of 39
