MAIN LEVEL
10
Setting the overall volume level. The subwoofer volume level is controlled by adjusting the SUB LEVEL volume control accordingly.
DISPLAY LEDs
11
ON: Lights up when the device is properly connected to the mains and switched on.
SIGNAL: Lights up when the device is receiving an audio signal. The signal is received before the MAIN LEVEL control.
LIMIT: Lights up when the speaker system is being operated in its upper limit range. Brief illumination of the LED is not critical. To protect the
system, any excessive signal level is lowered smoothly by the integrated limiter. If the limiter LED remains lit for longer or permanently, reduce the
volume level. Failure to do so may result in distorted sound reproduction and damage the speaker system.
PROTECT:
1.The LED remains permanently lit in the event of the system overloading or overheating. The amplifiers are then muted automatically. Upon
reaching normal operating conditions, the unit returns to normal operating mode after a few minutes and the LED is extinguished.
2.The LED begins to flash as soon as the system's automatic standby mode is activated.
BLUETOOTH LED
12
®
The mixer of the MAUI5 GO (100) array system is equipped with Bluetooth technology, which means that audio files from another Bluetooth device
(e.g. Smartphone) can be played back on the MAUI5 GO (100) speaker system (maximum distance between the two devices is approx. 10 metres).
If no Bluetooth device is connected to the internal Bluetooth unit, the blue Bluetooth LED doesn't display a signal. During pairing, the LED flashes
rhythmically at a frequency of approximately 3 Hz. If the Bluetooth LED lights up permanently, there is a Bluetooth connection and playback can be
started. The volume is controlled via the MP3/Bluetooth volume control (No 4), or on the playback device.
HOLD TO LINK
13
To pair and connect the internal Bluetooth unit with a Bluetooth device, press and hold the HOLD TO LINK button for approximately 3 seconds until
the Bluetooth LED flashes rhythmically (approx. 3 Hz). Enable Bluetooth on your Bluetooth device and search on the user interface for available
devices. Select "LD MAUI5 GO" and pair your Bluetooth device with the Bluetooth unit.
Playback can now be started. To end the connection, press and hold the HOLD TO LINK button again for about 3 seconds. If the Bluetooth connection
is interrupted (e.g. range is exceeded), the Bluetooth LED goes out. Connection can be restored automatically within approx. 90 seconds (Bluetooth
device back in range). If the 90-second period is exceeded, the Bluetooth module of the MAUI 5 GO (100) speaker system is automatically deactivated.
SYSTEM MONO/STEREO
14
Buttons and indicator lights for mono or stereo operation.
MONO: If you are using a single MAUI5 GO (100), activate the mono preset (press the button until the MONO LED lights up). Any stereo signal present
will now be summed to mono internally. If you are using a second MAUI 5 GO (100) speaker system as a mono extension, connect the line output
(SYSTEM OUTPUT) of the main unit to the line input (INPUT LEFT/MONO) of the expansion unit with a balanced XLR cable.
STEREO: If you are using two MAUI5 GO (100) speaker systems in stereo, activate the stereo preset (press the button until the STEREO LED lights up).
You can control the stereo expansion unit with the line output on the main unit (SYSTEM OUTPUT -> expansion unit RIGHT INPUT).
Examples of cabling and system expansion can be found in this manual under WIRING EXAMPLES.
15

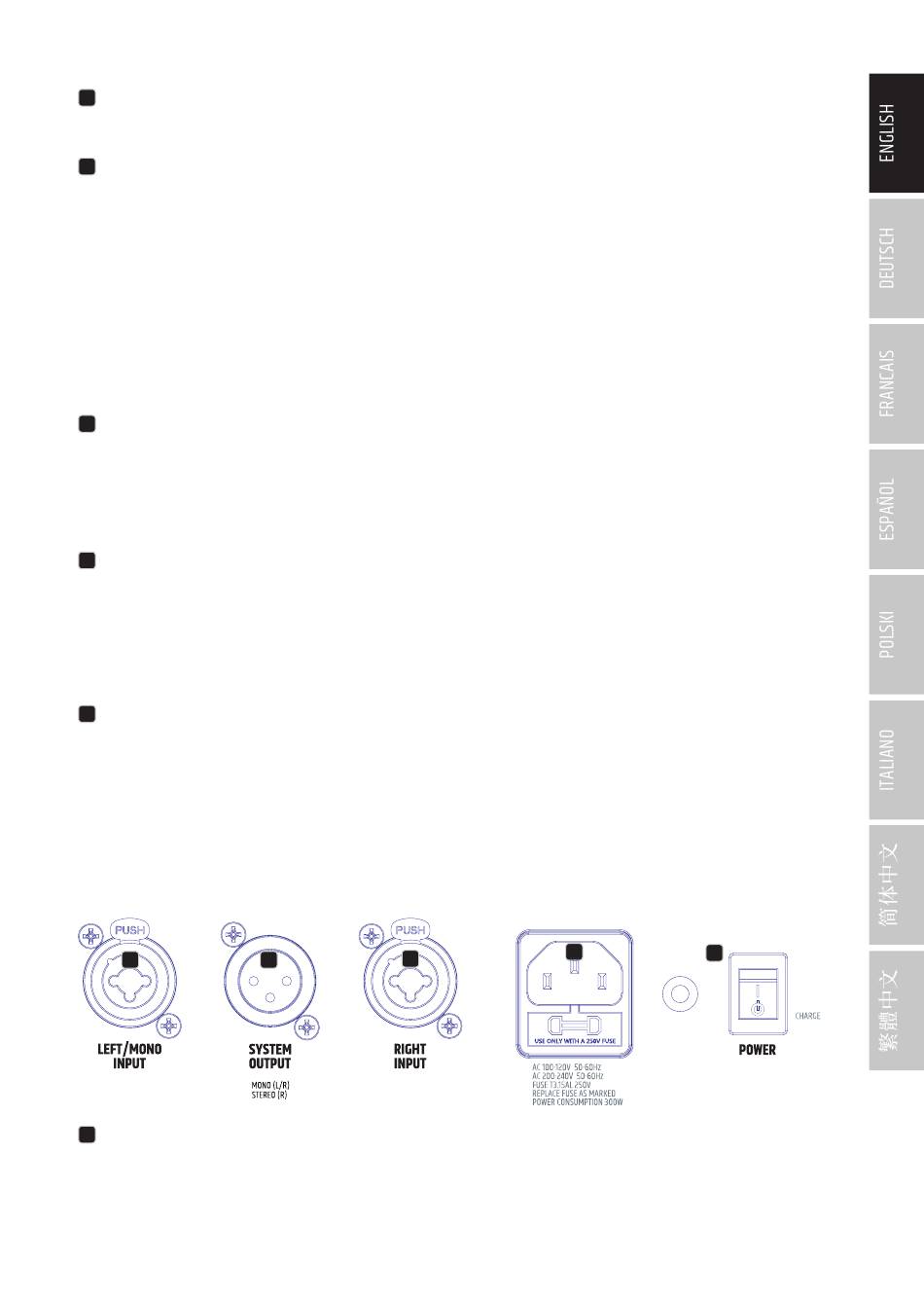

LINE INPUT LEFT/RIGHT
15
Balanced line input with XLR/6.3 mm jack combo sockets (left/right) to connect a playback device (such as a mixer, keyboard). If connecting a mono
signal source, please use the line input LEFT/MONO.
15
16
17
18
9
